Elevator Door Lock Contact Bridge Set

This two‑prong auxiliary door‑lock contact set is used in Schindler, KONE, and Savaria lift systems (including Telecab models). Precisely engineered to restore clean continuity in safety circuits, it’s ideal for replacing worn or unreliable door‑lock contacts.

This contact set ensures the elevator controller sees “door locked” only when fully closed. When contacts weaken or misalign, you often get “door not locked” faults. Installing this contact kit brings dependable operation back to your door‑lock logic.

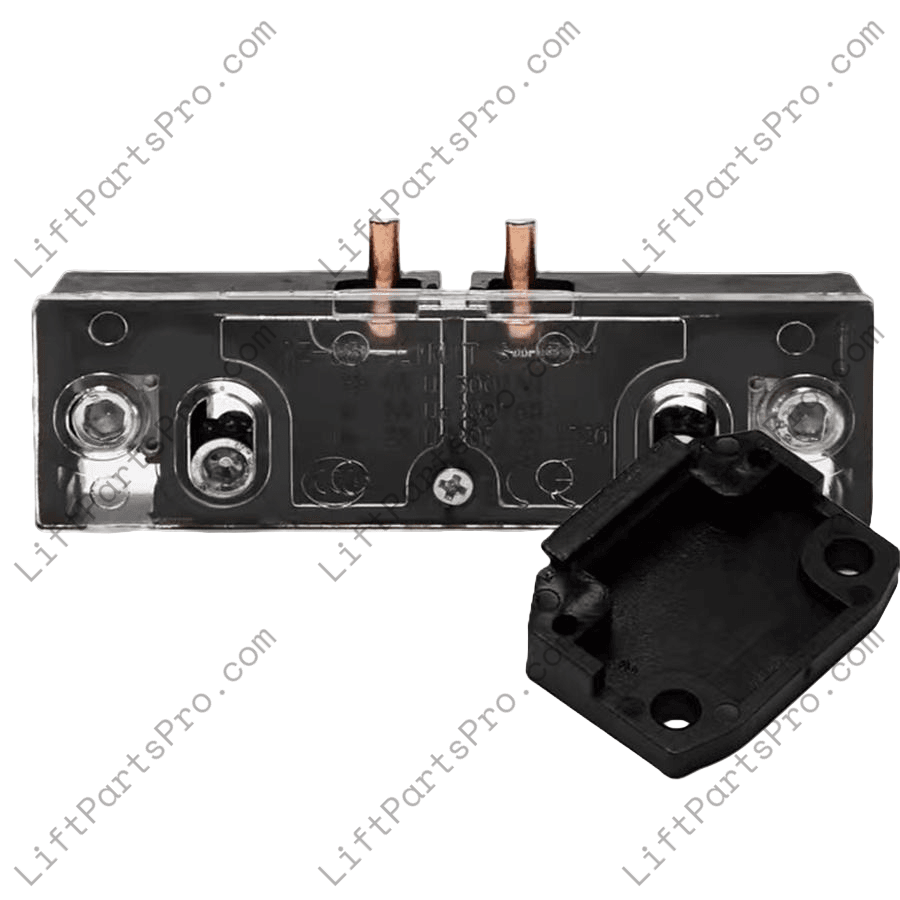

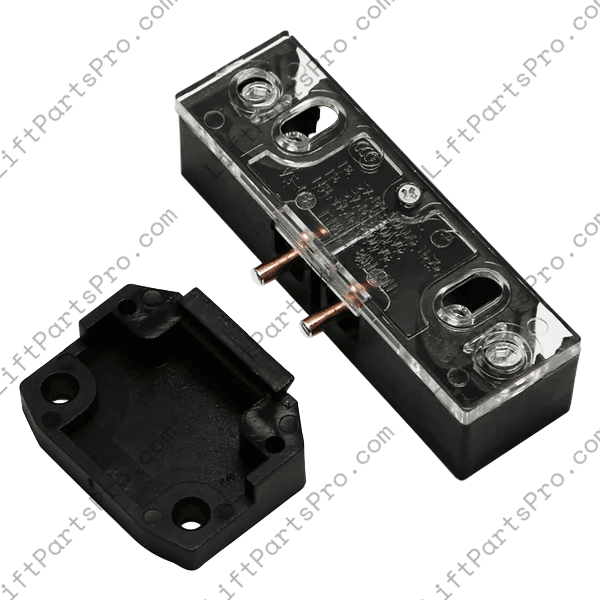

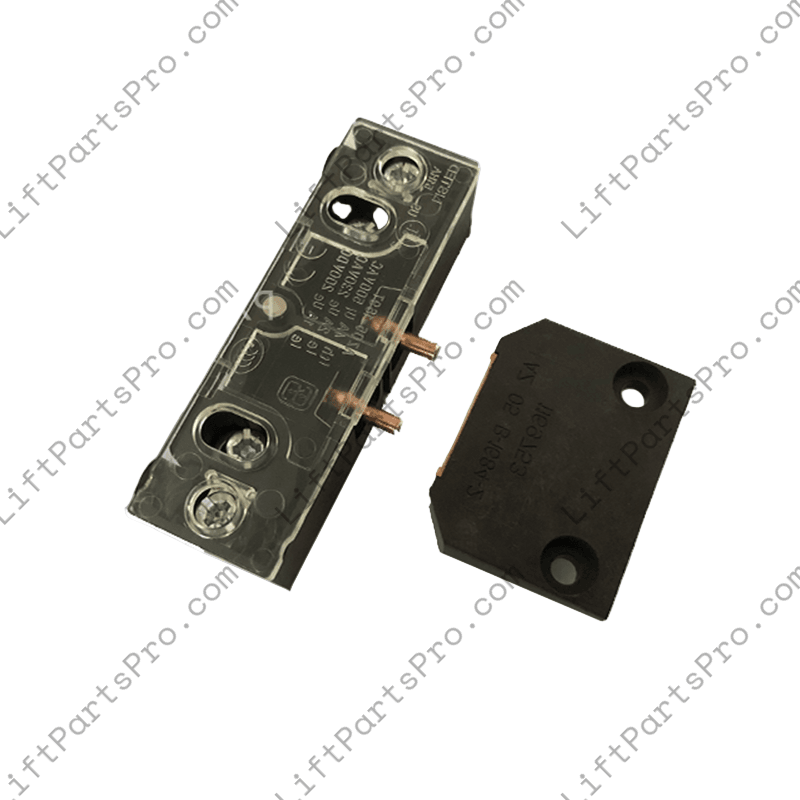

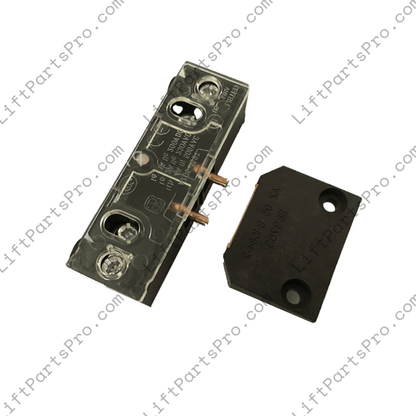

• Full set: Includes male and female two‑prong contact blocks for a single lock position.
• Robust electrical ratings: 4 A Ith, 500 VAC Ui, 2 A @ 230 VAC Ie, and 1 A @ 200 VDC—built for elevator-grade reliability.

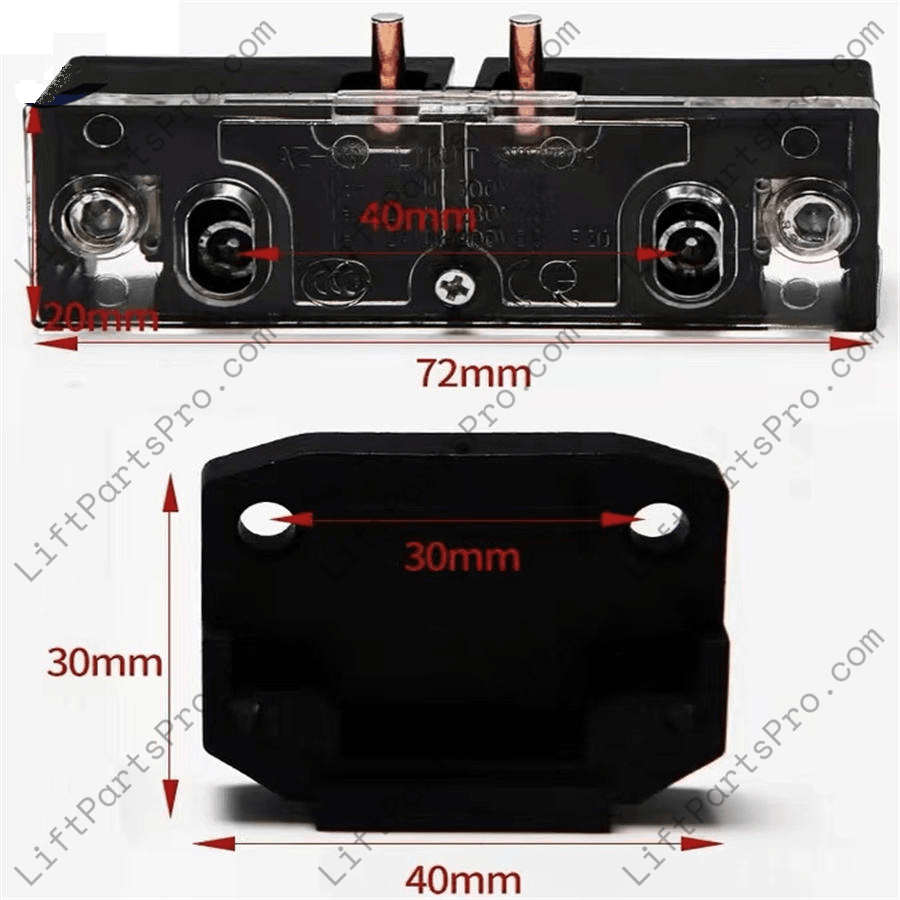

• Compact footprint: About 72 × 29.8 × 19 mm, making it a slim fit for tight door mechanism housings.
• Lightweight: Only ~30 g, minimizing added stress on mounting points.
• Multi-brand compatibility: Trusted in installations from Schindler, KONE, Savaria (Telecab), and equivalent systems.

Includes

• (1) Male contact block
• (1) Female contact block
• (Mounting hardware: not included; reuse originals where applicable.)

For safe and reliable operation, have the AZ05-1697 contact set installed and adjusted by a licensed elevator technician. Restore smooth, fault-free performance in your Schindler, KONE, or Savaria lift by ordering today.
