Elevator Door Interlock Solenoid Coil – Windsor OEM #73661 Replacement
Elevator Door Interlock Solenoid Coil – Windsor OEM #73661 Replacement
🔄 Backorder Available
This item is available for backorder. Estimated lead time is 8 to 14 business days. We’ll send an update once your order is confirmed and provide tracking when it ships.
SKU: SOL.WND.24VAC
Condition: New
Couldn't load pickup availability
Replacement solenoid coil for Windsor door locks. 24 VAC, continuous duty, 17.4 Ω coil. Direct replacement for OEM #73661.
This solenoid coil is a direct replacement for Windsor OEM #73661 door lock assemblies found in older Windsor elevators. Built to industry-standard specifications for reliability and long service life, this coil is designed for continuous duty and precise fit within Windsor lock mechanisms.
Specifications
- Voltage: 24 VAC
- Duty Cycle: Continuous
- Coil Resistance: 17.4 Ω
- Power Consumption: ~8 VA
- Holding Force: ~3.6 N (pull force at rated voltage)

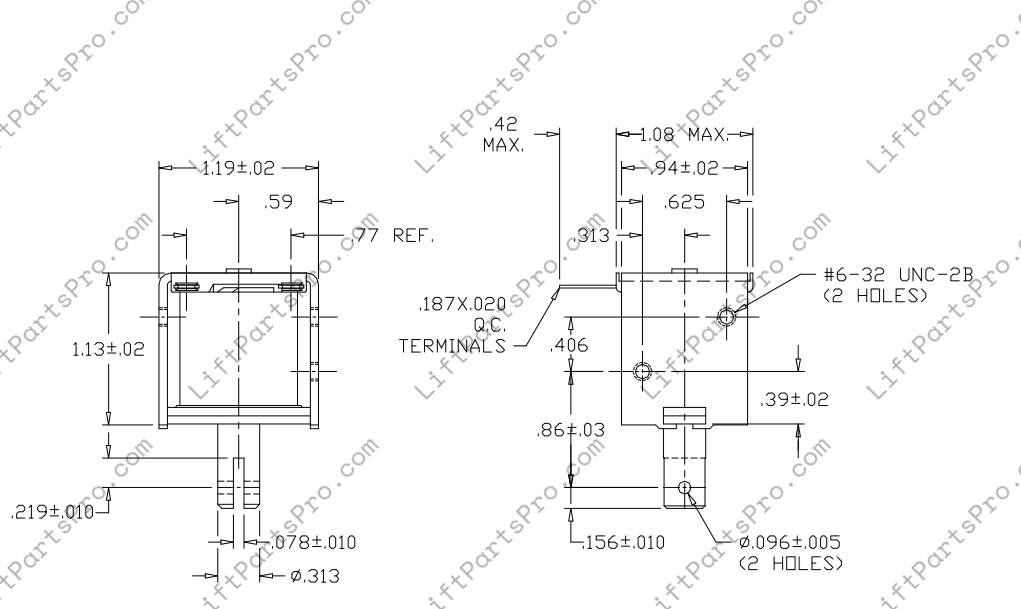

- Frame Style: Open-frame / box-type (D-frame)
- Mounting: Standard bracket fit for Windsor lock assemblies
- Application: Elevator door locks using Windsor OEM coil #73661
Installation of this solenoid coil should be performed only by qualified personnel or a licensed elevator technician. Proper installation ensures compliance with elevator safety standards and reliable long-term operation.
