Elevator Door Close Spirator with Mounting Bracket and Hardware

Universal door close spirator with mounting bracket and hardware, 5" pulley and 94.5" cable, designed for use in accessibility lift door systems.

This universal door close spirator is engineered for use in accessibility lifts that require controlled door-closing tension. Designed to fit a variety of platform lifts, VPLs, and other residential or commercial accessibility systems, this unit includes a 5" diameter pulley, a welded bracket for secure mounting, and a complete hardware kit.

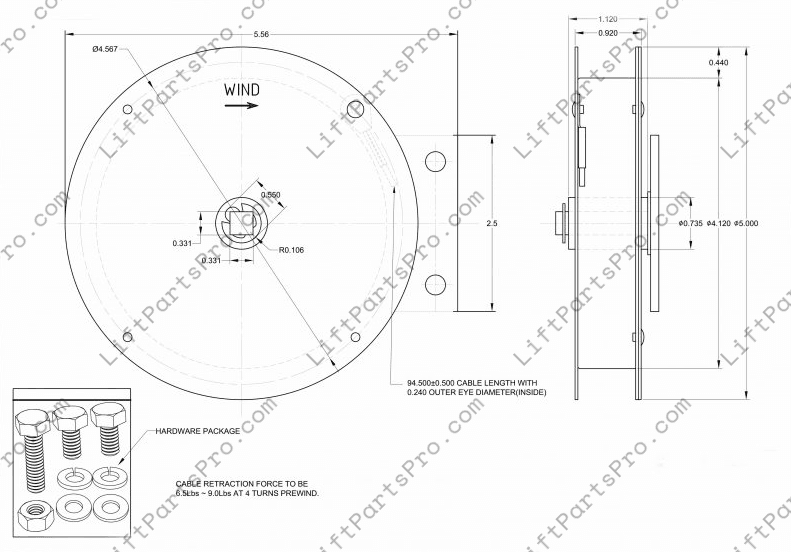

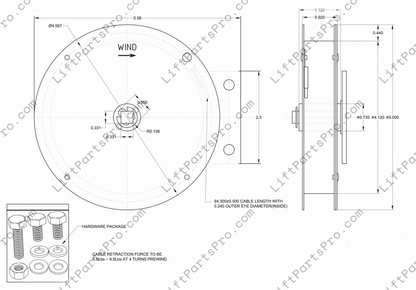

The spirator features a 94.5-inch cable with a 0.240" inside eye diameter and delivers a retraction force of 6.5 to 9.0 lbs at 4 turns of prewind—ensuring consistent and reliable door operation.

• Pulley Diameter: 5.000"
• Overall Face Diameter: 5.56"
• Cable Length: 94.5" ± 0.5"
• Cable Eye Diameter (Inside): 0.240"
• Shaft Bore Diameter: 0.550"
• Mounting Bracket Hole Spacing: 2.5"
• Pulley Width: 0.440"
• Retraction Force: 6.5–9.0 lbs at 4 turns prewind
• Includes bolts, washers, and lock nuts for mounting

Maintain proper door closure functionality and tension in your lift system with this universal spirator assembly. Always ensure installation is performed by qualified personnel to uphold safety standards and system reliability.
