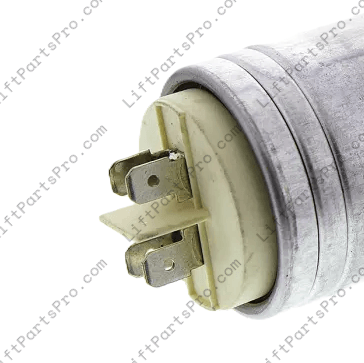

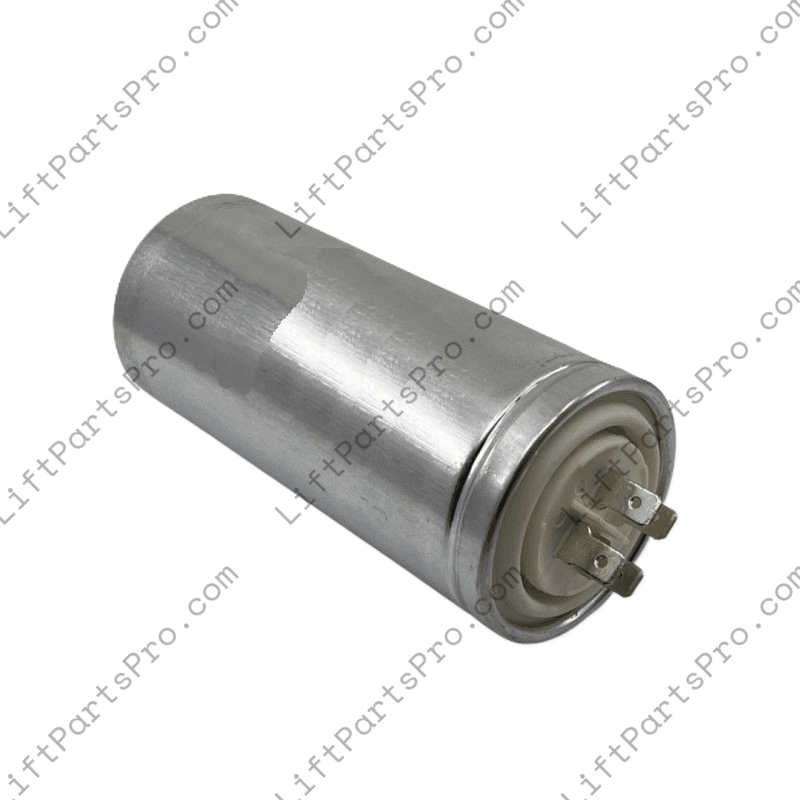

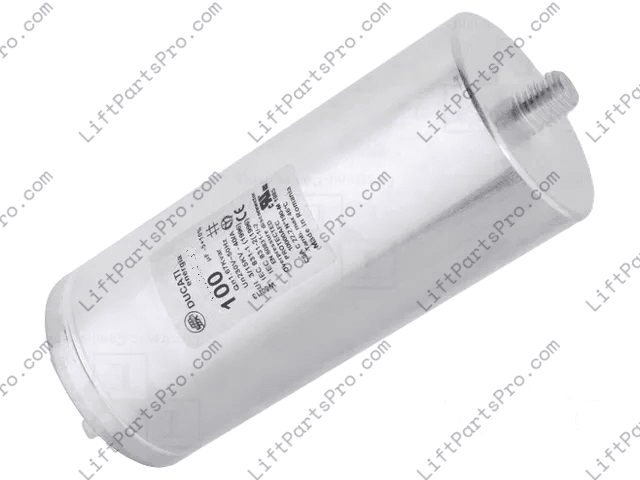

This 100-microfarad 230V AC capacitor is a high-quality polypropylene unit commonly used in residential elevator motor circuits. Built for reliable performance, it offers a compact cylindrical body with spade terminals and an M12 mounting stud for easy installation. Designed to meet demanding power factor correction applications, this capacitor is a direct replacement option for certain Waupaca home elevator models requiring these specifications.
- Capacitance: 100 µF
- Rated Voltage: 230 VAC
- Reactive Power: 1.67 kVAR @ 50 Hz
- Operating Current: ~7.2 A
- Tolerance: –5% / +10%
- Operating Temperature: –25 °C to +55 °C
- Expected Service Life: ~110,000 hours
- Mounting: M12 screw
- Terminals: 6.3 mm spade connectors
- Dimensions: Ø 60 mm × 137 mm
Ensure elevator performance and longevity by using components that meet original specifications. This capacitor should be installed only by qualified professionals familiar with residential elevator systems.
