Dual Lower Limit Switch - Porch-Lift Systems

Compatible with Various Porch-Lift Models

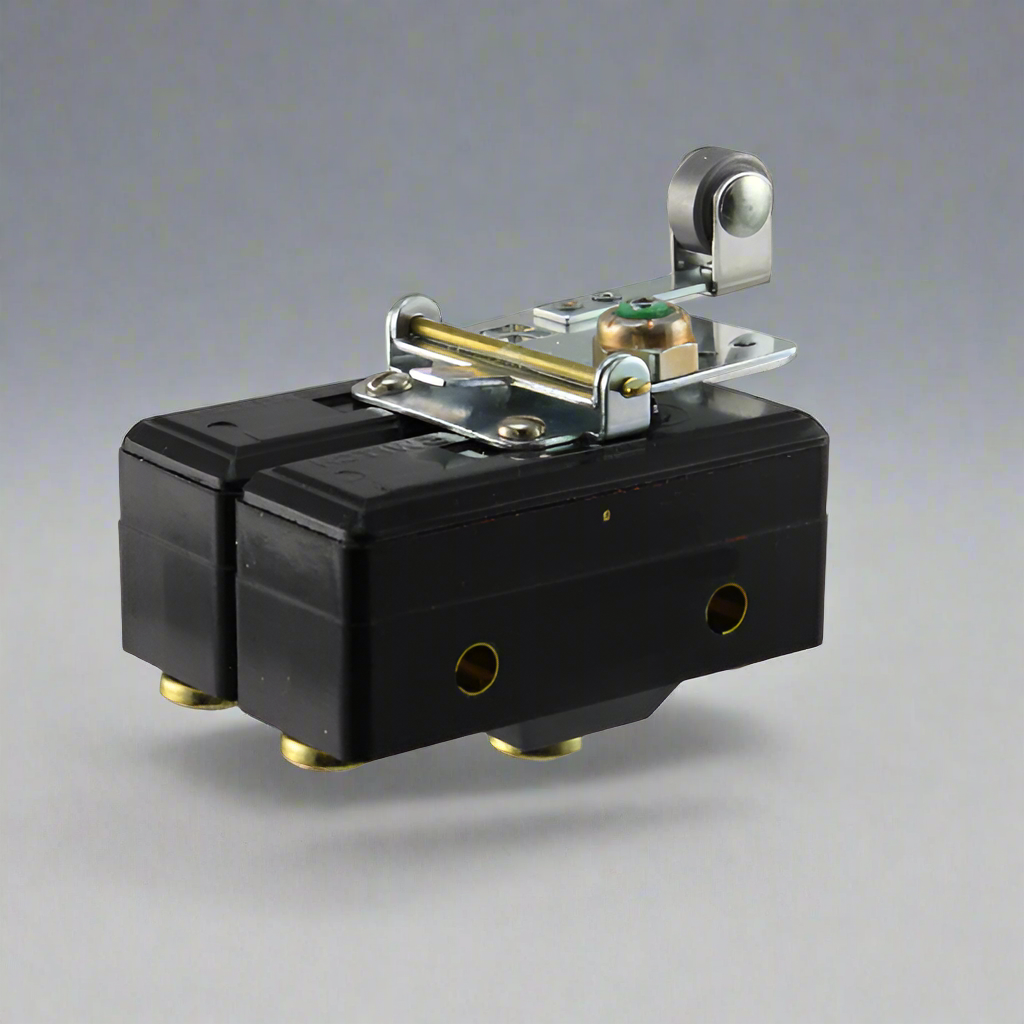

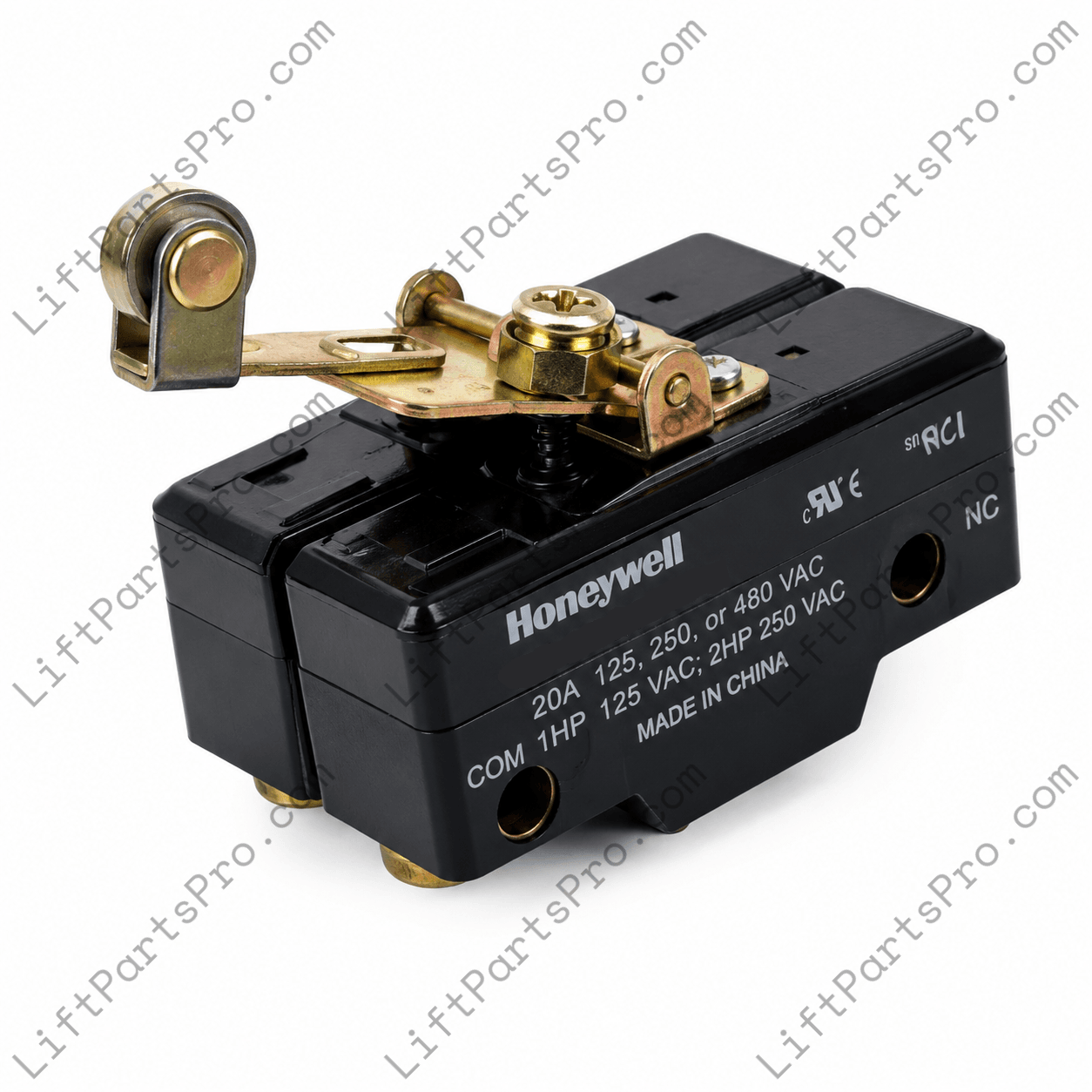

This tandem switch is a premium large snap-action dual switch assembly designed for high-capacity applications. It serves as a lower limit device in many Porch-Lift units and replaces the original straight lever actuator with a roller wheel actuator for smoother operation.

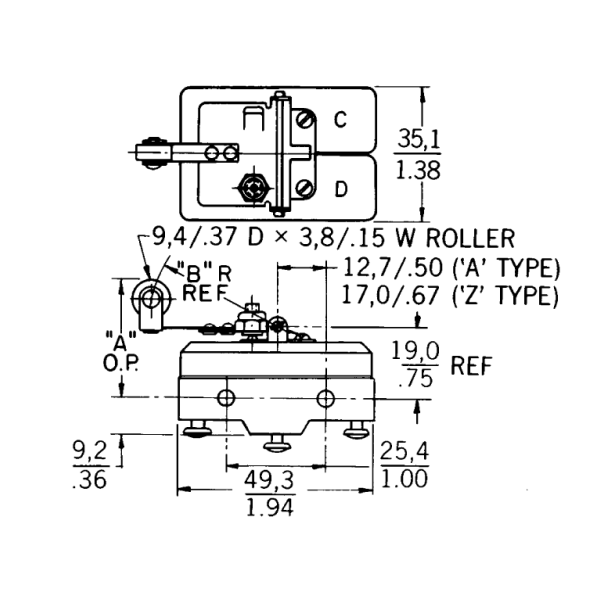

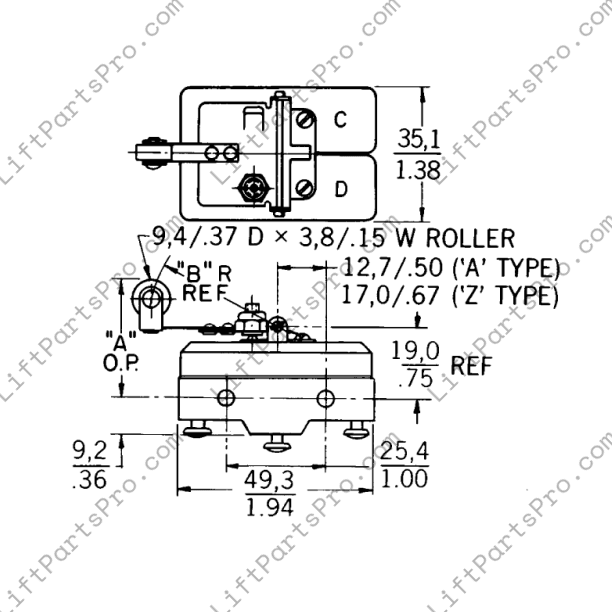

Specifications:

• Actuator Type: Roller lever
• Circuitry: Single-Pole Double-Throw (SPDT)
• Electrical Rating: 20 A at 125, 250, or 480 Vac
• Contact Material: Silver contacts
• Termination Type: Screw terminals
• Operating Force: 3.89 N (14 oz)
• Operating Position: 30.96 mm (1.219 in)
• Temperature Range: -55°C to 85°C (-67°F to 185°F)

Important Notes:

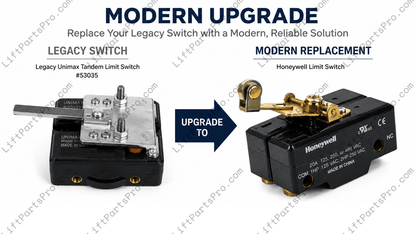

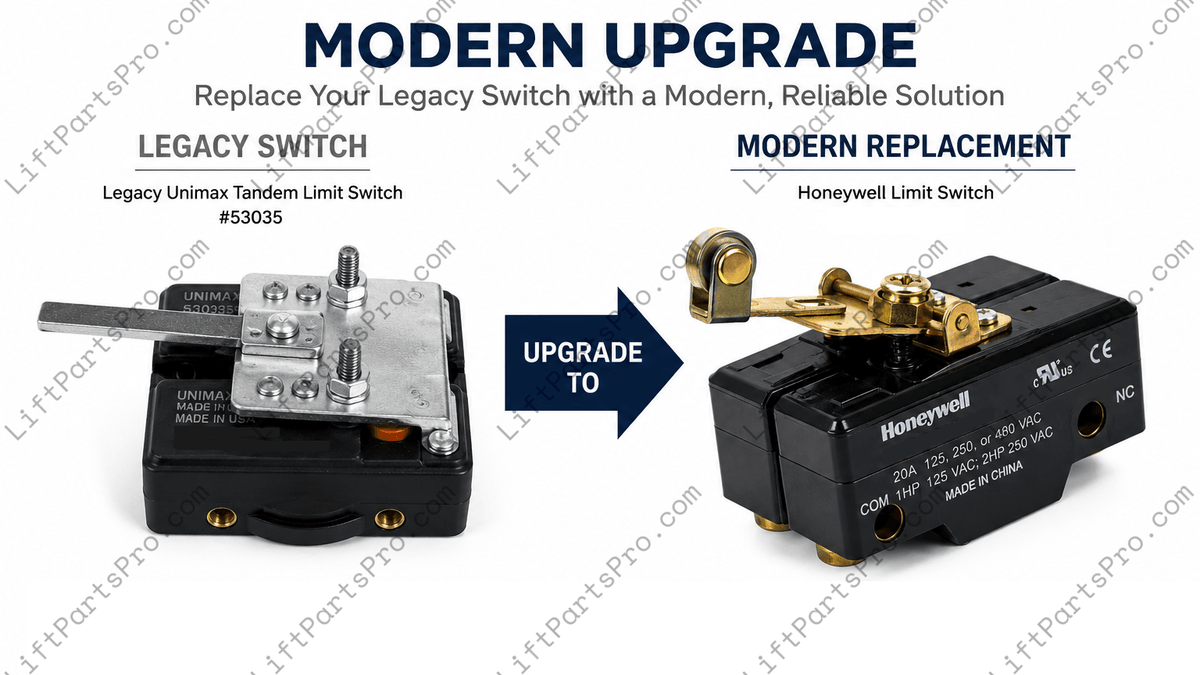

• This switch is a replacement for the original straight lever actuator switch.
• Proper installation requires alignment and timing adjustments to ensure correct functionality.
• It is recommended that installation be performed by a qualified technician for optimal performance and safety.
