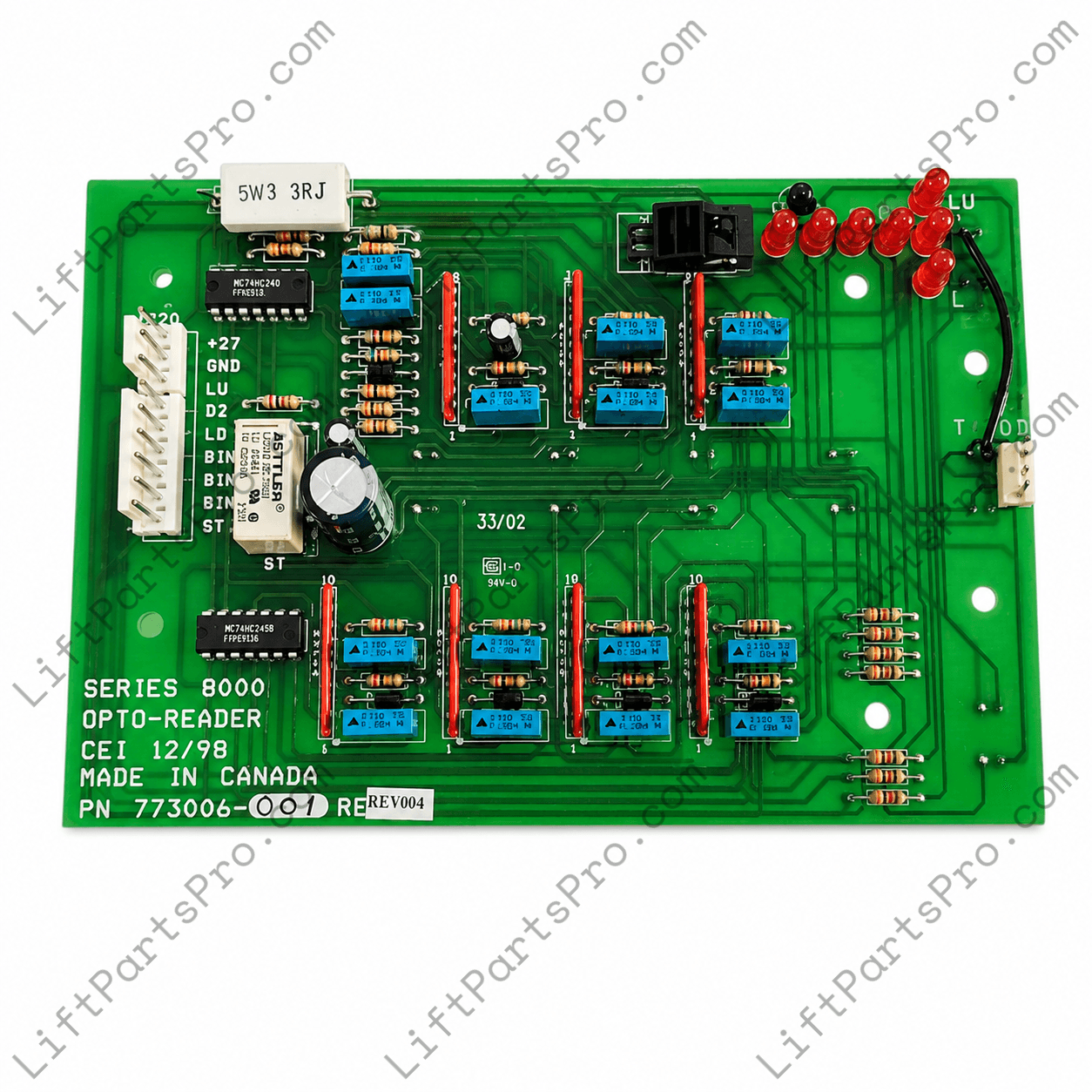

Concord Opto-Reader Selector Board for Series 8000 Lifts

The Concord Opto-Reader selector board is a critical positioning component used in Concord Elevator Series 8000 lift systems. This circuit board reads shaft positioning references to determine the lift’s location, helping establish floor levels, door zones, and leveling points throughout operation.

Designed for use with compatible lift control systems, this opto-reader board processes signals from binary lanes or magnetic/optical tape arrangements within the hoistway. It supports reliable communication of position data required for smooth lift sequencing and accurate landing alignment.

• Component Type: Opto-reader selector circuit board
• Application: Concord Elevator and Savaria Series 8000 lift systems
• Function: Lift position sensing and tracking
• Detection Method: Binary lane and magnetic/optical tape reading
• System Use: Floor position, door zone, and leveling reference detection
• Installation Location: Lift shaft positioning system assembly

Replacement lift control components should be installed by qualified personnel familiar with accessibility lift equipment and applicable safety standards. Proper installation helps maintain dependable system performance and ensures components operate as intended within the lift assembly.
