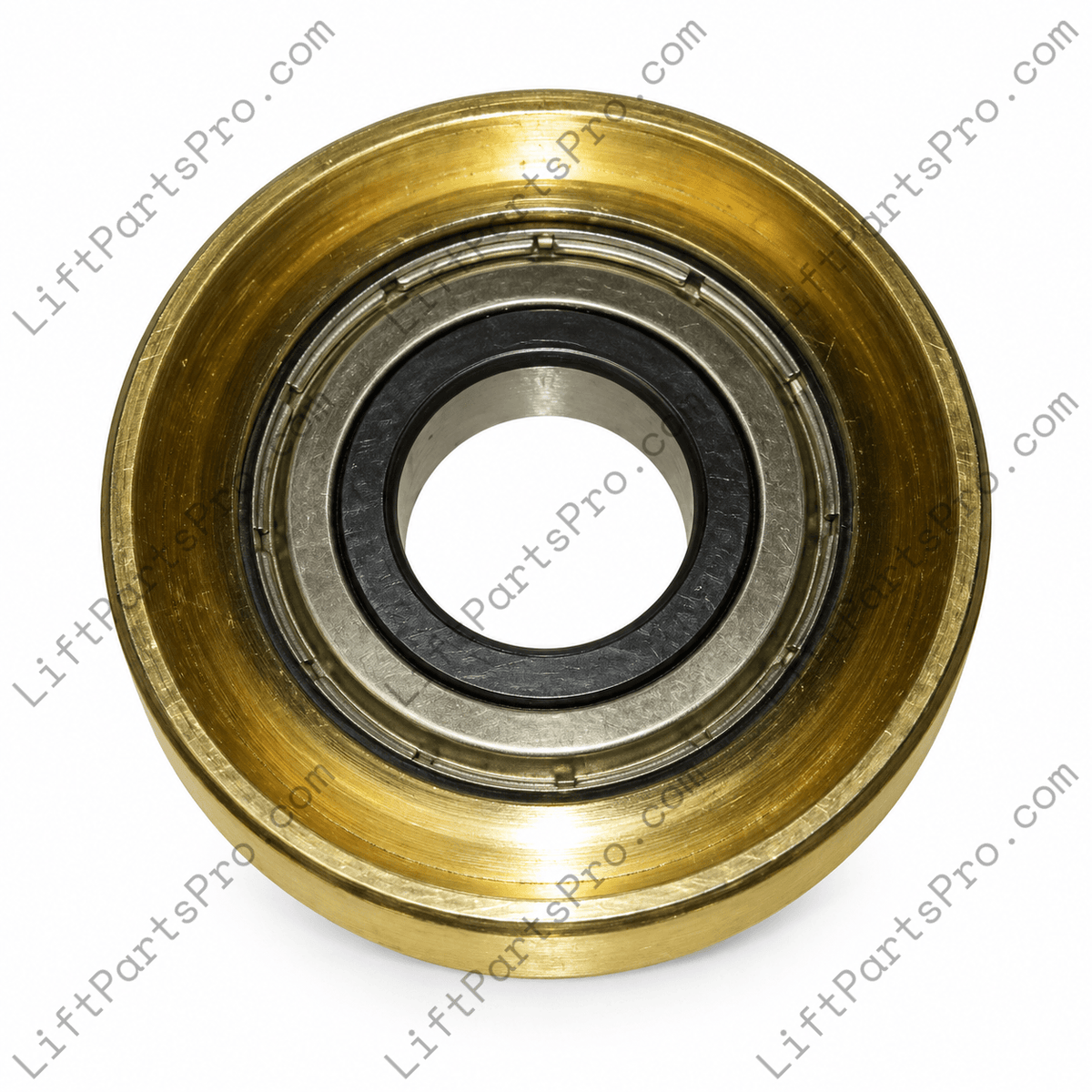

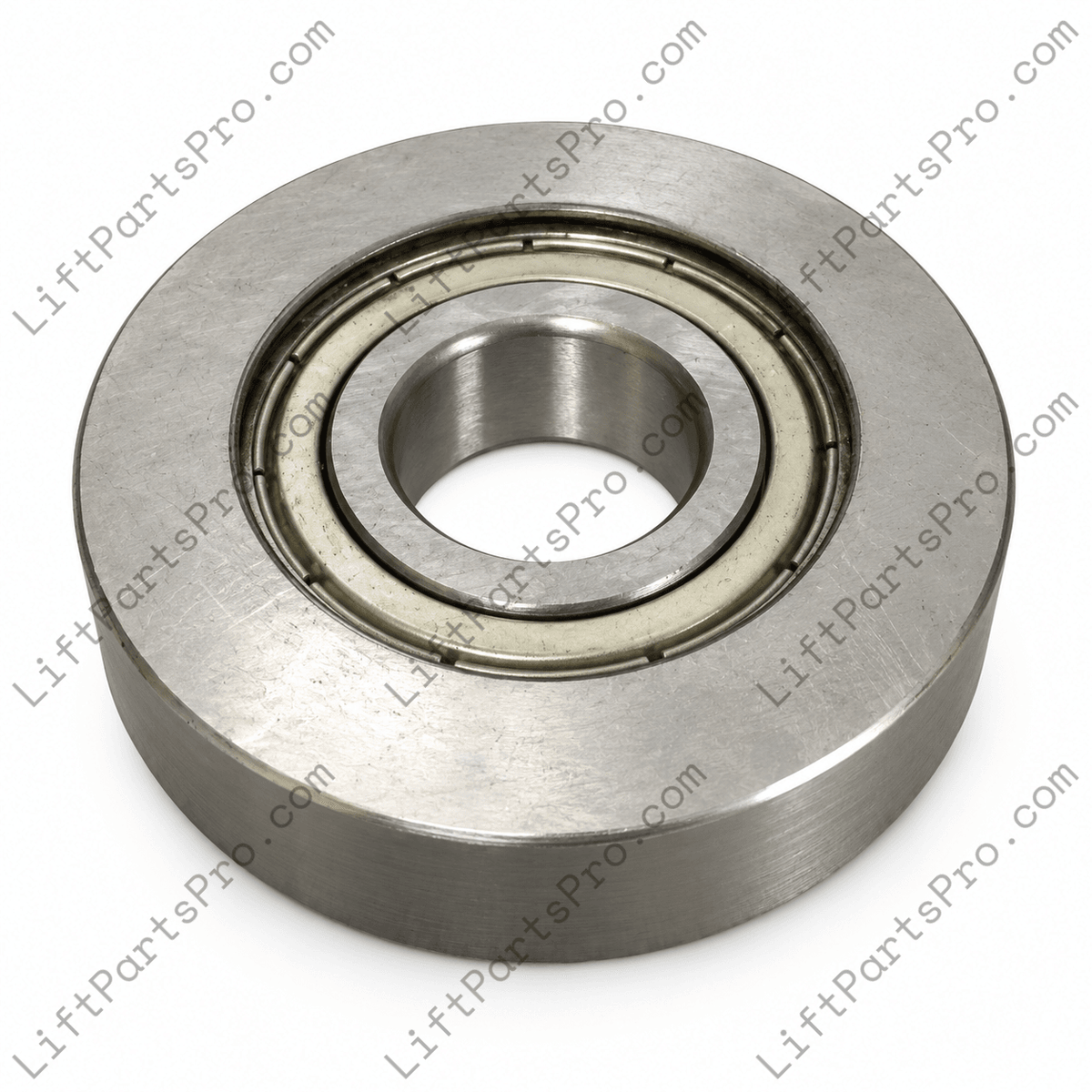

Concord Liberty Stair Lift Vertical Riding Wheel Roller Bearing

Obsolete: Replaced with Concord Liberty Stairlift Carriage Roller Rebuild Kit

This vertical riding wheel is an integral component of the Carriage Assembly and Cable Guide Assembly used on select Concord Liberty RE-S and LX stairway lift models. Legacy part number 440023 identifies this component in the original illustrated parts documentation.

The wheel installs within the carriage assembly and is identified separately from the pressure wheel, front single-flange wheel, and double-flange bearing wheels used elsewhere in the assembly. Its roller-bearing design provides a rotating contact point as the carriage travels along the stair lift rail. The original parts diagram identifies the vertical riding wheel as reference #9 within the carriage assembly.

• Part Type: Vertical riding wheel / roller bearing
• Application: Stair lift carriage assembly
• Assembly: Carriage Assembly and Cable Guide Assembly
• Compatibility: Select Concord Liberty stairway lifts
• Legacy Part Number: 440023
• Illustrated Reference: #9
• Configuration: Wheel with integrated bearing

Accessibility lift components should be installed and inspected by qualified personnel familiar with the applicable equipment. Proper installation and verification of the completed assembly help ensure the lift remains configured according to its intended design.
