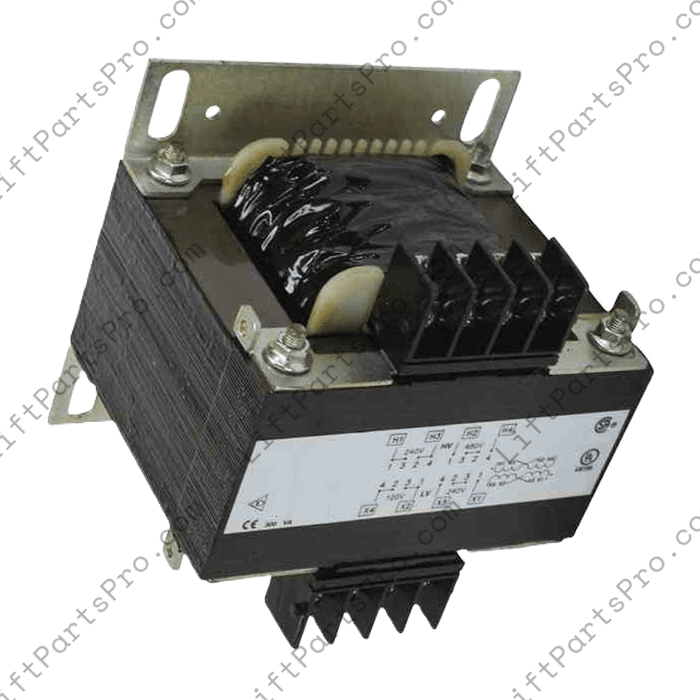

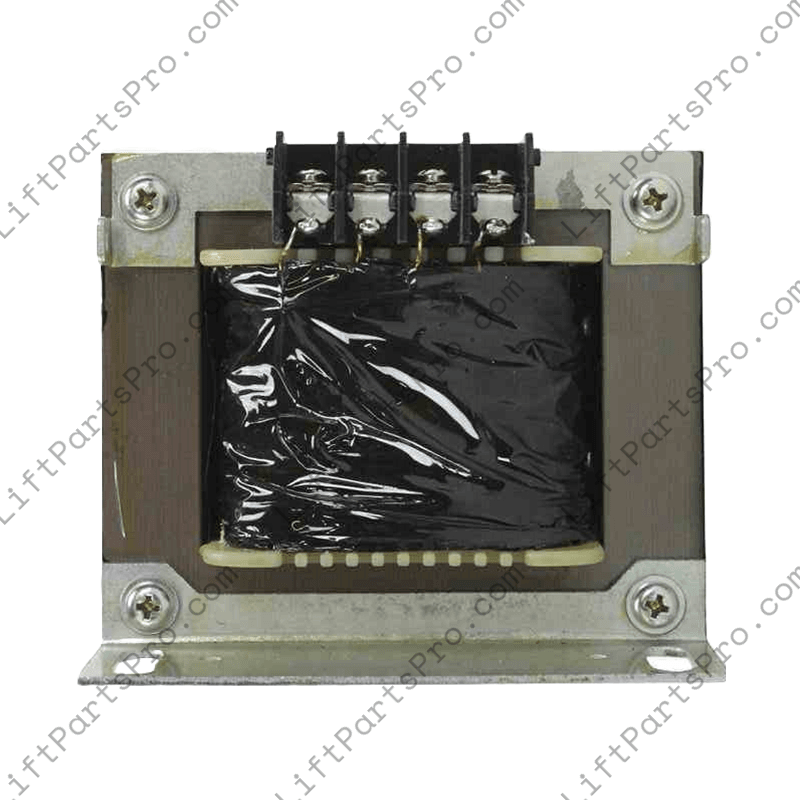

Concord Elevator Buck Boost Transformer 1kVA 115V 25V

Compact 1 kVA transformer with 115V/230V dual input & 25V output for Concord elevator system voltage regulation. Potential replacement for 646-014 and CF1207A.

This 1 kVA buck boost transformer is designed to support voltage regulation and control circuit stability in Concord elevator systems. Featuring dual input voltage capability of 115V and 230V, it offers flexible integration into a range of electrical configurations. The 25V output is suited for control applications requiring consistent low-voltage supply. This unit may serve as a modern replacement option for legacy transformer models previously used in Concord equipment, providing updated performance and compatibility in the appropriate setup. Its compact design supports installation in control panels where space considerations are important.

• Power rating: 1 kVA - 1 Minute On / 2 Minutes Off
• Input voltage: Series or Parallel (H1-H2 for 115V, H1-H3-H4 for 230V)
• Output voltage: 25V
• Phase: Single-phase
• Frequency: 50/60 Hz

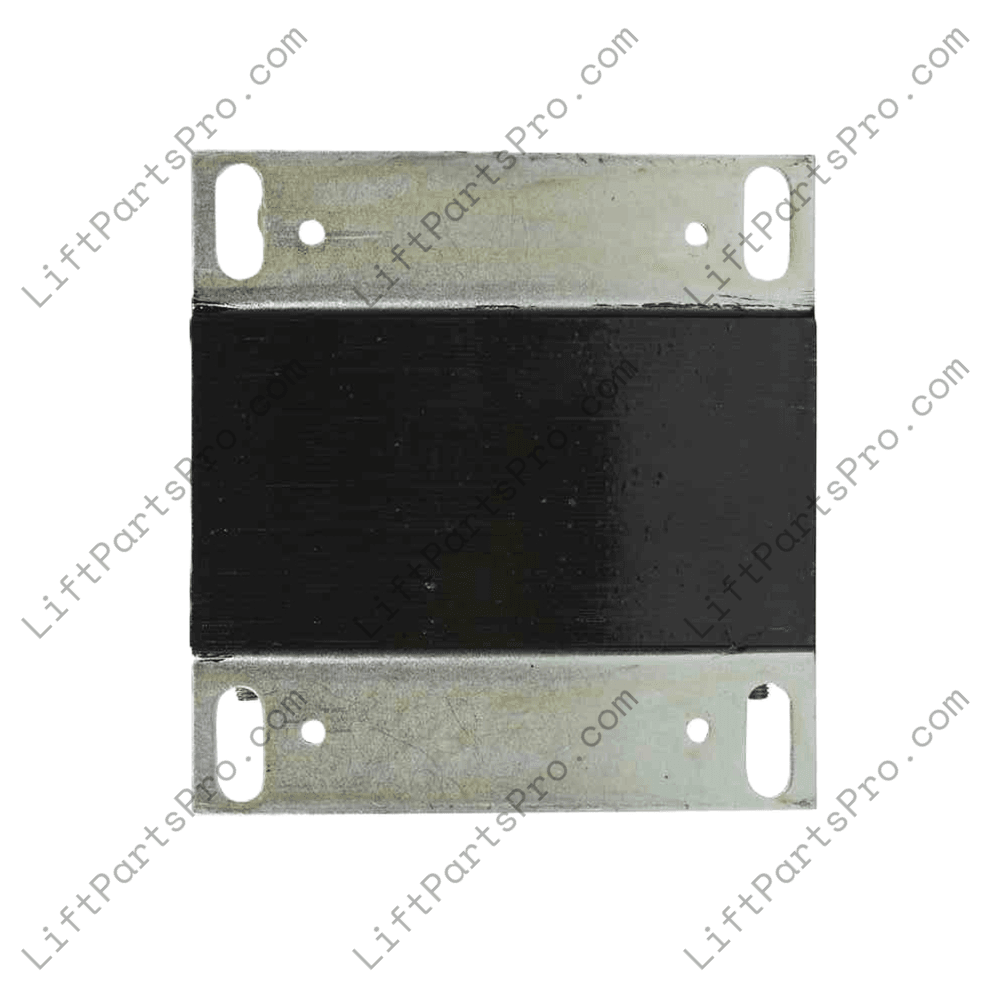

• Mounting style: Foot-mounted transformer
• Application: Control circuit voltage regulation


Proper evaluation of physical dimensions, mounting footprint, and wiring configuration is essential before installation. All work should be carried out by qualified personnel to ensure compatibility and adherence to applicable electrical standards.
