Cheney Handi-Lift VPL Top ACME Ball Screw Bearing

Tapered roller bearing set designed for upper ACME ball screw assemblies in select Cheney HandiLift vertical platform lifts. Replaces legacy #M10001K.

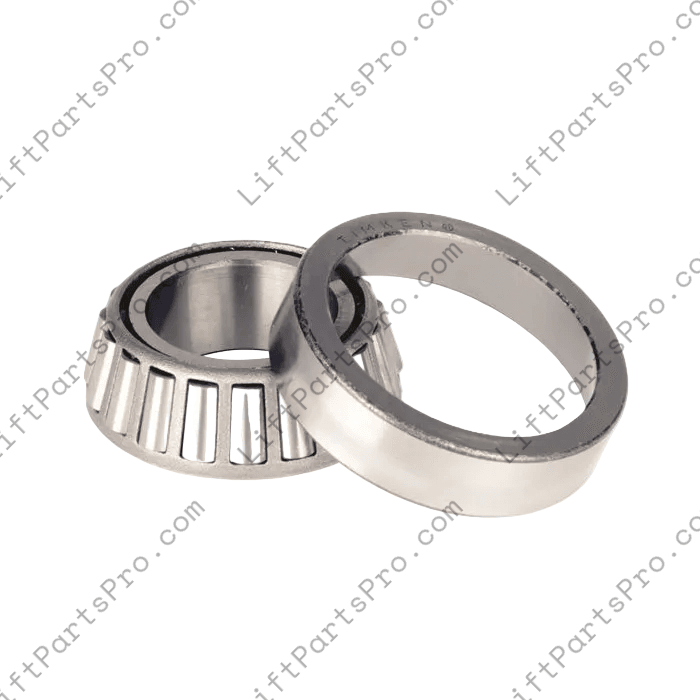

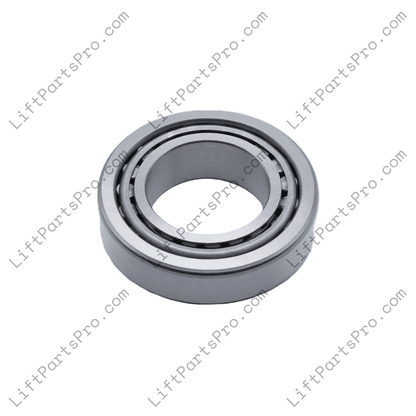

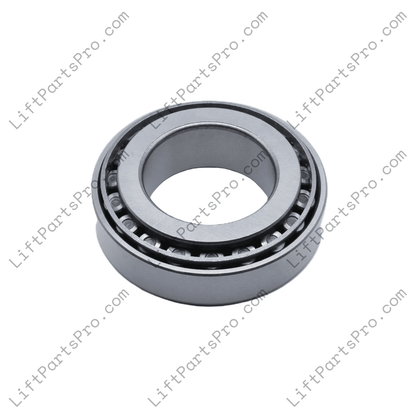

This Timken bearing set includes inner cone and outer cup, engineered to provide precise axial and radial load handling in vertical platform lift systems.
Commonly used as a replacement for legacy part #M10001K, it serves as the upper ACME ball screw bearing in various Cheney Handi-Lift VPL configurations.
Manufactured from high-grade steel for superior durability and reduced friction, this tapered roller bearing set supports smooth screw rotation and consistent vertical motion.

• Inner (bore) diameter: 19.05 mm (0.75 in)
• Outer (cup) diameter: 45.237 mm (1.781 in)
• Combined width (cup + cone): 15.494 mm (0.610 in)
• Cone inner ring width: ~16.637 mm (0.655 in)
• Cup outer ring width: ~12.065 mm (0.475 in)
• Cage material: stamped steel (typical)
• Bearing type: single‑row tapered roller (cup & cone set)
• Load capacities: ~39.1 kN dynamic / ~32 kN static (typical)

To ensure continued reliability and safety of your vertical platform lift, always replace worn or damaged bearings with high-quality components like this Timken set. Installation should be performed by a qualified technician familiar with VPL systems.
