CEMCO UV4 & UV5 Solenoid Valve Coil Kit | Up/Down Coil Set

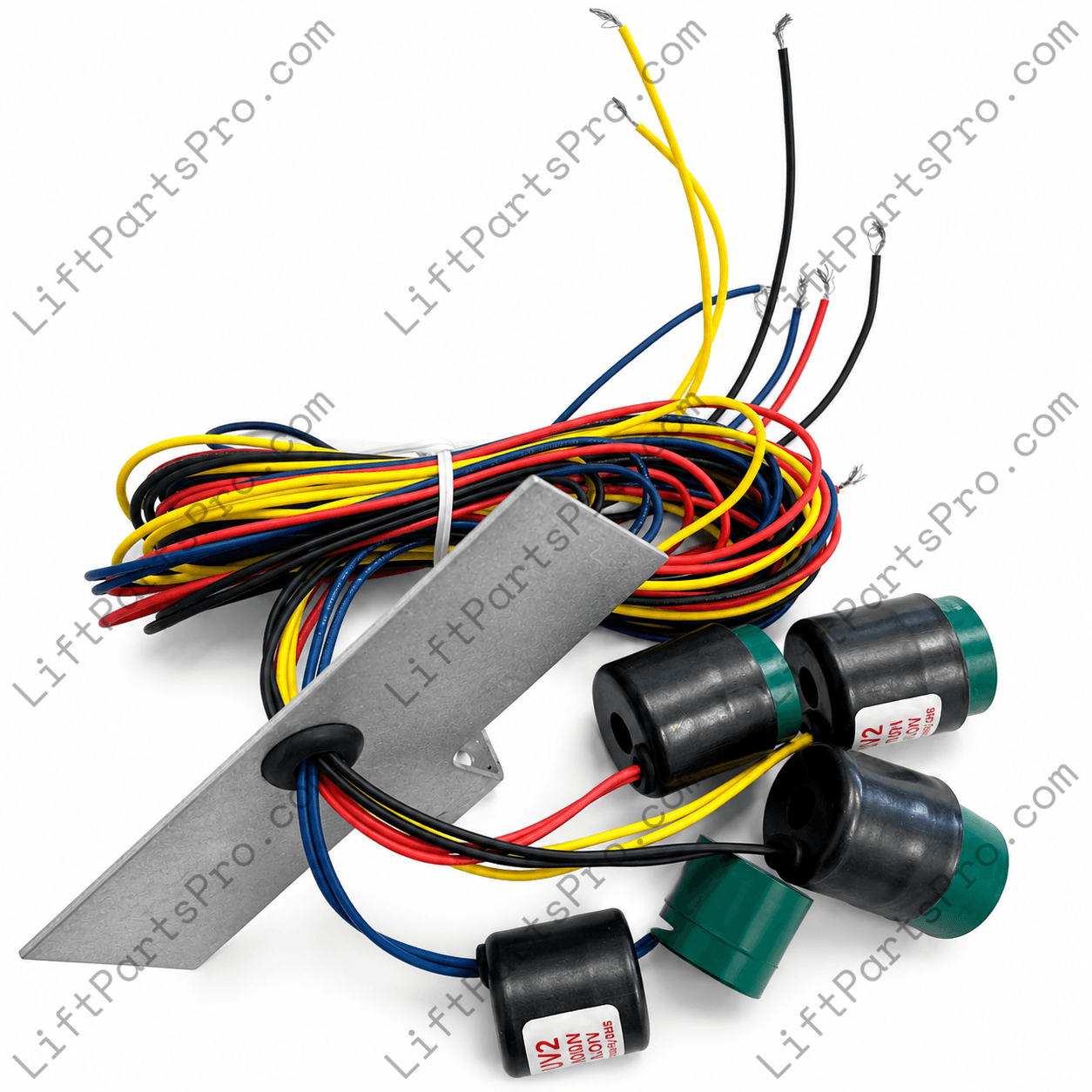

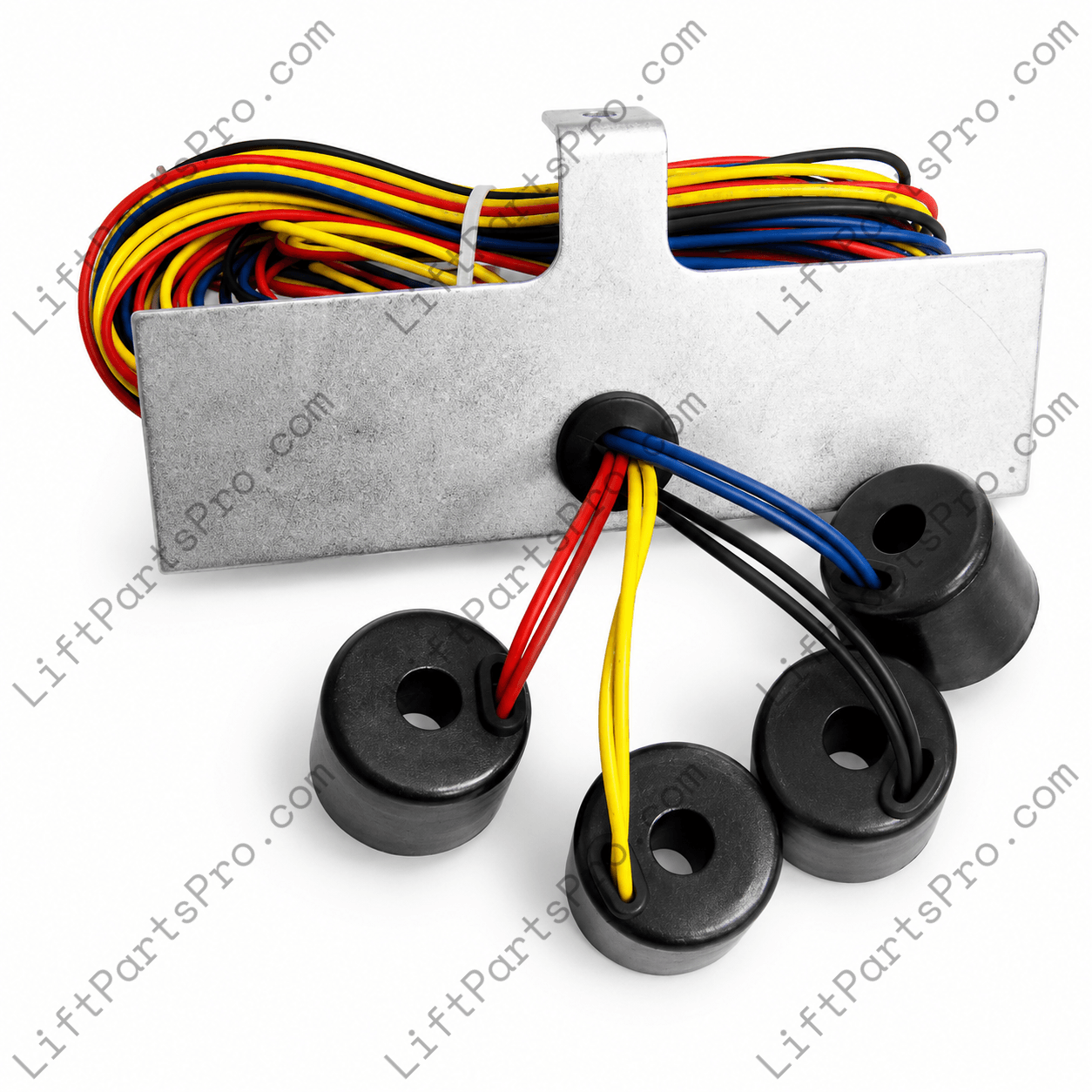

This replacement solenoid valve coil kit is designed for select CEMCO hydraulic elevator systems equipped with compatible UV-5A, UV-5AT, UV-5ATC, and UV-4R series control valves. The kit includes all four valve coils required for complete replacement of the valve's electrical actuators: Up Slow, Up Fast, Down Slow, and Down Fast. Replacing all four coils at the same time helps maintain consistent valve performance and restores proper operation of the hydraulic control system.

This coil kit is suitable for use in CEMCO elevators as well as other hydraulic lift systems utilizing the same valve platform. Each coil is manufactured for 110 VAC, 60 Hz operation and is engineered to fit the designated valve assembly without modification when used on compatible equipment. Verify valve configuration and electrical specifications before ordering to ensure proper application.

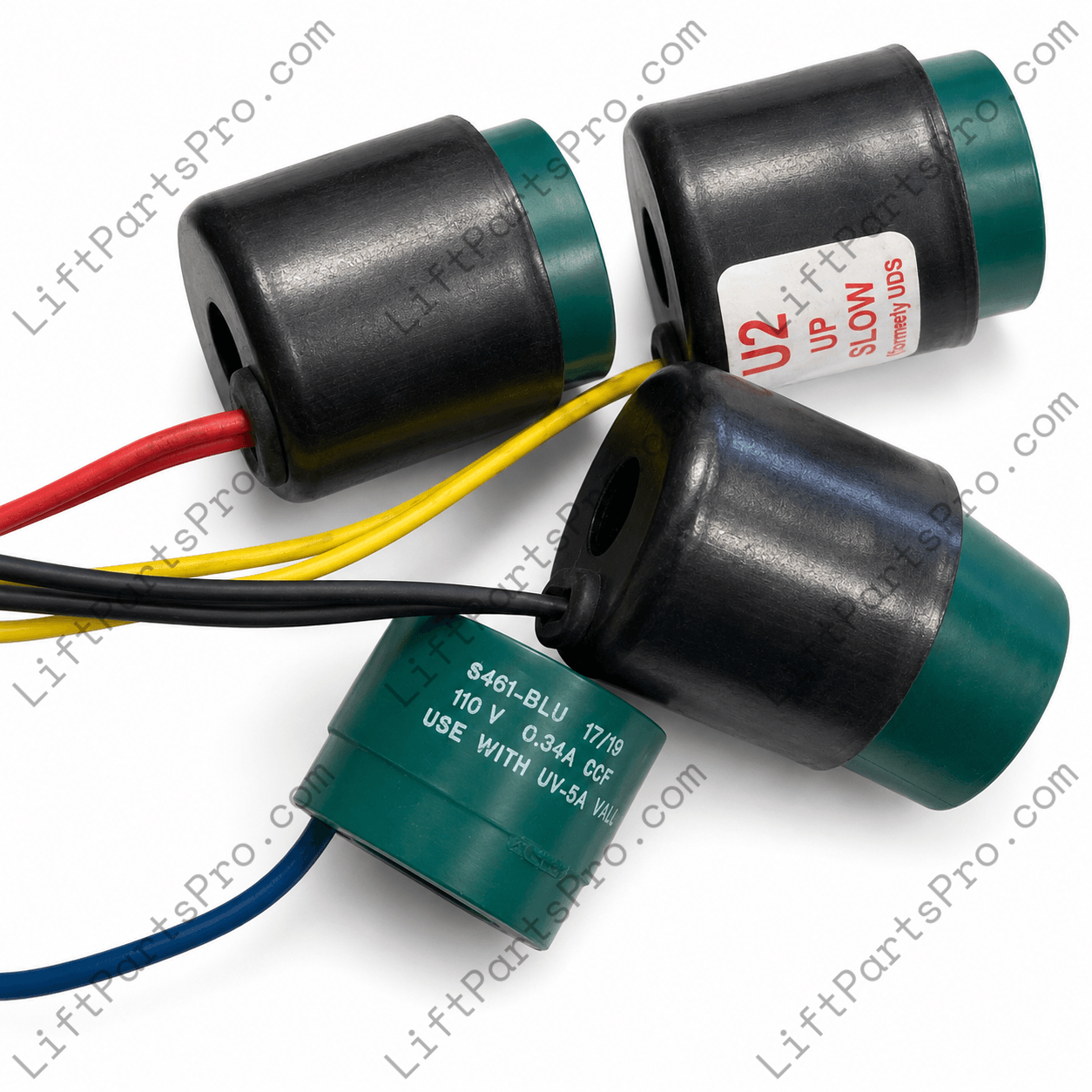

• Includes four solenoid coils:
  • Up Slow (U1)
  • Up Fast (U2)
  • Down Slow (D1)
  • Down Fast (D2)
• Designed for compatible UV4 and UV5 series hydraulic control valves
• Compatible with select CEMCO hydraulic elevators and other compatible lift systems
• Operating voltage: 110 VAC
• Frequency: 60 Hz
• Inrush current: 0.64 A
• Holding current: 0.34 A
• Coil resistance: 113 Ohms
• Replacement coil kit for complete valve coil service
• Cross Reference: MIS-205G, S461

For dependable elevator performance, replacement components should always be installed on compatible equipment and inspected by qualified elevator personnel. Proper installation and verification of system compatibility help ensure reliable operation and long service life.
