CEMCO Lift 60mm Elevator Guide Roller Wheel Assembly

High-quality CEMCO elevator guide roller wheel assembly with 60mm outer diameter, available in concentric (straight shaft) and eccentric (6mm offset) configurations.

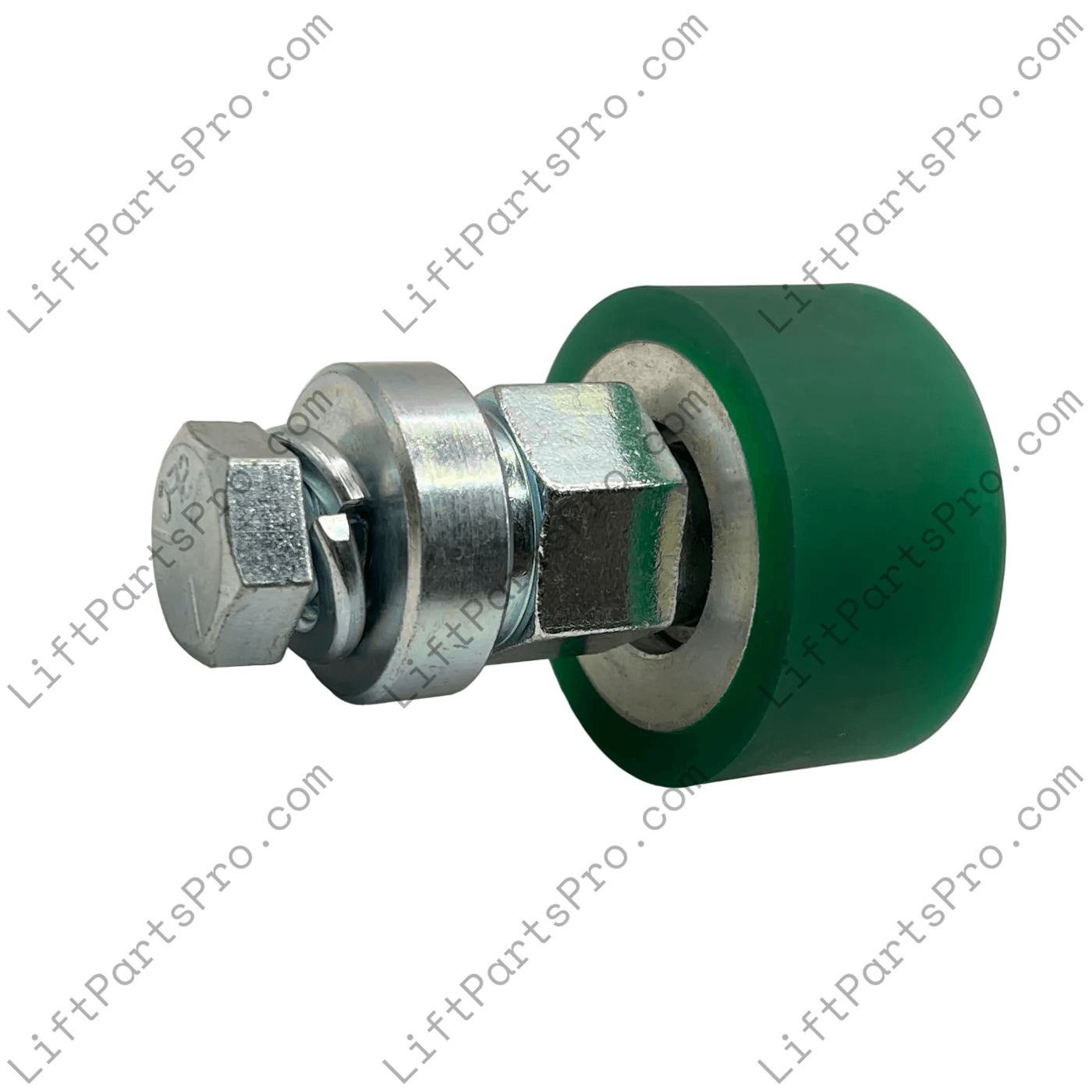

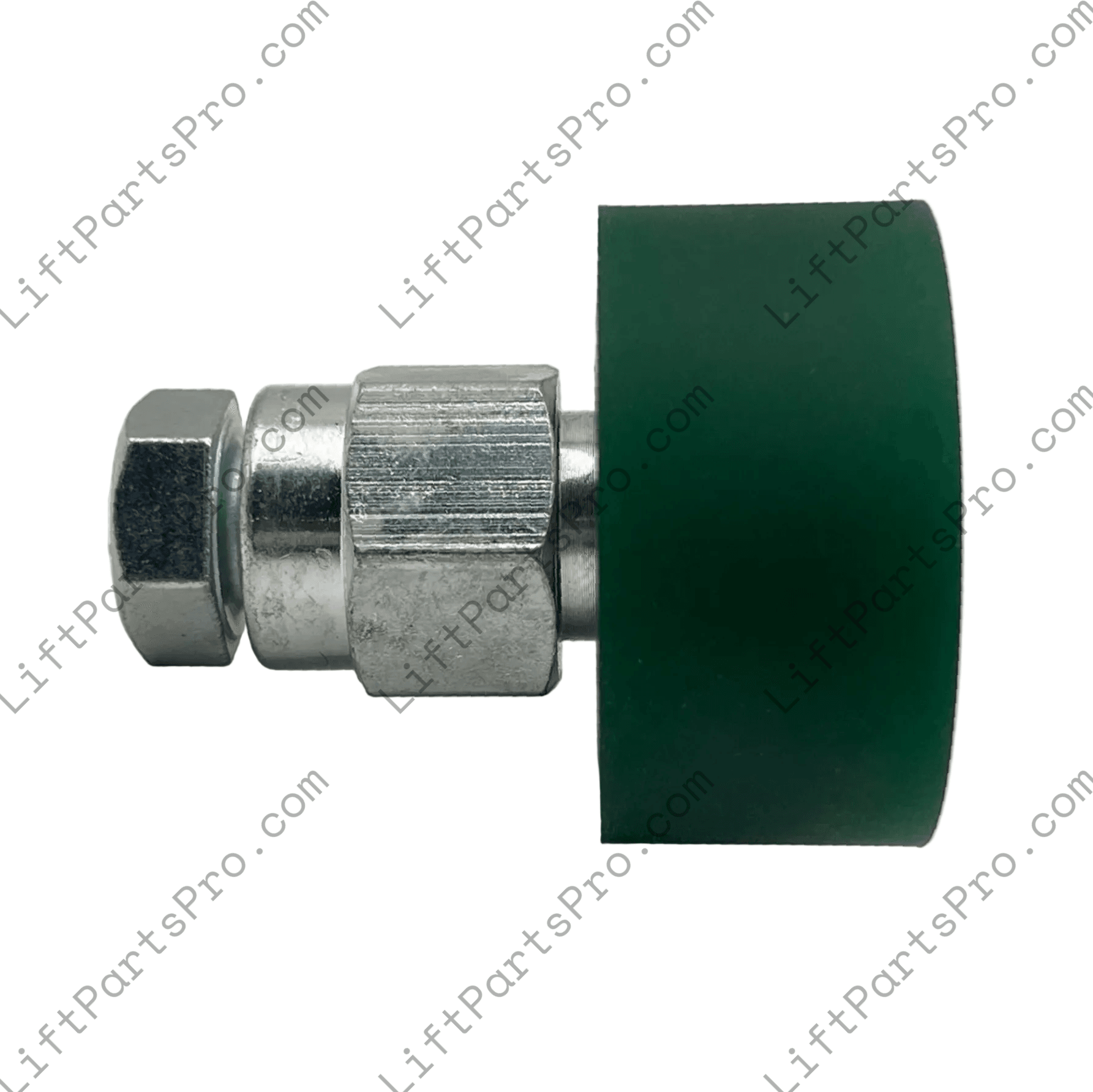

Designed for smooth and reliable elevator car guidance, this CEMCO guide roller wheel assembly features a durable wheel profile and precision-machined mounting components. The assembly is offered in two configurations to suit alignment requirements: a concentric version with a straight shaft and an eccentric version with a 6.0mm offset shaft for fine adjustment.

The concentric configuration is commonly used for upper rail installations, while the eccentric version is typically used for lower rail installations where precise alignment adjustment is required. The robust construction supports consistent tracking along guide rails while minimizing vibration and wear. Ideal for maintenance, modernization, or replacement applications where dependable roller performance is required.

• Wheel outer diameter: 60 mm (2.36 in)
• Wheel width: 30 mm (1.18 in)
• Shaft diameter: 27.50 mm (1.08 in)

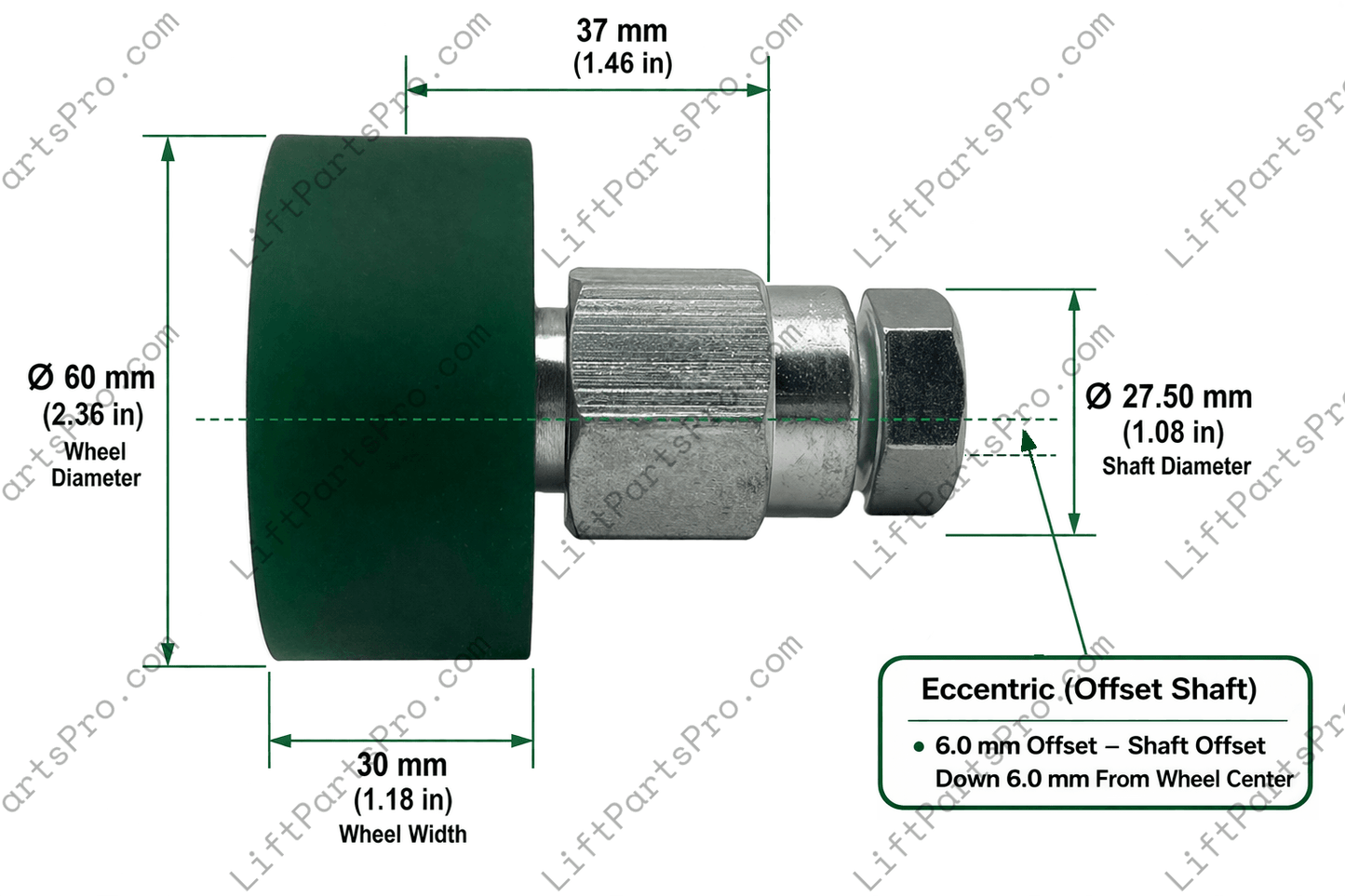

• Eccentric offset (eccentric variant only): 6.0 mm (0.24 in)
• Inner spacing/shoulder length: 37 mm (1.46 in)
• Spacer thickness: 10 mm (0.39 in)

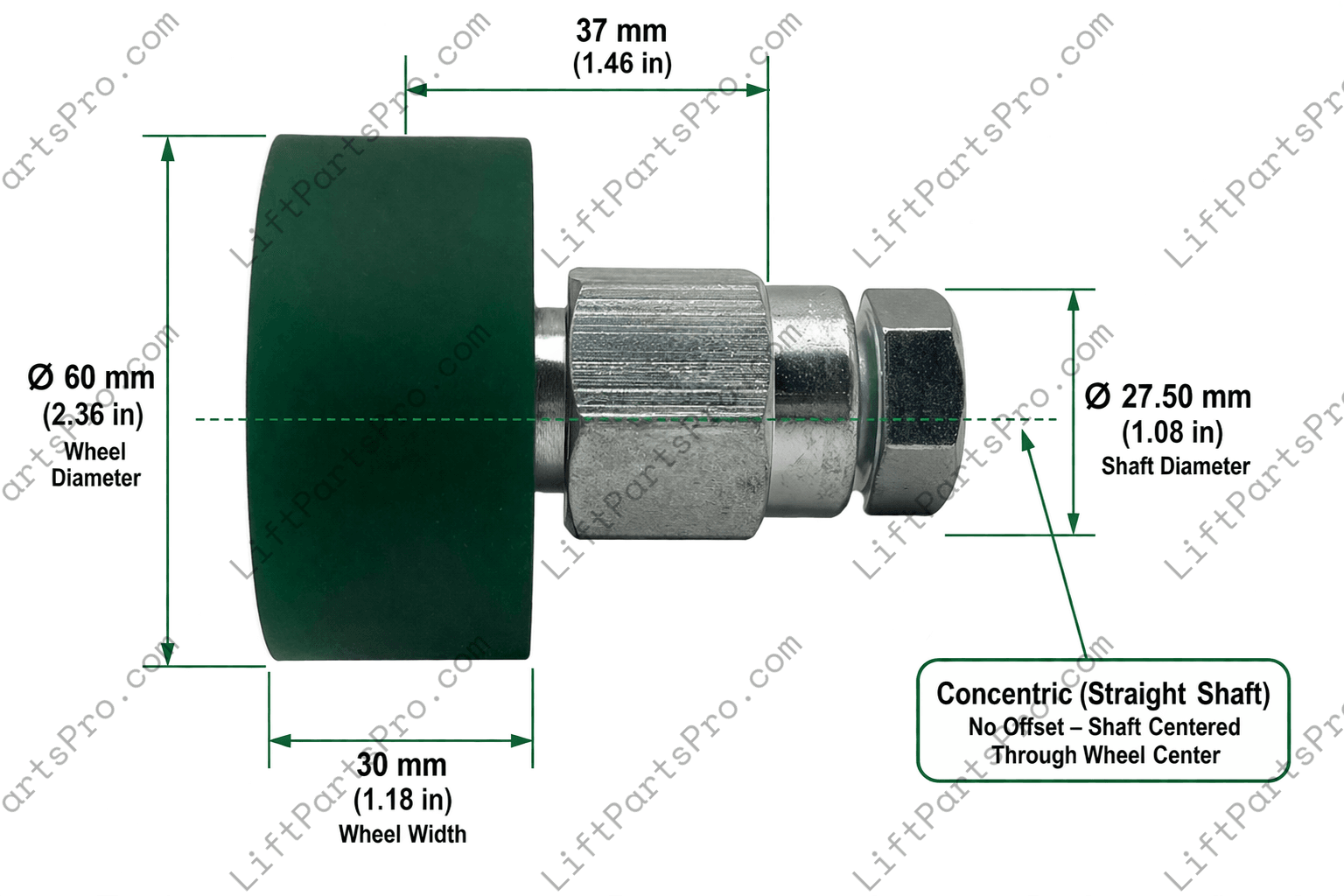

• Configuration options: Concentric (straight shaft) and Eccentric (offset shaft)
• Assembly type: Complete guide roller wheel assembly

For optimal performance and safety, this component should be installed and inspected by qualified elevator professionals in accordance with applicable codes and standards.
