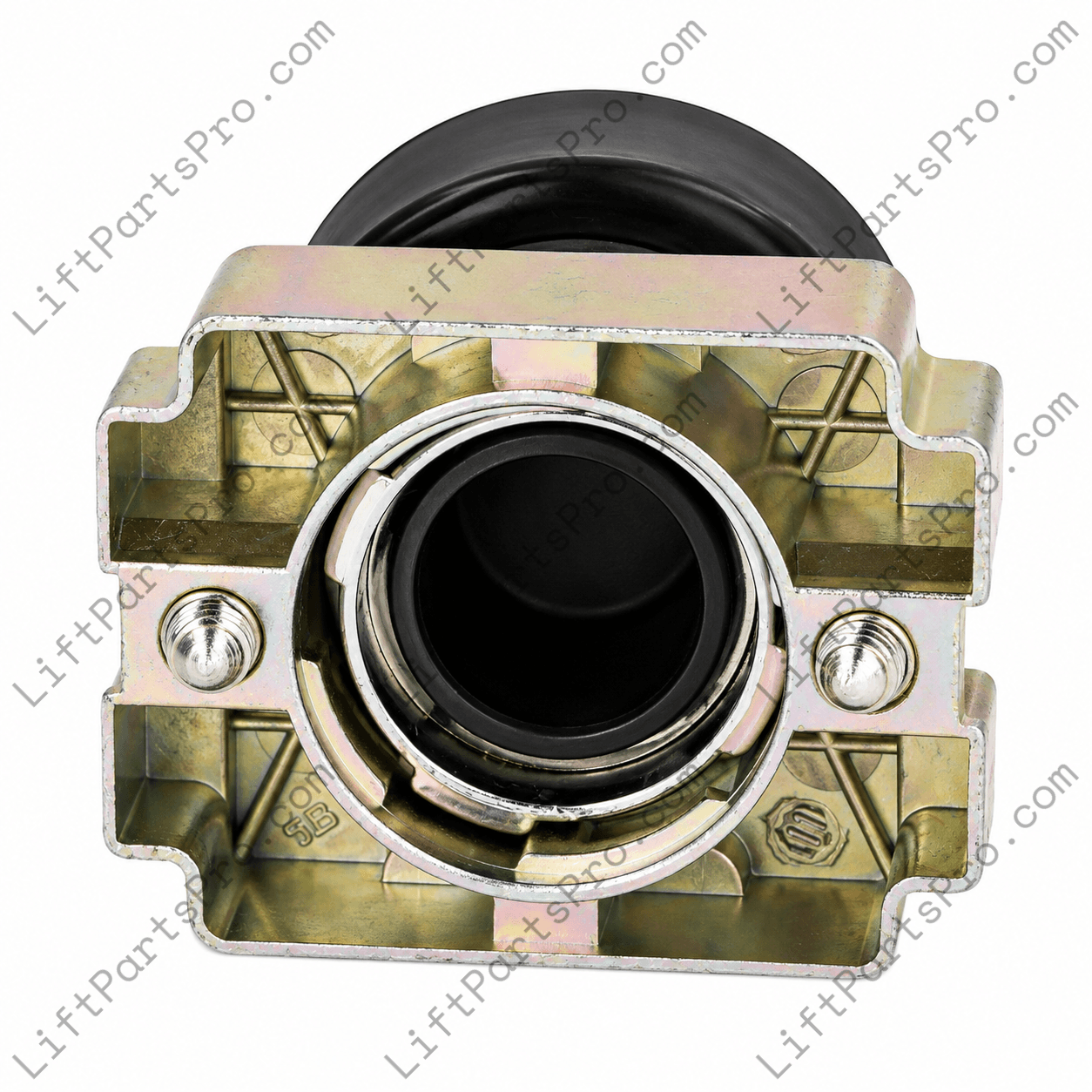

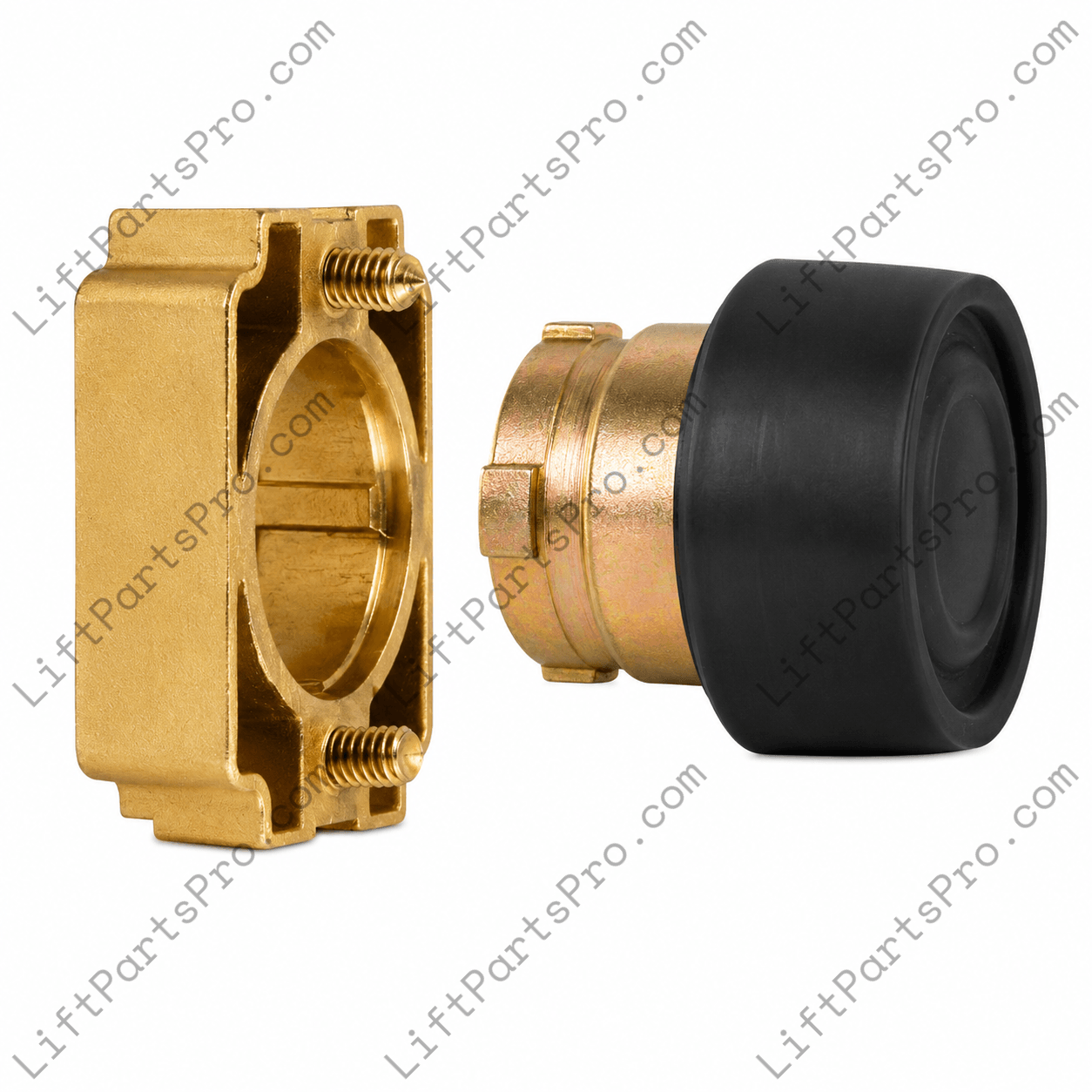

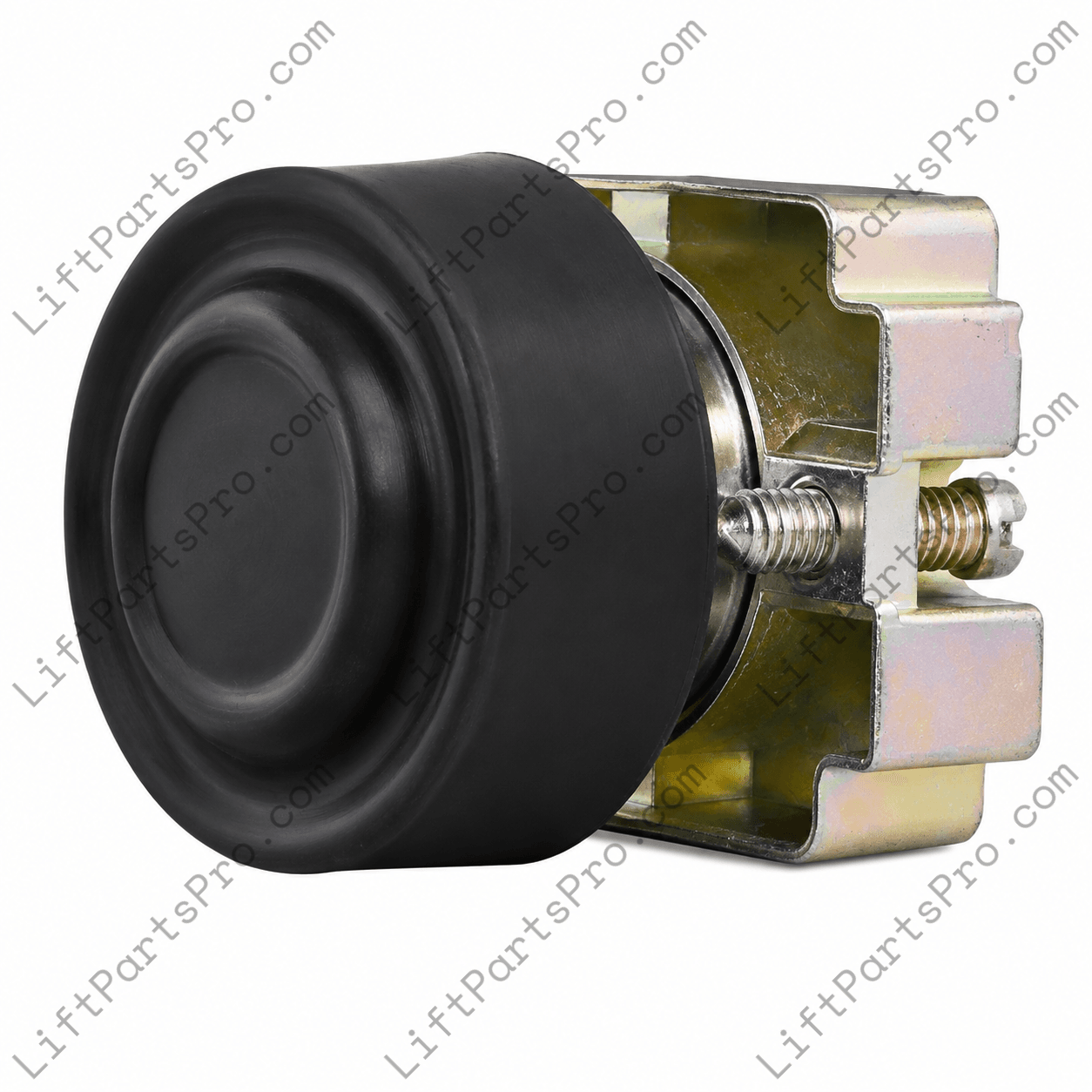

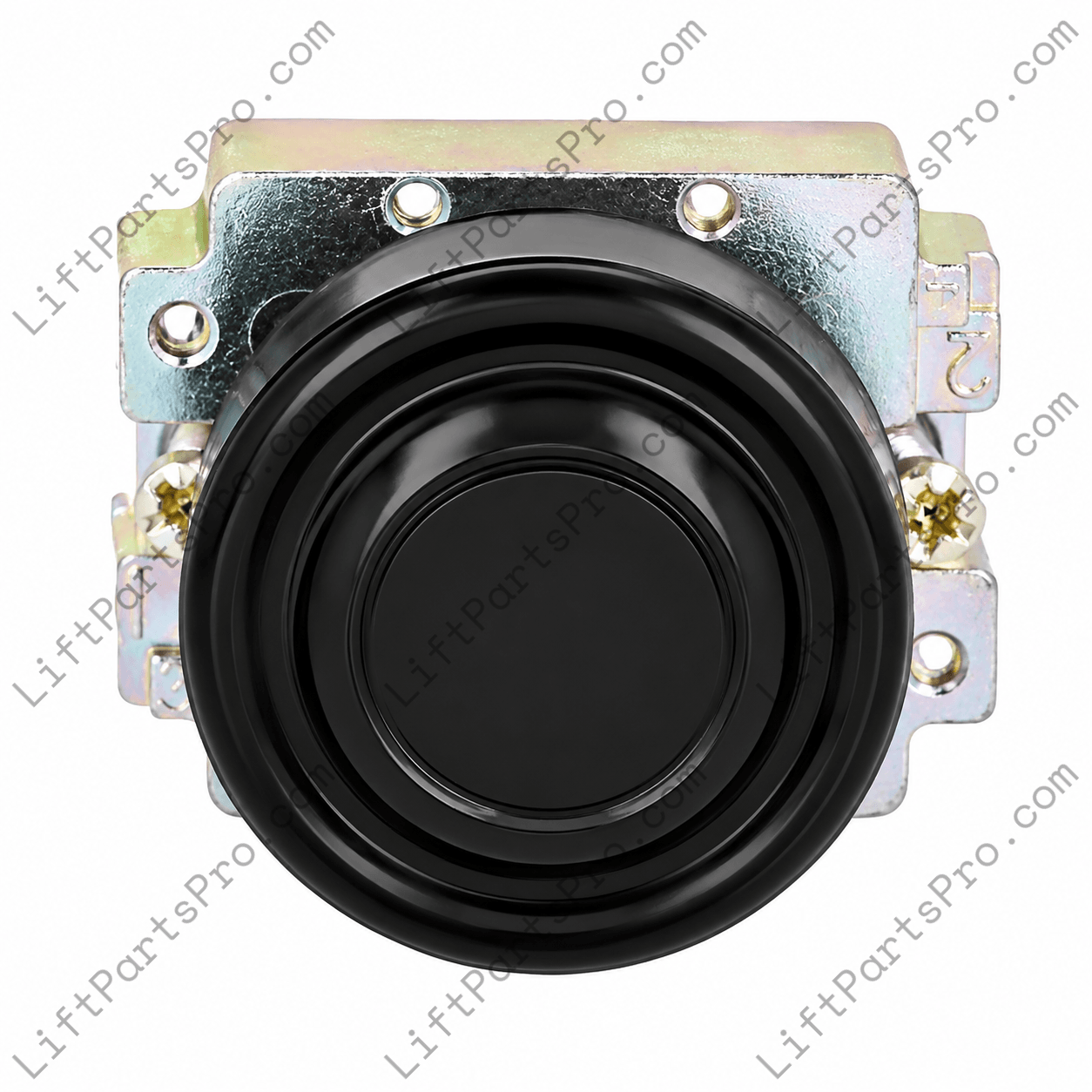

Bruno Rubber Boot Push Button Switch Assembly

This 22mm momentary push button assembly is designed for use in select Bruno accessibility lifts and serves as a replacement for part number PBS-00129.

The assembly includes the push button actuator, weather-protective rubber boot, and mounting bracket, making it an ideal solution when the operator portion of the switch requires replacement.

The rubber boot helps shield the actuator from moisture, dust, and environmental exposure, supporting reliable operation in lift applications.

This component is supplied as the operator assembly only; contact blocks are not included and must be purchased separately when required. Designed for compatibility with standard 22mm control panel openings, this assembly integrates into select Bruno lift control systems that utilize the PBS-00129 push button configuration.

• Replacement for part number: PBS-00129
• Push button type: Momentary operator
• Operator diameter: 22mm
• Button style: Round push button
• Boot style: Weather-protective rubber boot
• Illumination: Non-illuminated
• Includes actuator/operator assembly
• Includes mounting bracket
• Contact blocks not included
• Intended for select Bruno accessibility lift applications
• Panel-mount design

For dependable lift operation, replacement components should be installed and inspected by qualified service personnel. Proper fitment verification and installation practices help maintain the performance and reliability of accessibility equipment.
