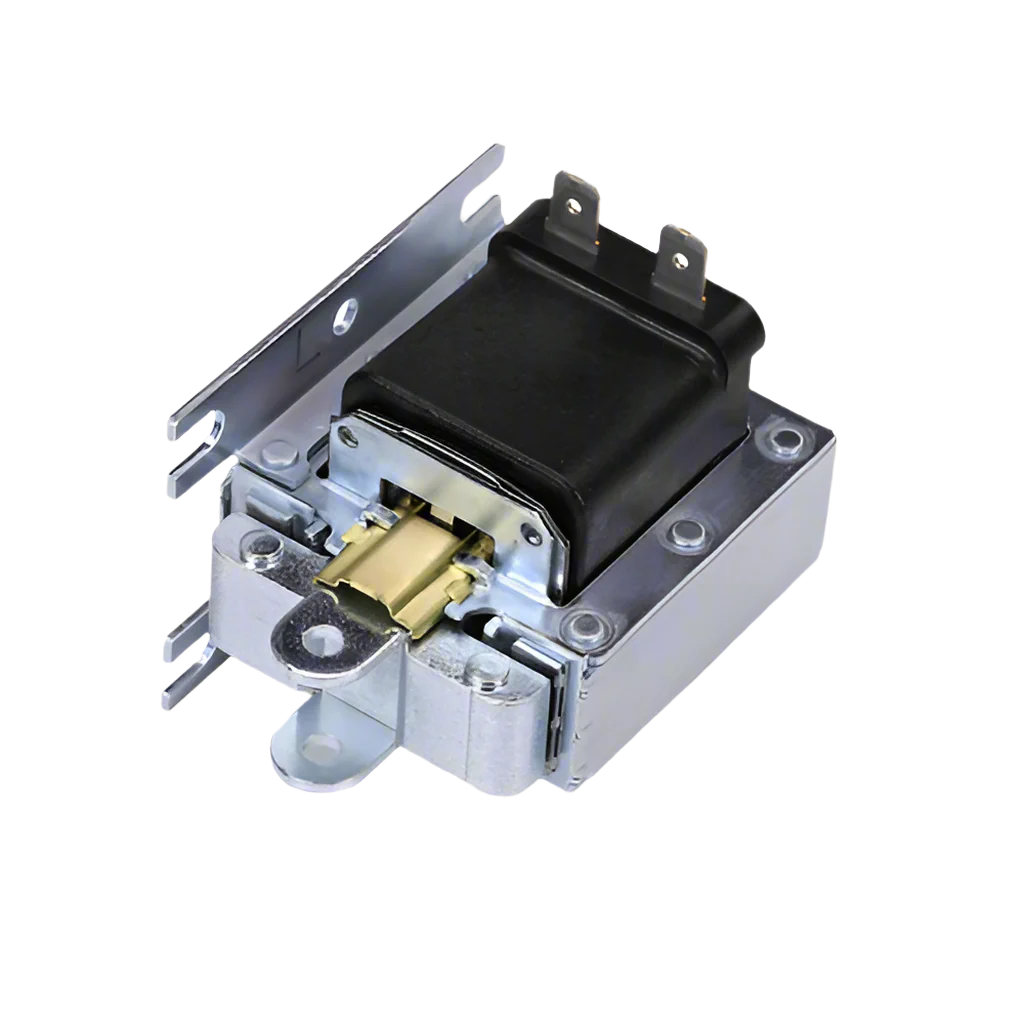

Brake Solenoid - Waupaca, Porch-Lift, and Others

Compatible with: Many Porch-Lift units and Waupaca models including the Estate Lift

Brake Solenoid for Porch-Lift and Waupaca Units

This brake solenoid is a critical component designed to ensure the safe and reliable operation of your Porch-Lift and Waupaca lift systems. It functions by engaging and disengaging the braking mechanism, providing controlled movement and secure stopping of the lift.

Key Specifications:

• Type: AC Laminate Pull Type Solenoid
• Stroke Range: 0 to 1 inch
• Pull Force Range: 96 to 256 ounces
• Voltage: 240 VAC
• Link: 1/8"
• Dimensions:
  • Width: 2.5 inches
  • Depth: 2.62 inches
  • Length: 2.06 inches

Constructed with precision, this solenoid offers a stroke range of up to 1 inch and a pull force ranging from 96 to 256 ounces, ensuring effective engagement of the brake system. Its compact dimensions allow for seamless integration into existing lift assemblies without the need for significant modifications.

Regular inspection and maintenance of the brake solenoid are essential to uphold the safety and functionality of your lift system. Timely replacement of a faulty solenoid can prevent unexpected operational issues and extend the lifespan of your equipment.

Note: For safety and optimal performance, it is recommended that installation and maintenance be performed by qualified personnel familiar with lift systems.
