Porch-Lift

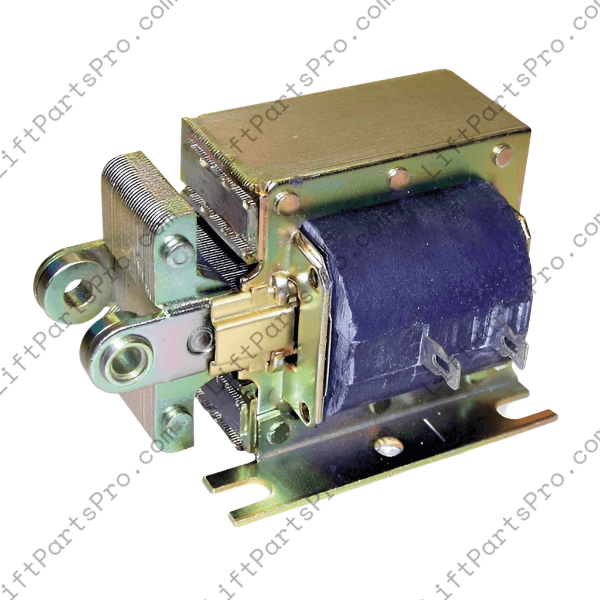

Brake Solenoid - 230/240VAC

Brake Solenoid - 230/240VAC

$159.88 USD
$159.88 USD
Sale Special Order
Shipping calculated at checkout.

🔄 Backorder Available
This item is available for backorder. Estimated lead time is 8 to 14 business days. We’ll send an update once your order is confirmed and provide tracking when it ships.

SKU: SOL.PLS.230

Condition: New

Compatible with many Porch-lift Vertical Platform Lifts (VPLs) and early Waupaca Lifts

Reliable 230/240V laminated brake solenoid for many Waupaca and Porch-lift VPLs; ensures consistent brake release and secure lift operation.

Specifications:

  • Voltage: 240V AC
  • Duty Cycle: Continuous
  • Pull Force: 88 to 168 oz
  • Stroke Range: 1/8" to 1"
  • Coil Terminals: Solder lug
  • Coil Resistance: 60 ohms
  • Mounting Hole Spacing: 2" x 1-5/8"
  • Current Draw: 0.24 A seated, 3.2 A max stroke
  • Dimensions: 2-1/16" W x 2-1/16" D x 2-1/2" L

Compatible with many Porch Lift wheelchairs lifts as well as some of the early Waupaca Lifts. Confirm compatibility using the specifications above.
