Concord Orion Omron Valve PLC Terminal 6 Blocking Diode Harness Kit

This blocking diode kit is intended for applicable Orion elevators using the Omron Valve PLC assembly. The supplied diode harness is installed in the circuit between T3001-Pin 1 of the Omron Valve PLC and Terminal 6 of the main controller board as part of the Savaria Concord specified field retrofit.

The kit provides the diode harness required to complete this wiring update rather than a loose, general-purpose electronic diode. This modification is specifically for Orion units equipped with the applicable Omron valve PLC configuration. Compatibility should be confirmed using the elevator’s controller configuration and data tag information before ordering.

• Application: Savaria Concord Orion elevator
• Part Number 301794
• Component type: Blocking diode harness kit
• Controller application: Omron Valve PLC assembly

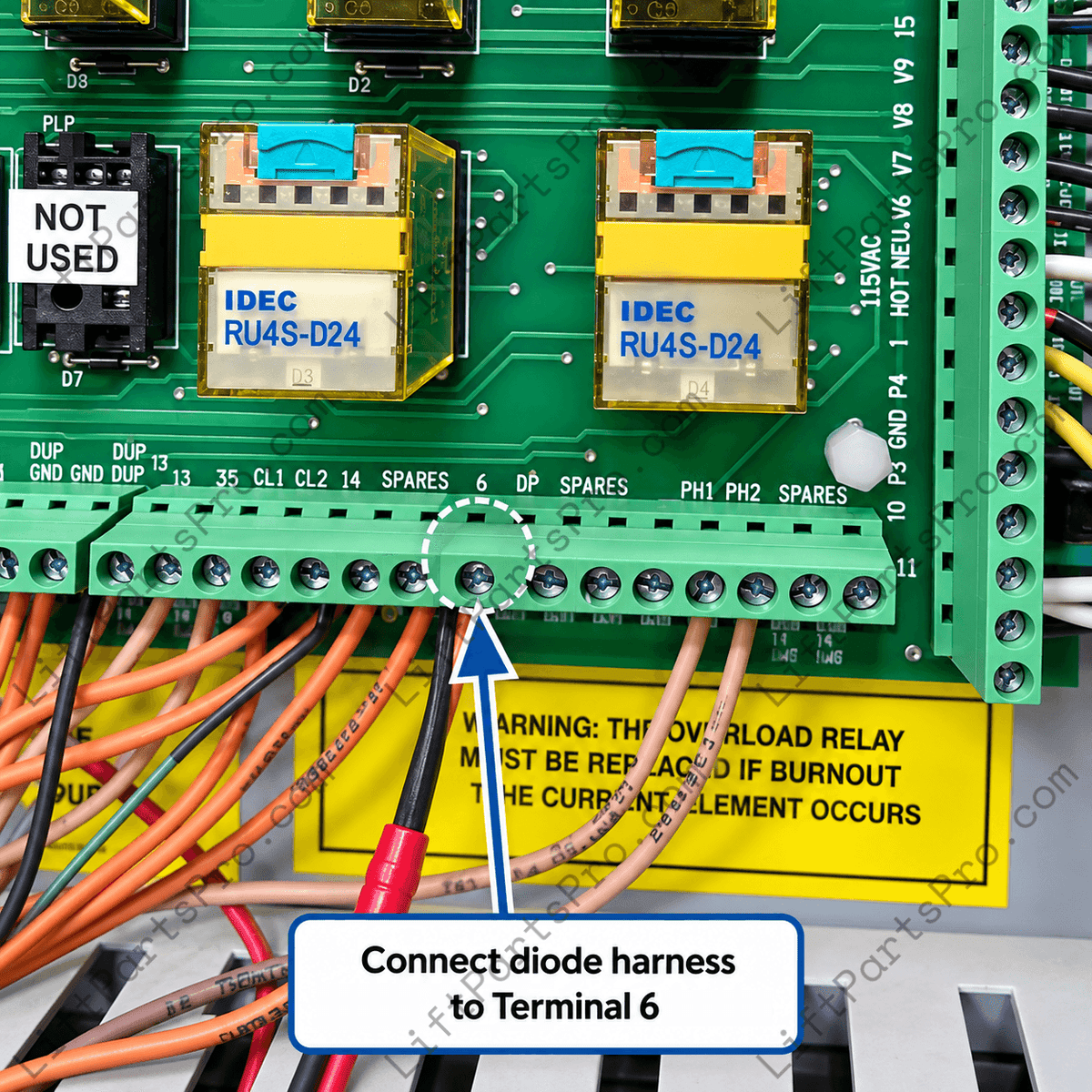

• Connection points: T3001-Pin 1 to main controller board Terminal 6
• Kit contents: Diode harness and retrofit documentation
• Installation type: Controller wiring field retrofit

This electrical retrofit should be performed only by qualified elevator personnel familiar with the applicable Orion control system. Installation, inspection, and testing should follow the manufacturer’s current requirements and all applicable elevator and electrical codes.
