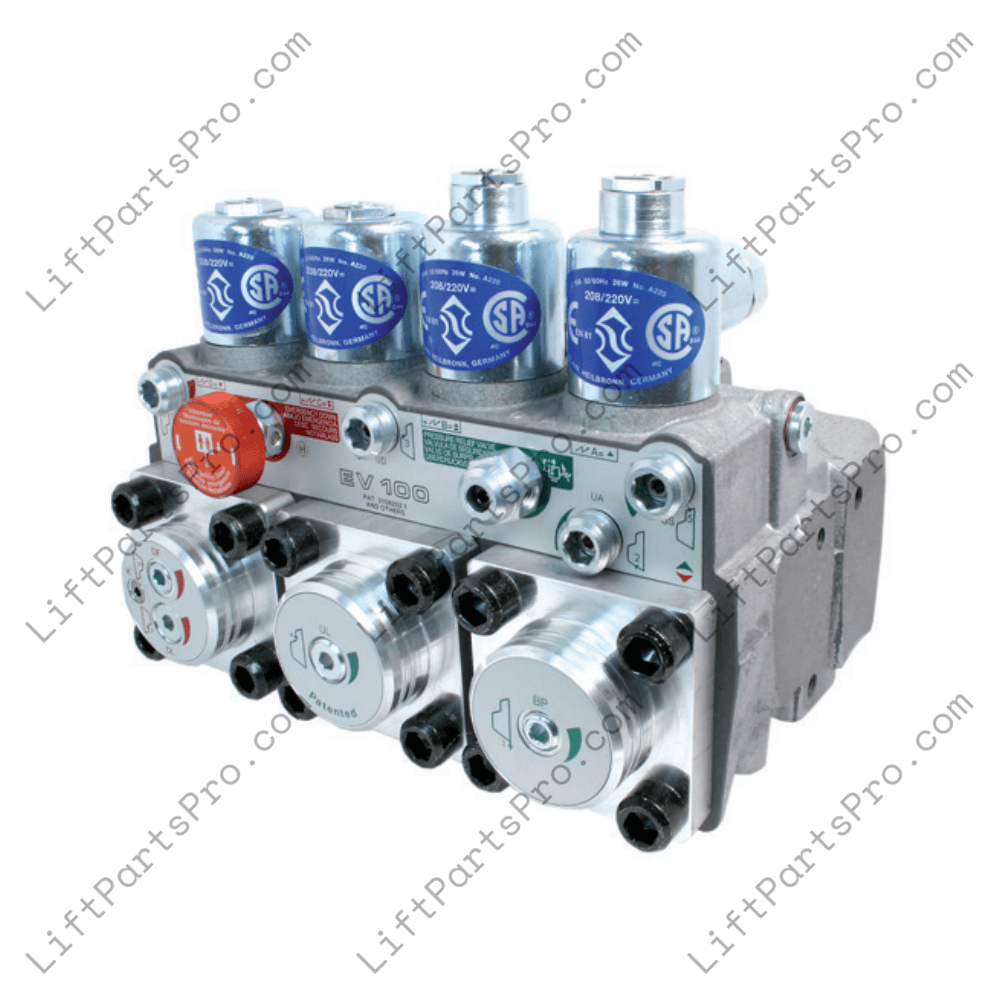

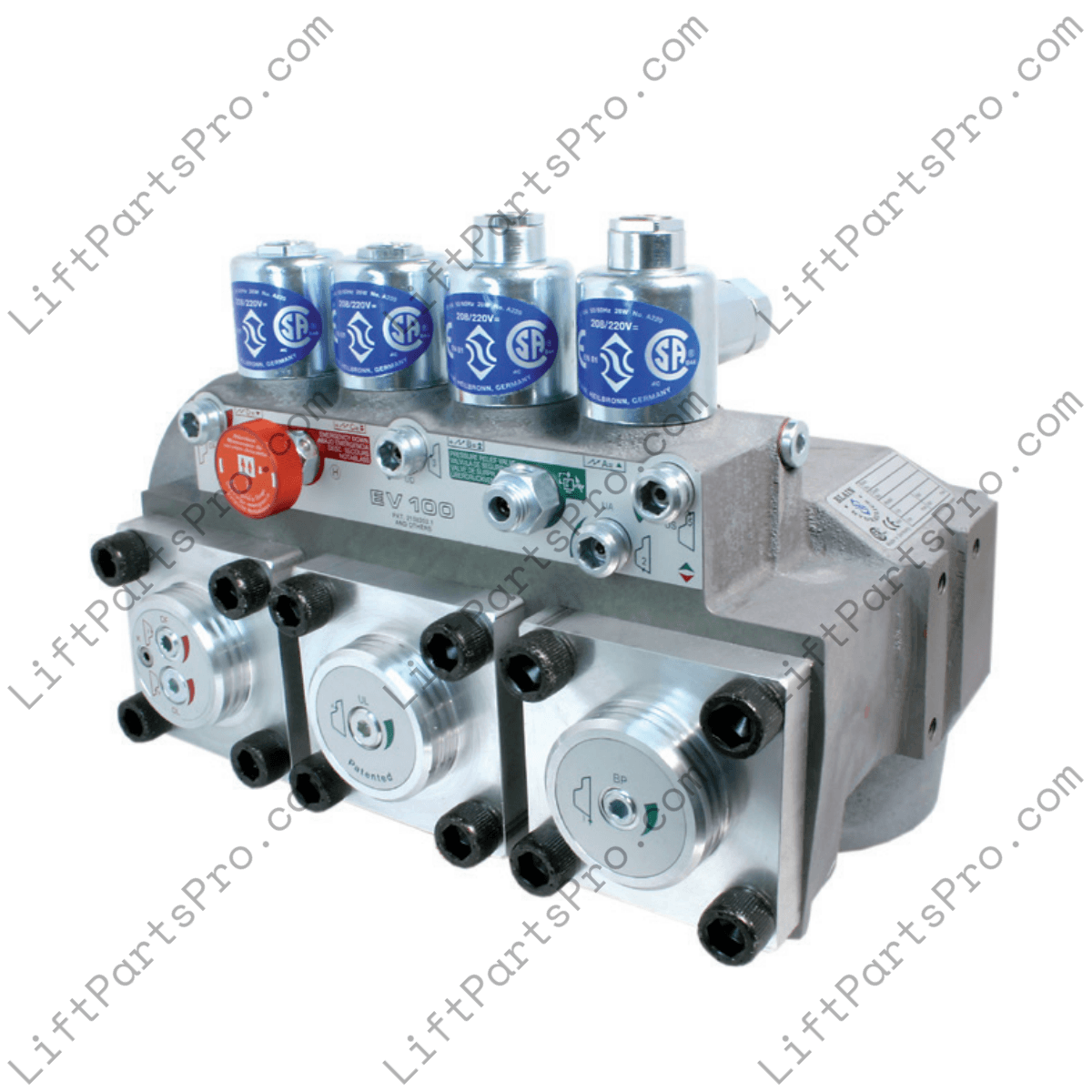

Blain EV100 Hydraulic Elevator Control Valve - 3/4" (Residential)

The Blain EV-100 hydraulic control valve (¾″) is one of the most reliable and widely used valves in the residential elevator industry. Built with patented pilot-compensation technology, this valve delivers smooth rides, precise stops, and dependable performance under varying loads and temperatures.

Whether you’re upgrading an existing elevator system or installing new equipment, the EV-100 offers dual-speed travel (full + leveling), hardened long-life components, and easy field adjustability—making it the preferred choice for residential and light commercial applications.

Key Features

• Dual-Speed Control – full speed + leveling for both up and down travel.
• Smooth & Precise Stops – pilot-compensated for accuracy under all load conditions.
• Durability Built-In – self-cleaning filters, hardened bore surfaces, IP68 solenoids.
• Wide Compatibility – works with across-the-line or wye-delta starting systems.
• Customizable Flow Guides – available in 6 flow guide sizes to match your system.

Specifications

Important: Configuration Required

Every EV-100 valve must be configured to your elevator’s specifications before shipment.
After purchase, please provide the following information so we can ensure the correct flow guide size and setup:

Please complete after checkout and return to info@liftpartspro.com:

1. Roped or Direct
   Direct = piston directly under the cab. Roped = piston with sheaves/ropes to reduce piston length.
   ☐ Roped
   ☐ Direct
2. Cylinder Type
   ☐ Standard (single piston)
   ☐ Telescopic (multi-stage piston)
3. Piston Diameter (inches or mm)
4. Number of Cylinders
5. Travel Speed (ft/min)
6. Empty Cab Weight (lbs)
7. Cab Weight with Full Load (lbs)
8. Up Leveling Speed (Yes/No)
   Slow corrective speed to nudge cab upward into exact floor level if it stops slightly low.
9. Up Smooth Stop (Yes/No)
   Slows the elevator slightly before finishing upward travel, preventing a hard bump.
10. Down Leveling Speed (Yes/No)
    Corrective speed for downward stops—lowers cab gently if it stops slightly high.

If you’re looking for a residential hydraulic elevator control valve, Blain EV-100 valve replacement, or 3/4″ elevator hydraulic valve, this is the industry standard solution. The EV-100 is compatible with many residential lift brands and is known for its long service life, easy adjustment, and safe performance.

Disclaimer: Installation and adjustment of elevator control valves should only be performed by qualified elevator technicians. Improper setup may affect safety and performance.
