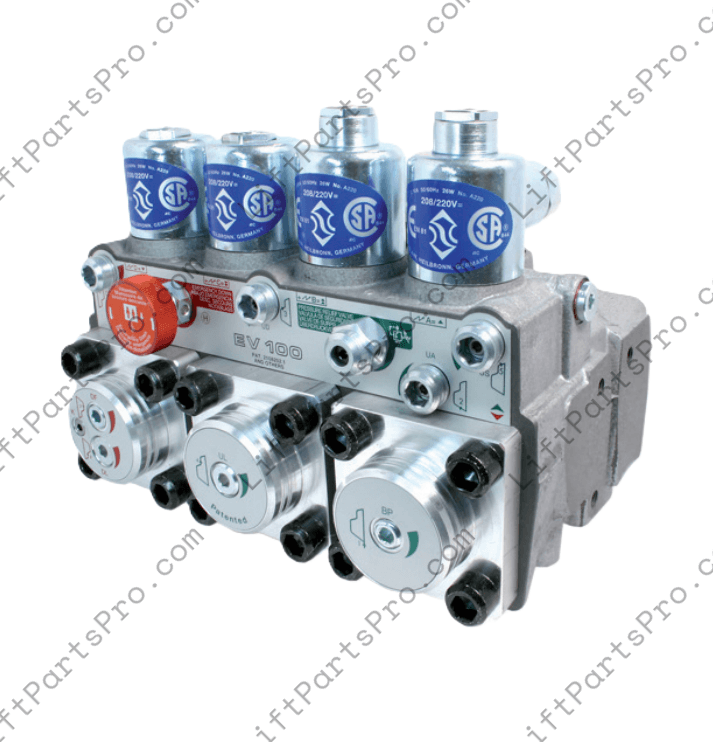

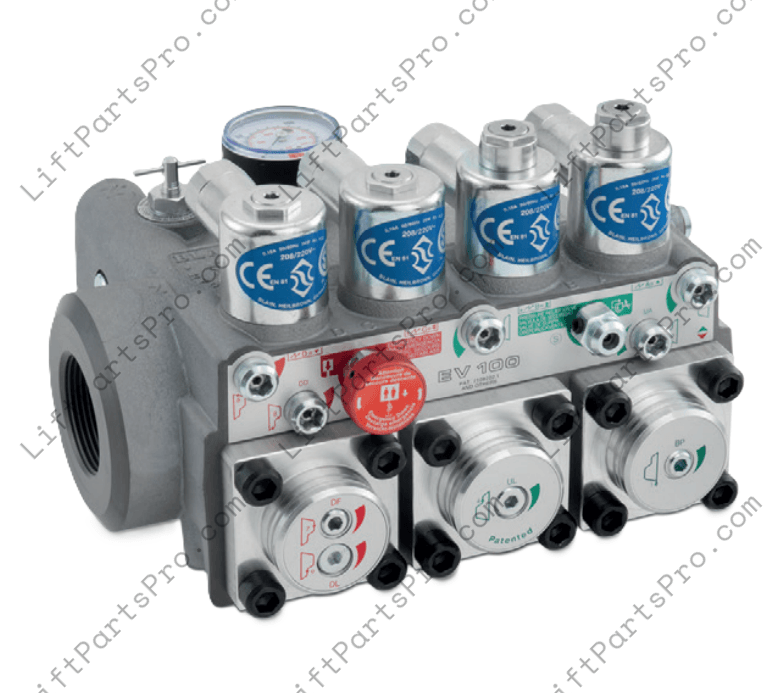

Blain EV100 Hydraulic Elevator Control Valve - 2" Port Size

Heavy-duty 2" hydraulic elevator control valve with 4x 110V AC CSA-certified solenoids; supports 211 GPM flow and up to 100 bar pressure.

The 2" Blain EV100 Elevator Control Valve is engineered for high-performance elevator applications requiring precise control and durability. This model is equipped with four 110V AC CSA-approved coils, rated for continuous duty and sealed to IP68, ensuring consistent operation even in demanding environments. With a flow range up to 800 liters per minute and adjustable features for acceleration, deceleration, and levelling, this valve supports smooth travel and exact stopping. Its robust design includes Rockwell-hardened bore surfaces and integrated turbulence suppression for extended service life and reduced maintenance.

• Port Size: 2"
• Flow Range: 30–800 L/min (8–211 US gpm)
• Pressure Range: 8–100 bar (116–1450 psi)
• Pressure Drop (P–Z): 4 bar at 800 L/min
• Burst Pressure: 505 bar (7324 psi)
• Weight: 10 kg (22 lbs)
• Coil Configuration: 4 x 110V AC CSA-certified solenoids (0.43 A, 50/60 Hz)
• Insulation Class: IP68
• Oil Viscosity Range: 25–60 cSt at 40°C
• Max Oil Temperature: 70°C
• Ambient Temperature Range: 0°C to 70°C

This control valve must be installed by trained professionals familiar with hydraulic elevator systems. Proper installation and periodic inspection are essential to ensure continued safety, performance, and compliance with applicable codes.
