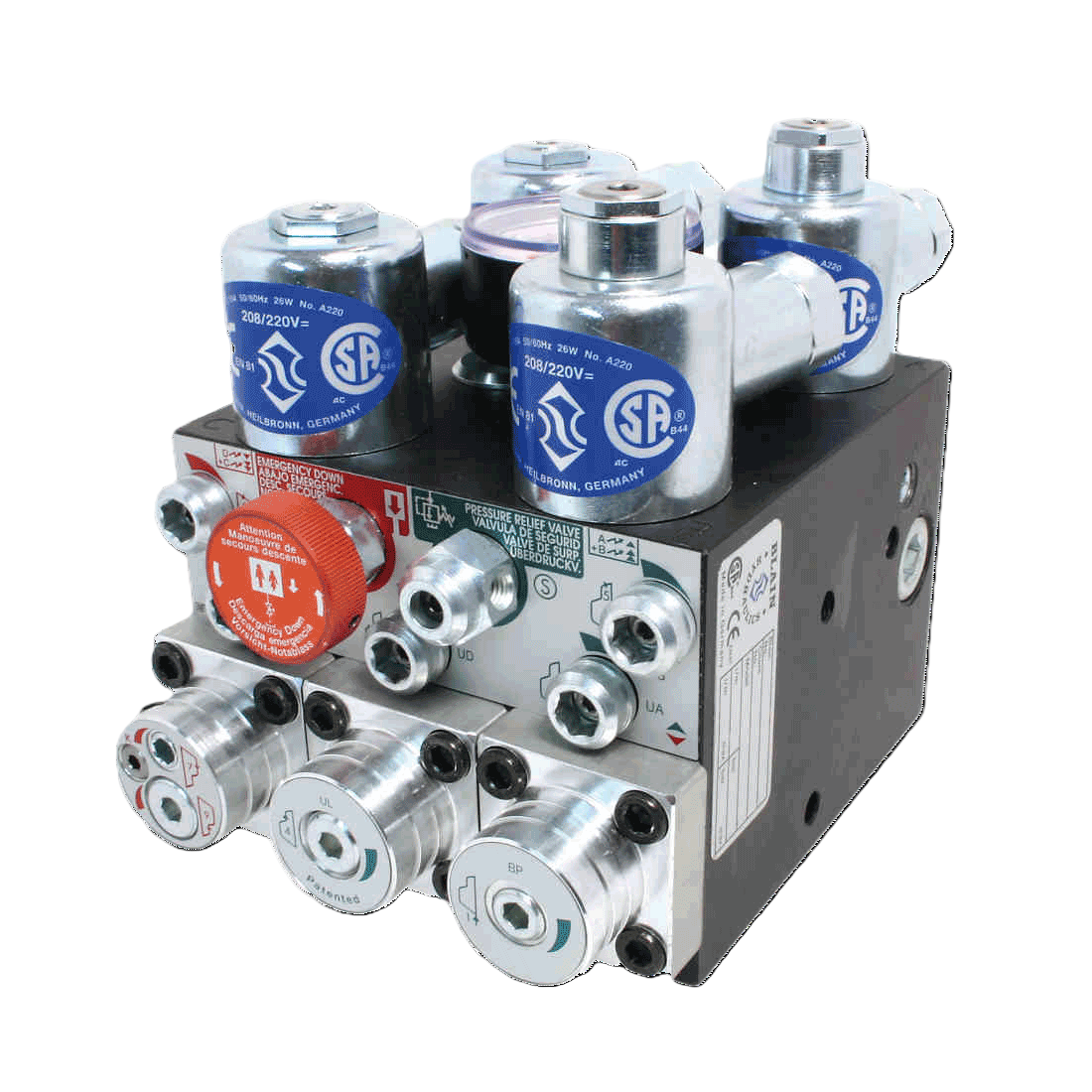

Blain EV10 Hydraulic Control Valve for National Wheel-O-Vator Destiny & Evolution

Custom-configured replacement hydraulic valve for NWOV Destiny & Evolution elevators, using Blain EV10 design to replace legacy #L1283. Special order required.

This replacement hydraulic control valve is a purpose-built substitute for National Wheel-O-Vator Destiny and Evolution models, engineered using the highly adaptable Blain EV10 platform. It supports custom configurations tailored to your elevator’s piston diameter, pump flow, empty car weight, and payload capacity. The EV10 series is recognized for smooth ride quality, consistent stopping precision, and long-term reliability under demanding hydraulic elevator conditions.

• Compatible with hydraulic systems using VG46 oil (25–60 cSt at 40°C)
• Pressure range: 8–100 bar (116–1450 psi)
• Port sizes vary by flow: ¾", 1½", 2", or 2½"
• Flow capacity: up to 1530 l/min (404 US gpm)
• Self-cleaning filters and temperature-compensated control
• Hardened internal bore surfaces (70 HRc Rockwell)
• Solenoids: 24V–230V, AC or DC options
• IP68-rated solenoid insulation

To process your order, please email the following required specs to support@liftpartspro.com after purchase:

1. Piston Diameter (inches)
2. Pump Flow (GPM)
3. Empty Car Weight (LB or KG)
4. Payload Capacity (LB or KG)

This is a special order product built to your elevator’s specifications. It is non-returnable, non-exchangeable, and non-refundable. Sales are limited to licensed technicians with relevant experience. Lift Parts Pro provides no technical guidance for this item; installation should be performed using the generic Blain instructions provided with the valve. Proper installation and configuration are the sole responsibility of the qualified technician.
