Battery charger for Bruno VPLs - Cost‑effective Alternative to BCR‑24020

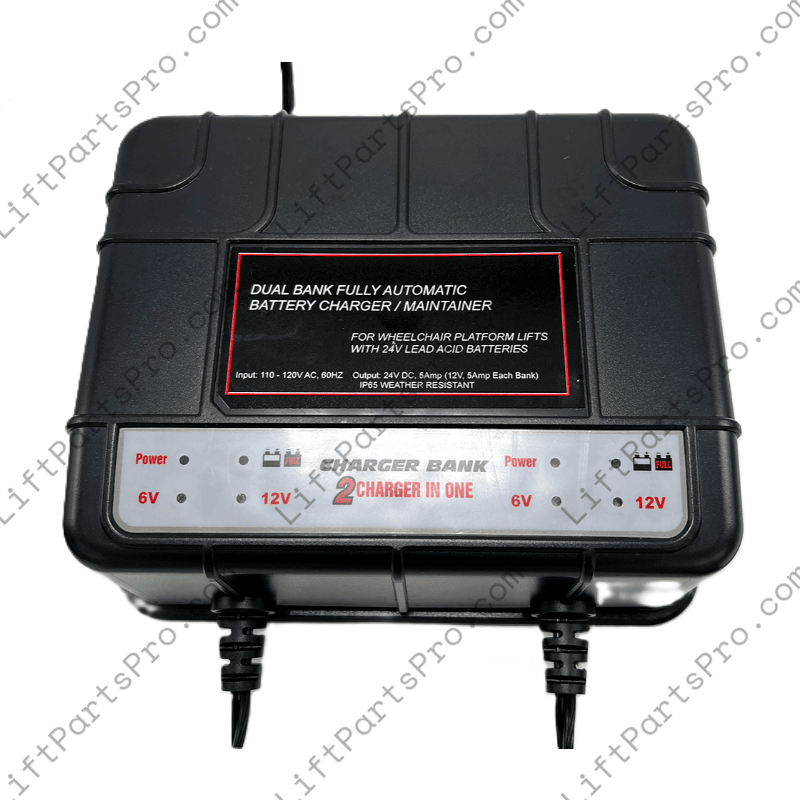

This 24 V, 5 A smart 3‑stage charger delivers a reliable charging solution for many Bruno wheelchair platform lifts.

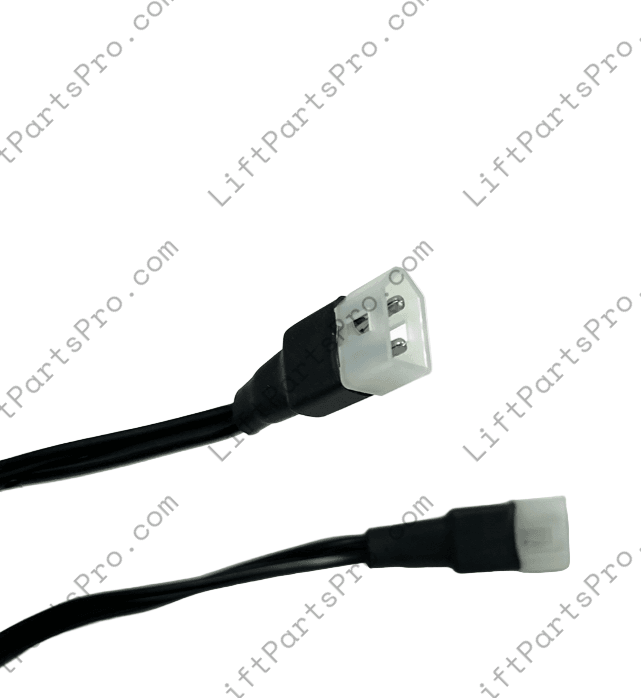

This charger is designed specifically to replace the OEM BCR‑24020 and is suitable for many Bruno vertical platform lift (VPL) systems (for example, the VPL‑3300 series including VPL‑3353B). It outputs 24 VDC at up to 5 A through dual connectors, supporting full battery recharging without overcharge. The unit is rated for indoor or outdoor use, with weatherproof housing and onboard protections including short‑circuit, over‑voltage, and over‑charging safeguards. The charger is especially useful as a more economical replacement to OEM while maintaining compatibility.

• Output: 24 VDC, 5 A (three‑stage smart charge)
• Input: standard AC line (100–240 VAC)
• Housing: weatherproof / outdoor rated (IP65)
• Dimensions: 6.25″ × 8.00″ × 3.25″
• AC cable length: 6 ft
• DC (output) cable length: 5 ft
• Safety features: overcurrent protection, overvoltage protection, reverse polarity protection
• Warranty: 1 year (against manufacturing defects)

We are confident this charger offers a dependable and compatible solution for many Bruno platform lift systems in need of a BCR‑24020 replacement. Please ensure installation is performed by qualified personnel using proper safety procedures.
