AmeriGlide Harmar 90VDC Motor Brake Assembly
AmeriGlide Harmar 90VDC Motor Brake Assembly
🔄 Backorder Available
This item is available for backorder. Estimated lead time is 8 to 14 business days. We’ll send an update once your order is confirmed and provide tracking when it ships.
LPP Part Number: MB.AG.90VDC
Condition: New
Couldn't load pickup availability

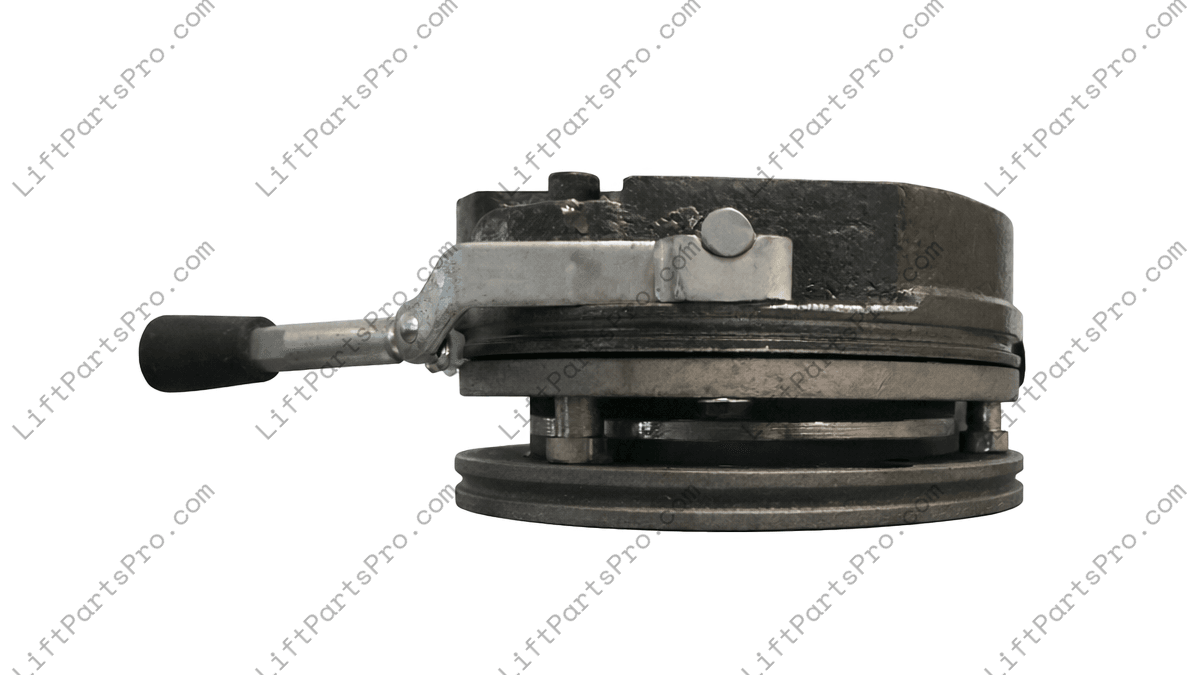

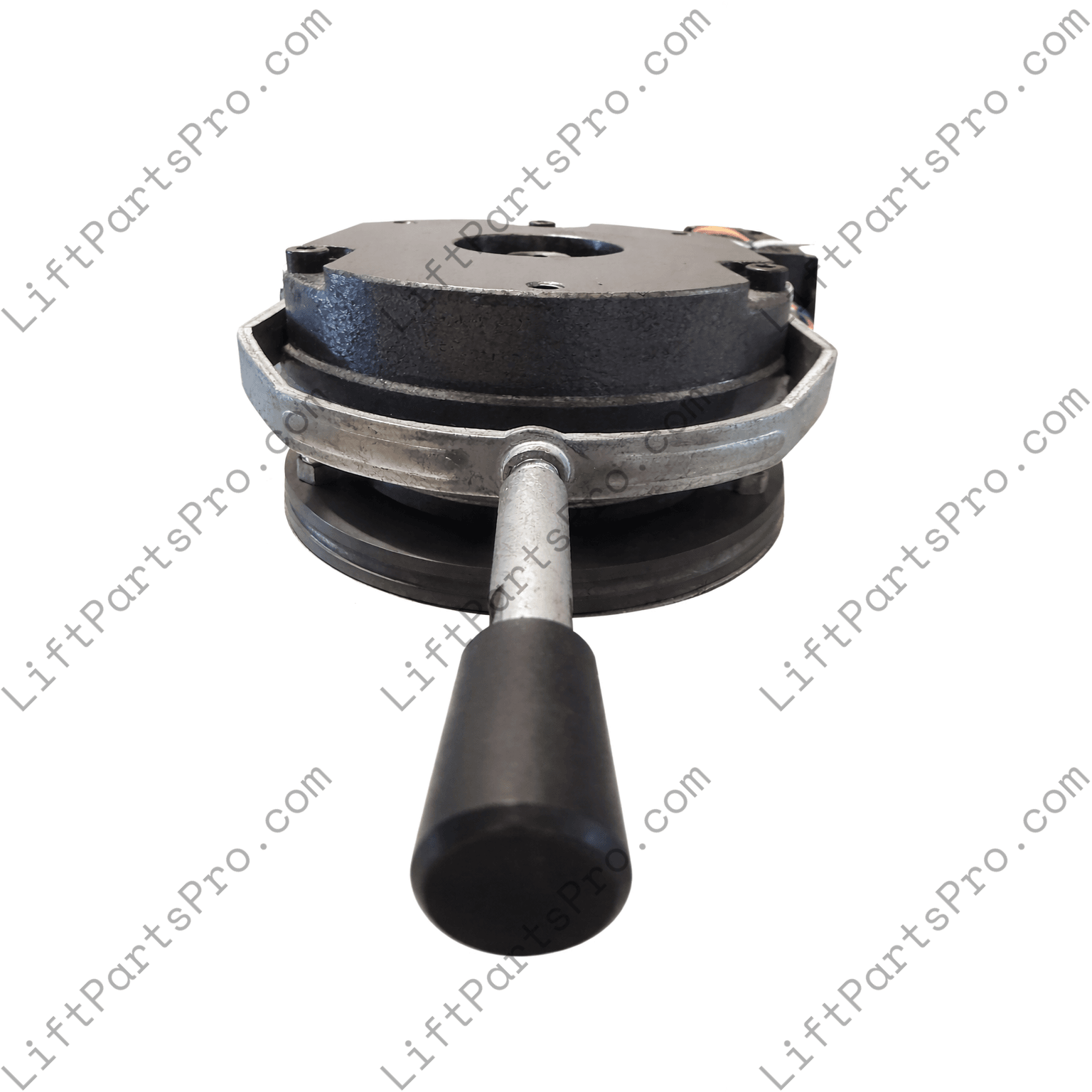

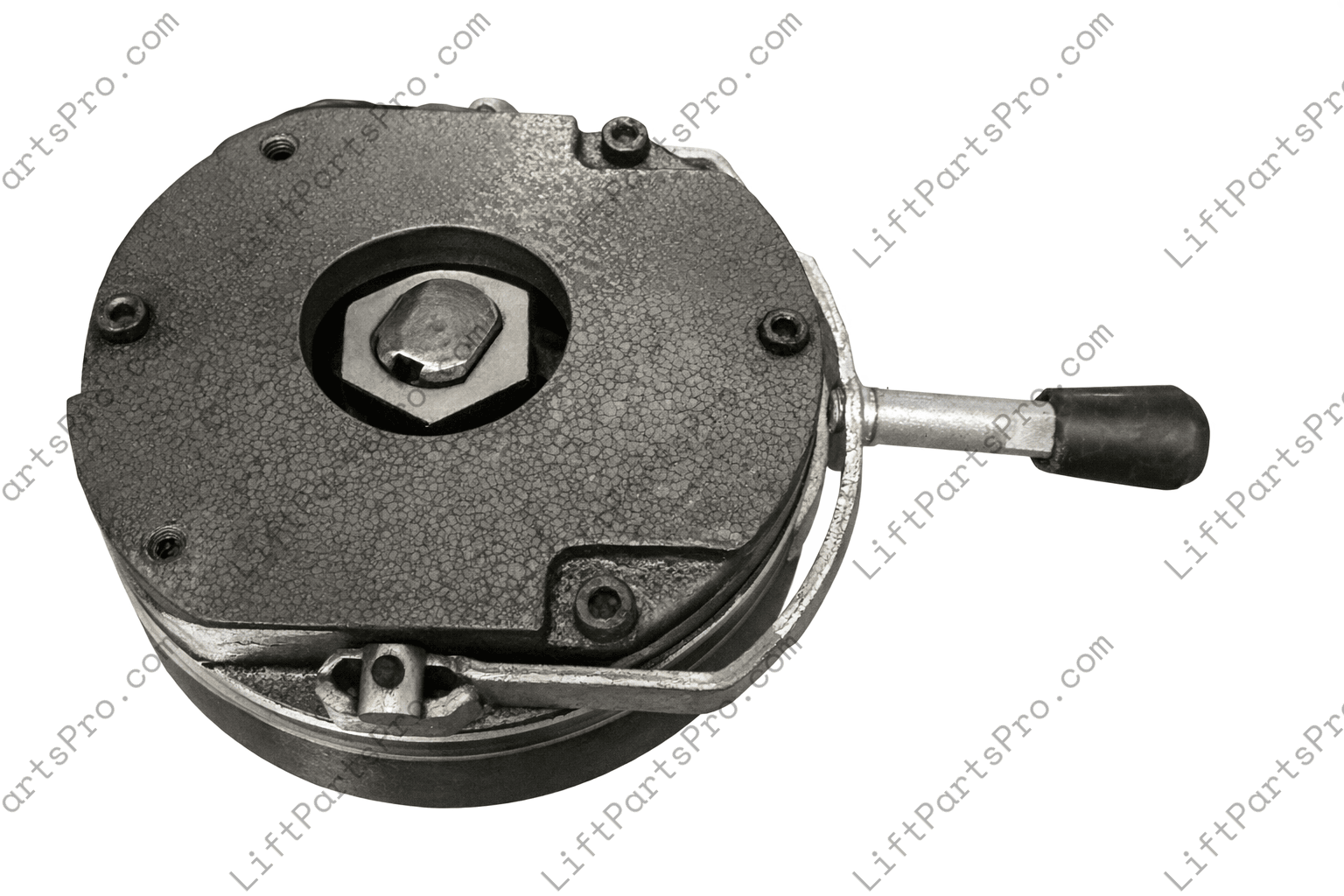

90VDC magnetic brake assembly with manual release handle designed for select Harmar AmeriGlide Hercules II 750 series vertical platform lifts.
This 90VDC magnetic brake assembly is designed for use on select Harmar AmeriGlide vertical platform lifts, including models within the Hercules II 750 series.
The unit functions as a holding and stopping mechanism within the lift drive system, engaging automatically to maintain controlled operation when power is removed.
The integrated manual brake release handle allows authorized personnel to disengage the brake when required for servicing or controlled movement of the platform. This assembly serves as a direct replacement for earlier legacy brake assemblies previously used on compatible lift systems.
- Voltage: 90V DC
- Component Type: Magnetic brake assembly
- Integrated Feature: Manual brake release handle
- Application: Vertical platform lift drive systems
- Compatibility: Select Harmar AmeriGlide lifts including Hercules II 750 series
- Replacement For: Legacy brake assembly used on earlier compatible units
For safety and system integrity, lift components should always be installed and serviced by qualified personnel familiar with accessibility lift equipment and applicable service standards.
