ACLA Guide Shoe Insert Liner for ThyssenKrupp ISIS 5/8 in Rail

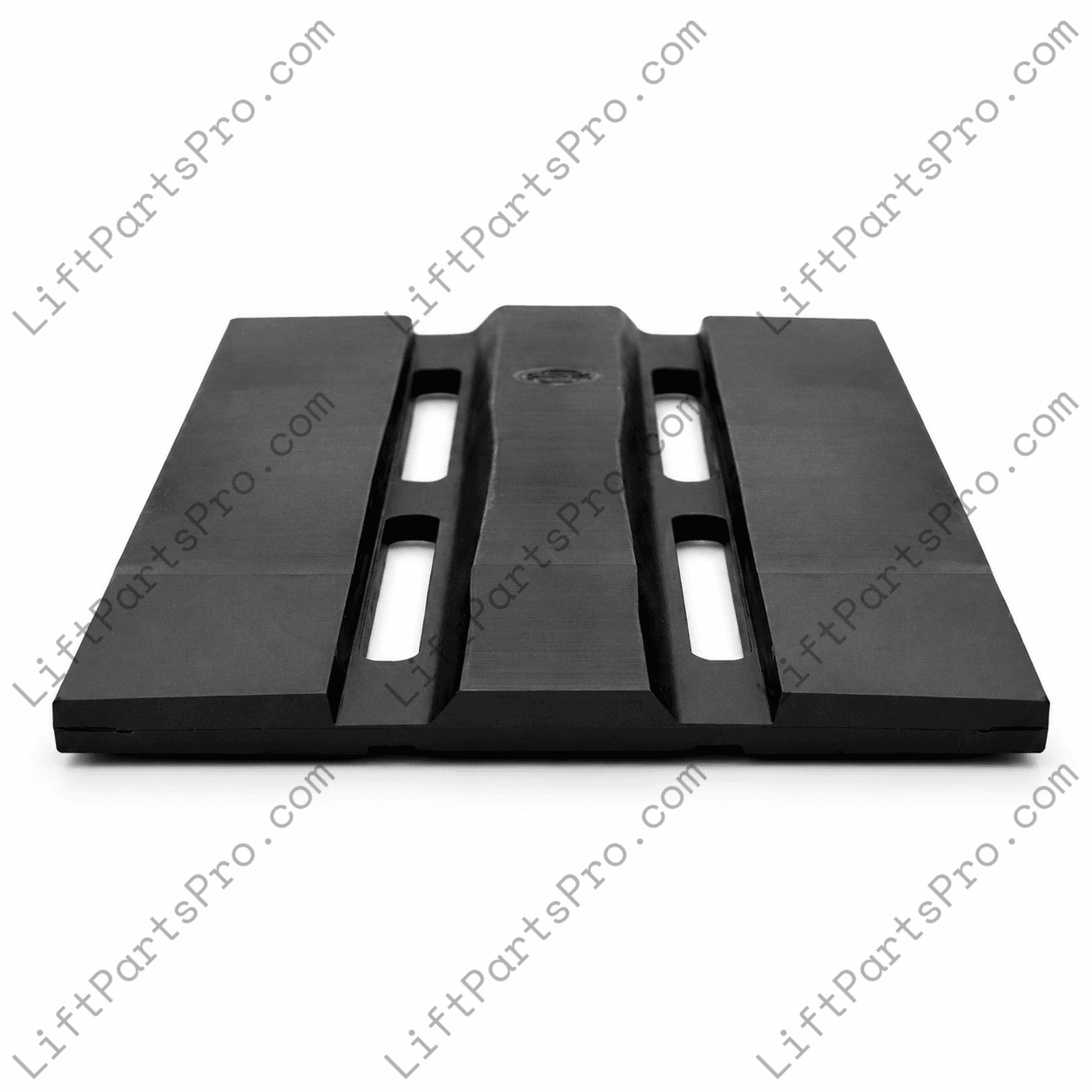

This OEM ACLA guide shoe insert liner is designed as a replacement wear component for select ThyssenKrupp ISIS elevator guide shoe assemblies using 5/8 in (16 mm) guide rails. Manufactured with a convex profile, the liner is engineered to fit within the guide shoe assembly and provide consistent rail contact for smooth elevator operation.

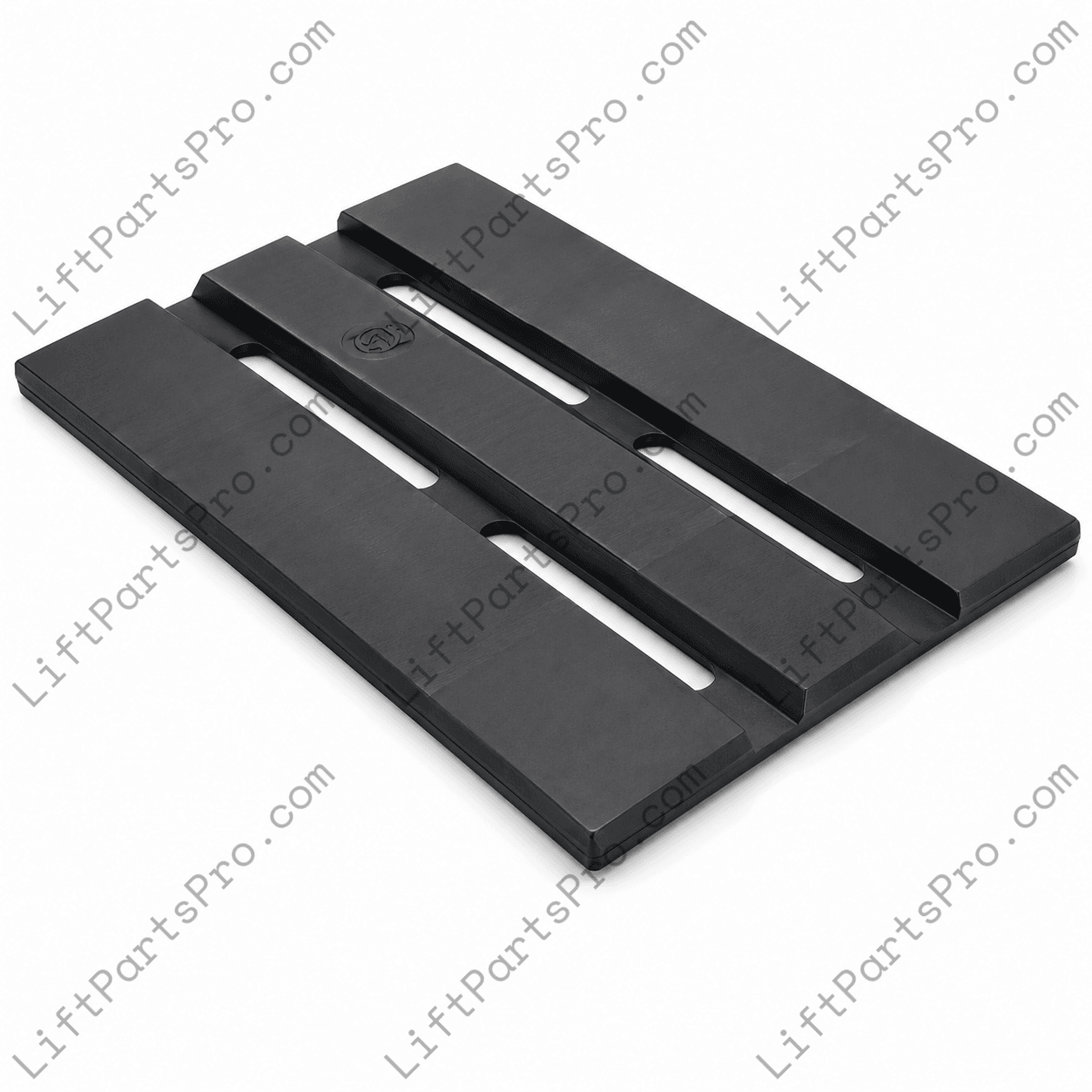

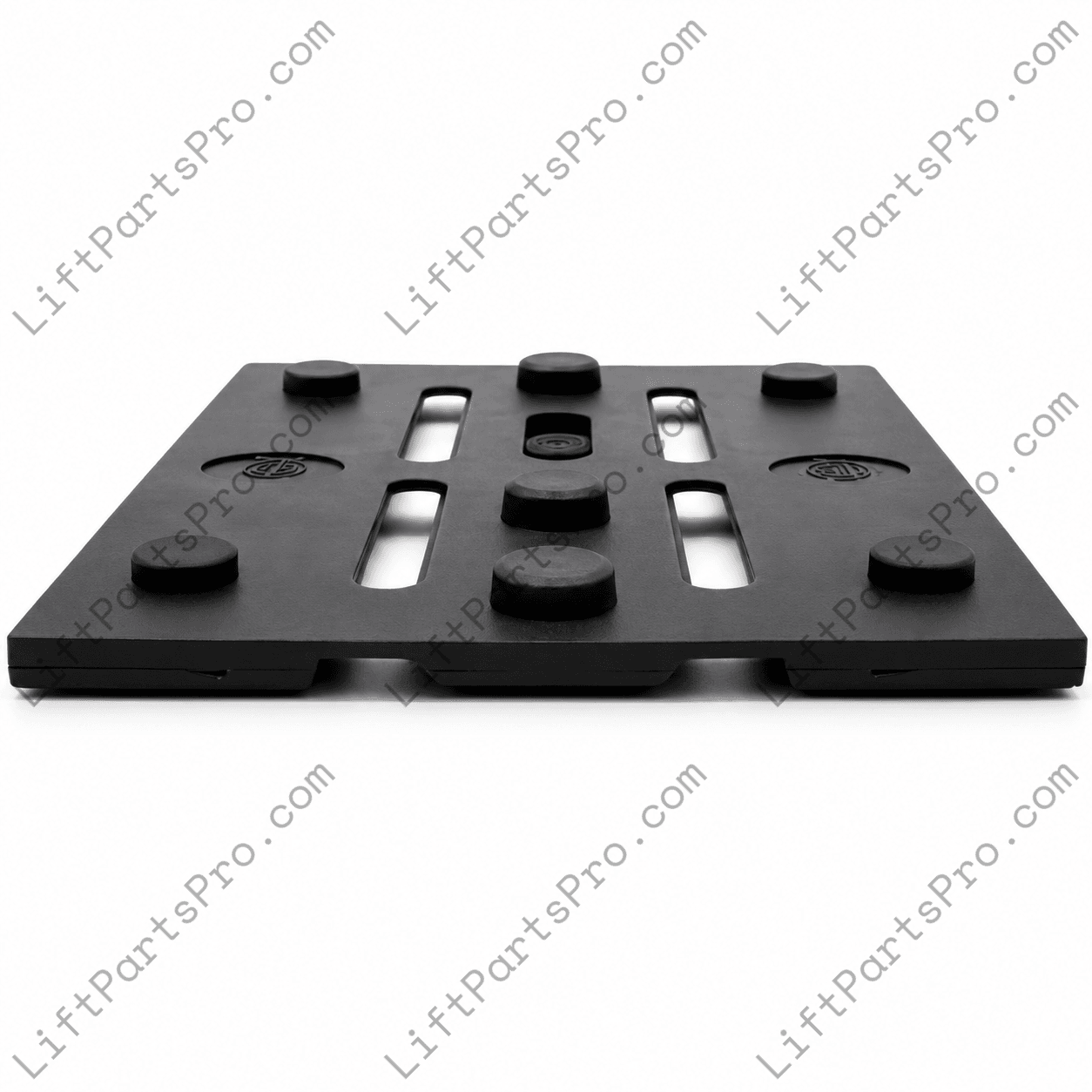

For easier identification, this insert is also known by part numbers 9862345 and N01475. The replacement liner is supplied flat for shipping and storage, then assembled into the guide shoe to achieve its installed profile. When assembled, the insert measures 140 mm × 29.5 mm × 30 mm, providing the intended fit for compatible applications.

• OEM ACLA convex guide shoe insert liner
• Compatible with select ThyssenKrupp ISIS elevators
• Designed for 5/8 in (16 mm) guide rails
• Also known as: 9862345, N01475

• Ships flat for assembly into the guide shoe
• Assembled dimensions: 140 mm × 29.5 mm × 30 mm
• Replacement insert only; guide shoe assembly not included

Using genuine OEM replacement components helps maintain the intended fit and performance of your elevator equipment. Installation and inspection should always be performed by qualified elevator personnel in accordance with applicable codes and manufacturer requirements.
