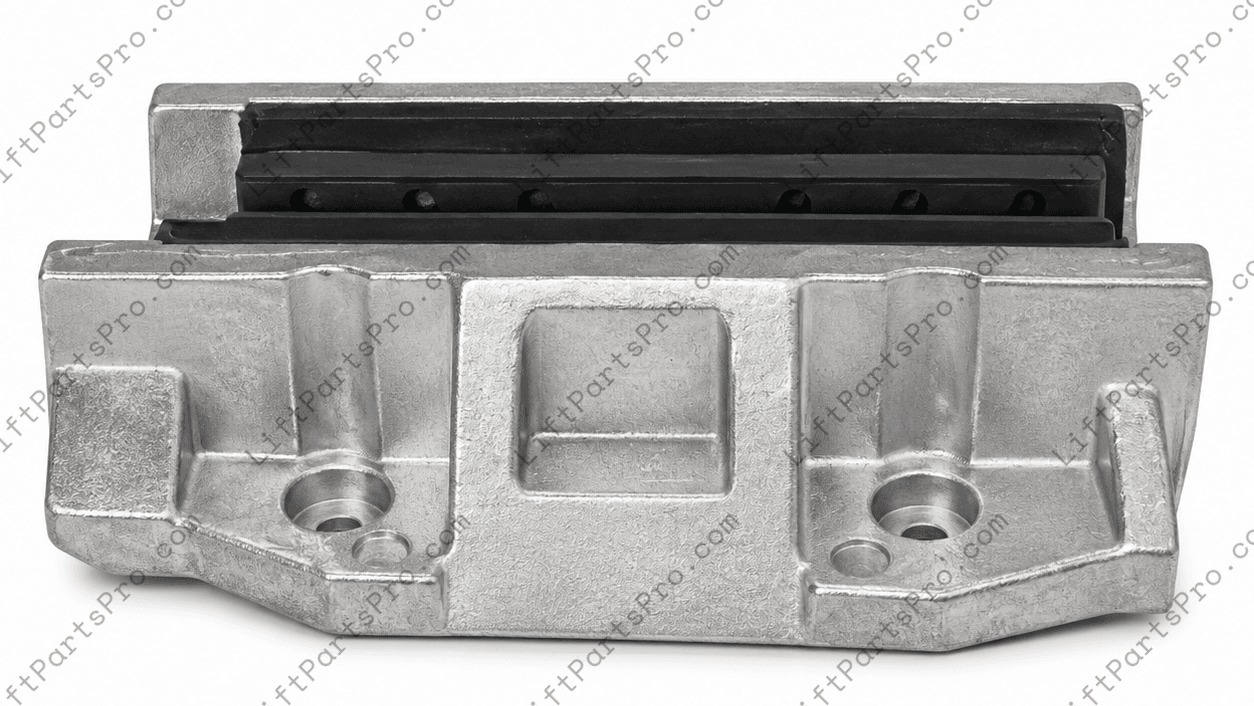

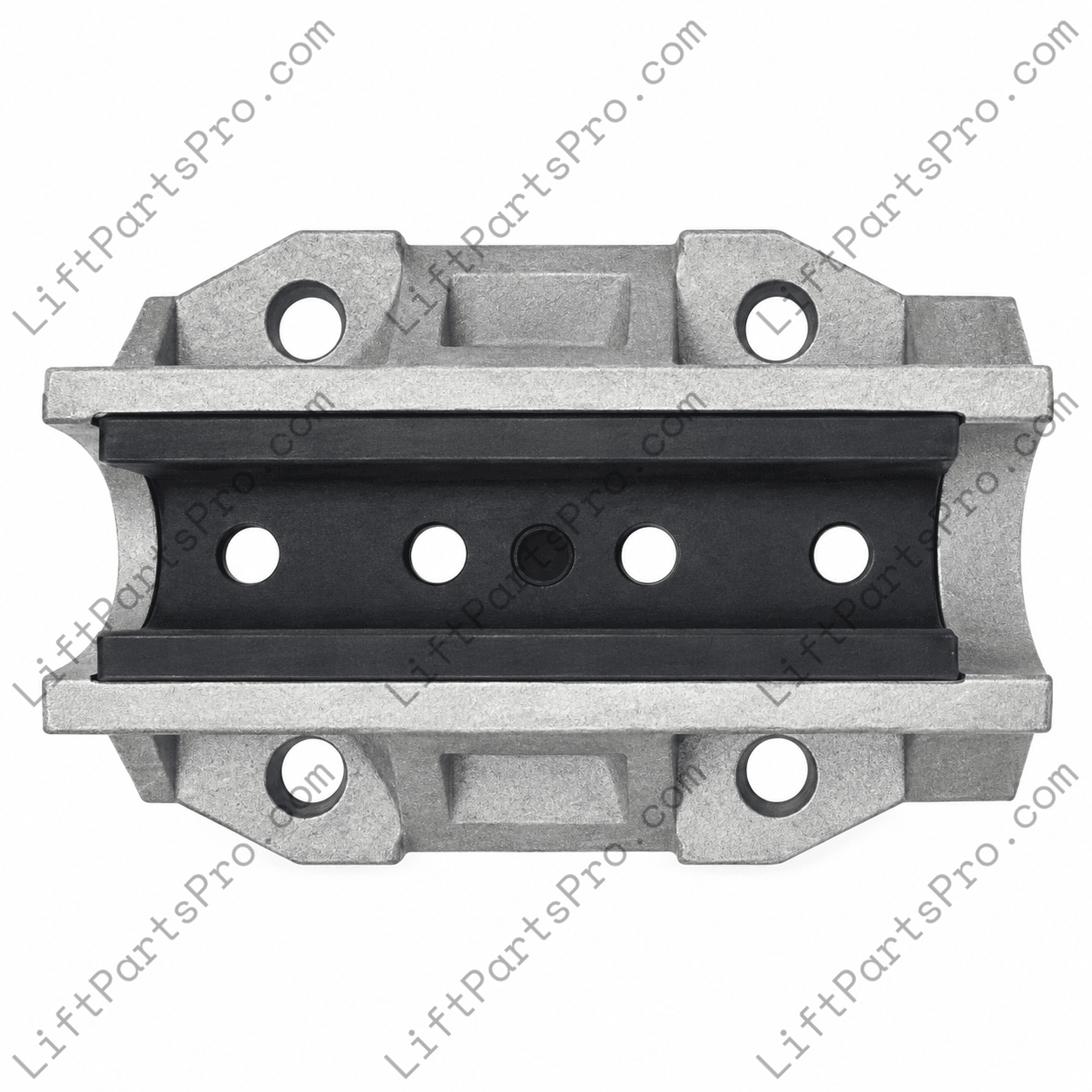

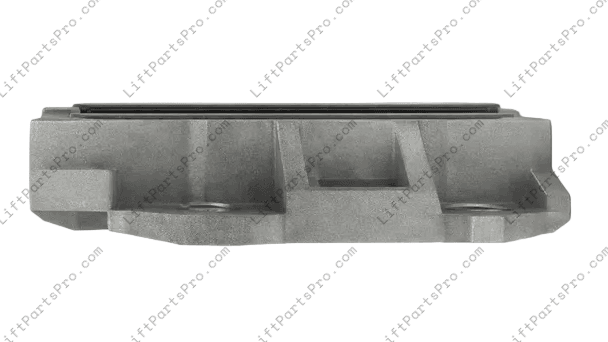

ACLA Guide Shoe Assembly with Insert for ThyssenKrupp ISIS 170 x 120 mm

This OEM ACLA guide shoe assembly is designed for use on select ThyssenKrupp ISIS elevator systems where dependable rail guidance and smooth operation are required. Supplied as a complete assembly with the guide insert installed, it provides a direct replacement solution for worn or damaged guide shoe assemblies.

For easier part identification, this assembly is also known by numbers 9719346 and N01460. These reference numbers can help match existing equipment during maintenance or replacement while ensuring compatibility with the intended application. Its compact design and OEM construction make it well suited for maintaining the original performance and fit of compatible elevator systems.

• OEM ACLA guide shoe assembly with insert
• Compatible with select ThyssenKrupp ISIS elevators
• Part number reference: 9719346, N01460
• Overall dimensions: 170 × 120 × 44 mm (6.69 × 4.72 × 1.73 in)
• Complete assembly with installed guide insert
• Precision-machined metal housing
• Designed for sliding guide rail applications

Using genuine OEM replacement components helps maintain the intended fit and performance of your elevator equipment. Installation and inspection should always be performed by qualified elevator personnel in accordance with applicable codes and manufacturer requirements.
