Access Industries LEV Elevator Door Interlock - ESI Replacement

This Honeywell lock is engineered to replace aging safety locks on select Access Industries LEV elevators, replacing 2123301 with a modern RJ45 CAT5 connection.

Upgrade aging elevator door safety hardware with a Honeywell elevator interlock designed to replace legacy locks used on select Access Industries LEV elevators. Available in both left-hand and right-hand configurations, this interlock provides a modern replacement for older ESI-style locks commonly found on legacy accessibility lifts.

This interlock replaces several legacy lock styles historically installed on LEV elevators, including older ESI units and locks marked with RDI-A-L, RDI-A-R, RDI-H-L5P1, and RDI-H-R5P1.
It is available in both left-hand and right-hand configurations to match the original installation orientation. Lock handing is determined from the outside of the elevator cab looking inward: a left-hand lock installs on the left side of the doorway, while a right-hand lock installs on the right side.

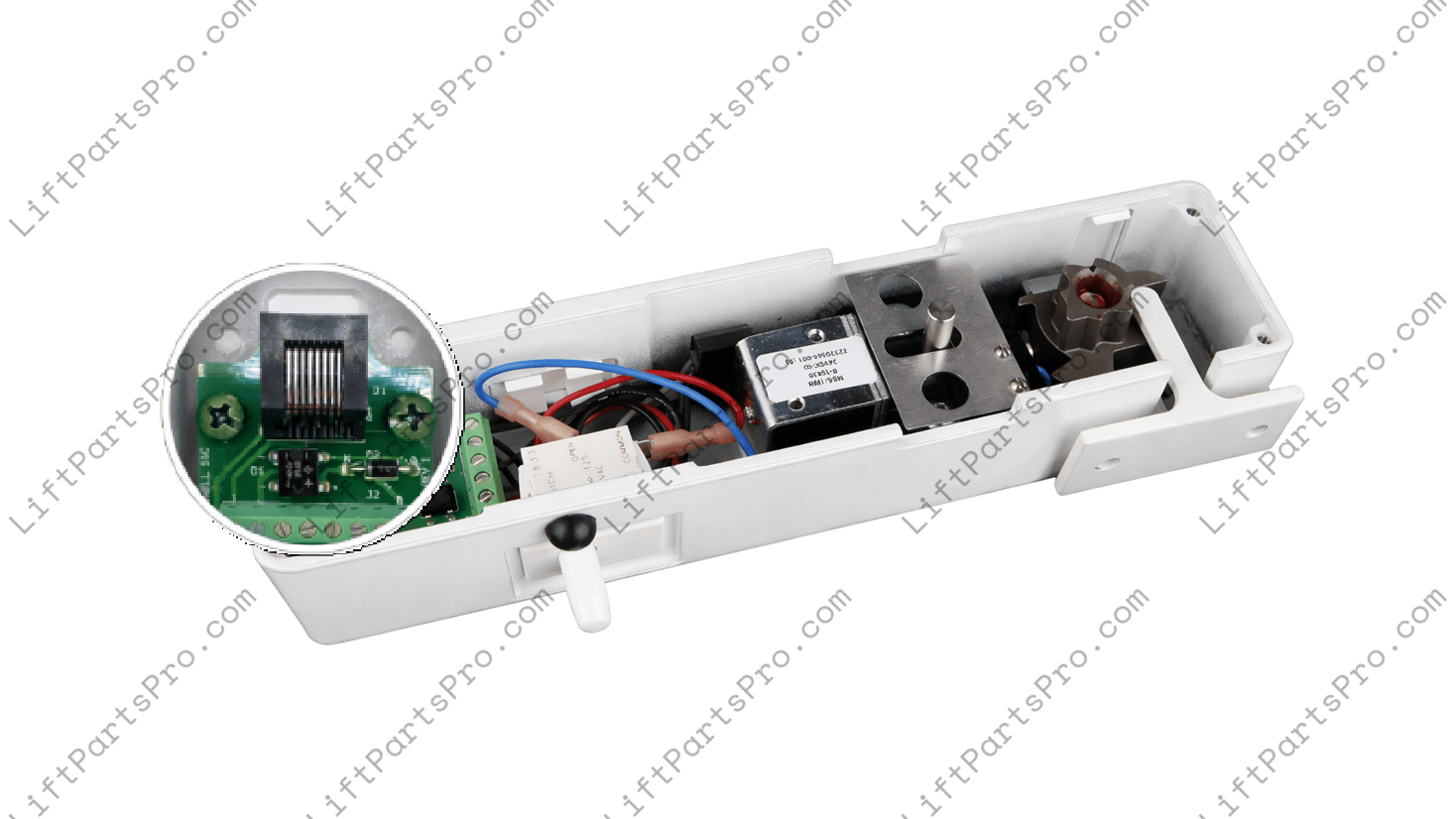

The unit features an integrated CAT5 connection with an RJ45 modular plug/jack interface, making it plug-n-play ready for lifts that were originally equipped with the same connection type.

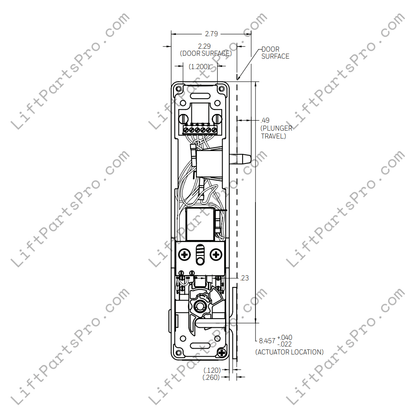

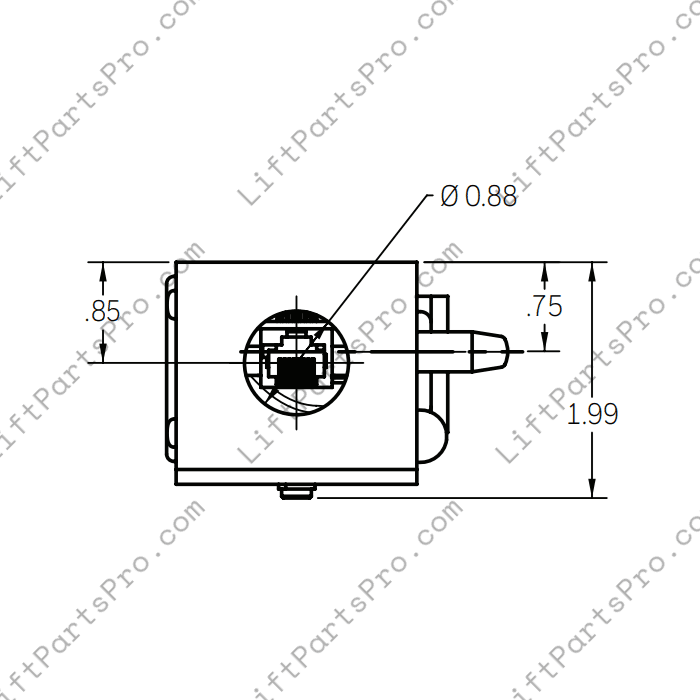

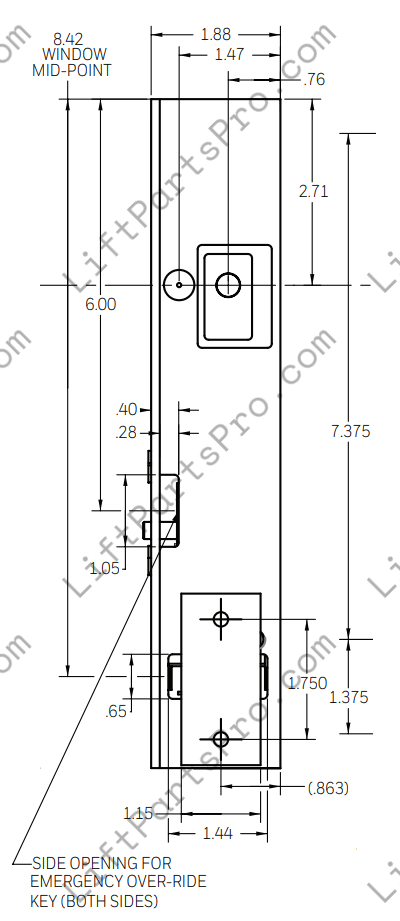

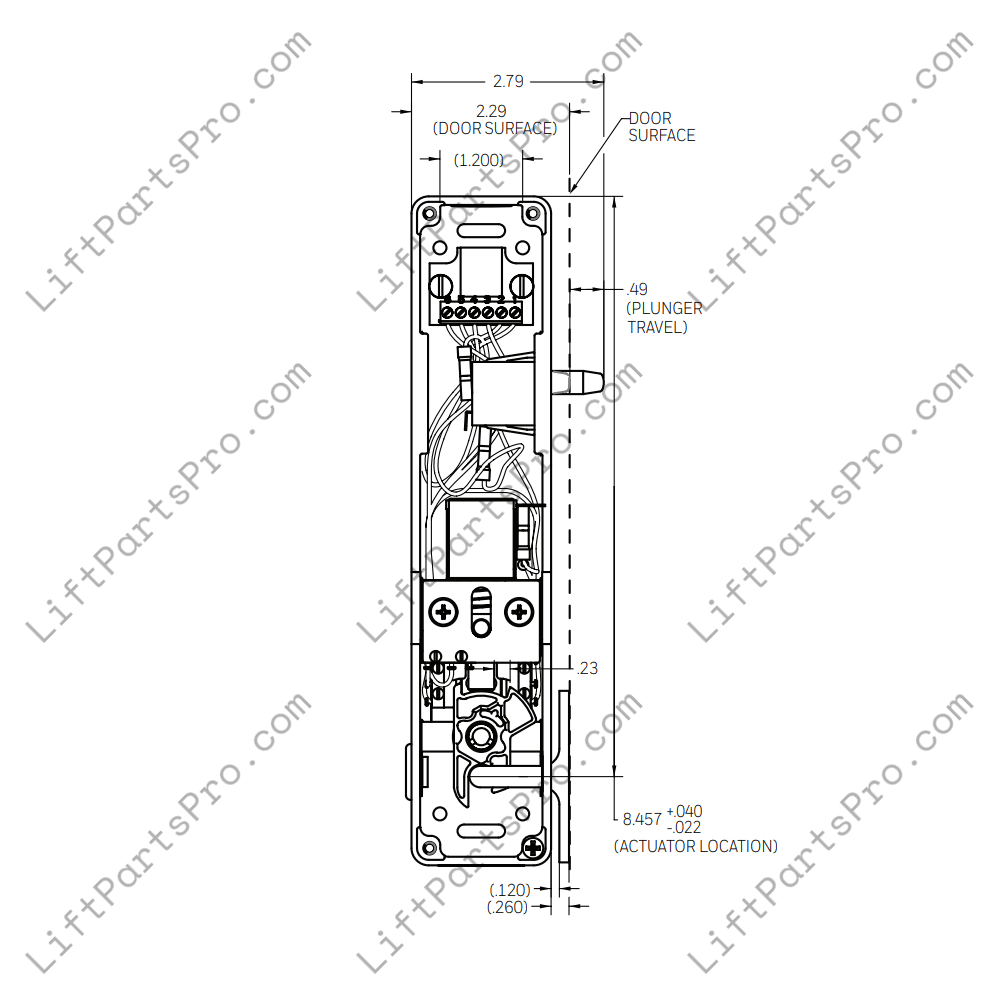

While the electrical interface may match existing systems, the interlock should not be considered a direct dimensional replacement for older locks. Due to differences in physical size and geometry, installation may require adjustments to the lock mounting position, the mortise opening, and the beak (keeper/latch) location to ensure proper engagement. Product images within this listing include dimensional references to assist with planning and installation. If more information is needed, please contact us.

• Replacement elevator door interlock for select Access Industries LEV lifts
• Available configurations: Left-hand and right-hand
• RJ45 modular plug connection using CAT5 interface
• Compatible with systems originally equipped with RJ45 interlock wiring
• Designed to replace legacy ESI-style elevator safety locks
• Replaces locks marked RDI-A-L, RDI-A-R, RDI-H-L5P1, and RDI-H-R5P1
• Interlock style safety door lock for accessibility lifts
• Durable commercial-grade lock construction
• Dimensional differences from legacy locks may require mounting and keeper adjustments

All elevator safety components should be installed and inspected by qualified professionals familiar with accessibility lift systems and applicable safety standards. Proper installation ensures reliable interlock performance and helps maintain the safe operation of the equipment.
