50VA Transformer - Inclinator

Compatible with Inclinator Lifts

50VA Multi-Voltage Control Transformers – Multiple Options Available

This listing offers two reliable 50VA control transformers commonly used in various Inclinator lift systems, including many Elevette models. These transformers are essential for converting primary voltages to lower secondary voltages required for control circuit operation. Choose the version that best suits your voltage input needs.

Available Options:

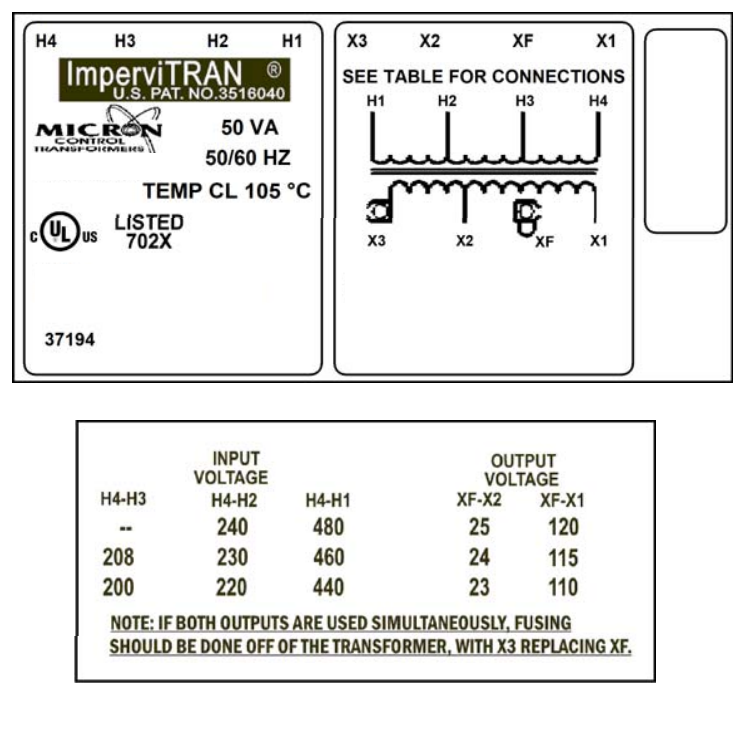

Option 1: Multi-Tap Primary Transformer, Up to 480V Input

• Primary Voltages: 200/220/440, 208/230/460, 240/480
• Secondary Voltages: 23/110, 24/115, 25/120
• Fusing: Secondary Fusing
  Ideal for installations requiring flexible input voltage options or compatibility across multiple regional electrical standards.

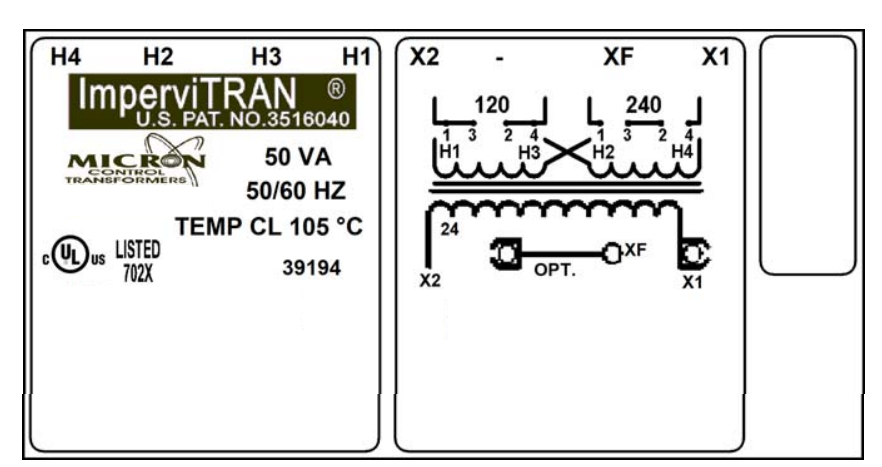

Option 2: Dedicated 120X240V Primary Transformer

• Primary Voltage: 120X240
• Secondary Voltage: 24
• Fusing: Secondary Fusing
  Perfect for applications with fixed 120V or 240V input sources and needing a simple 24V output.

Note: This may not be a plug-n-play solution for obsolete Inclinator transformers. These parts are intended for use by qualified technicians familiar with lift system repairs. Please use the photo diagram to confirm compatibility with your specific lift model before ordering.
