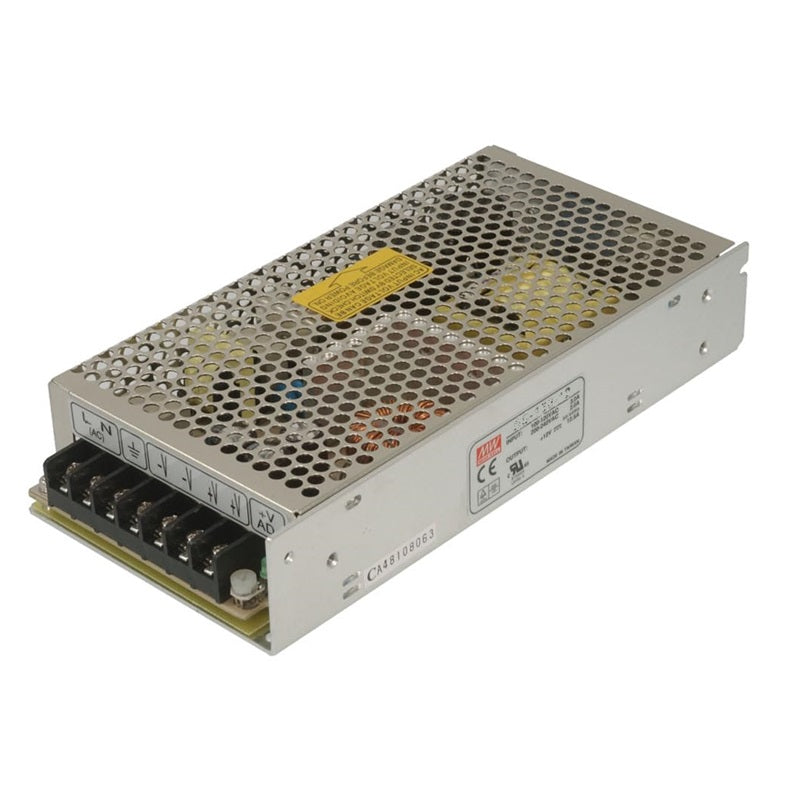

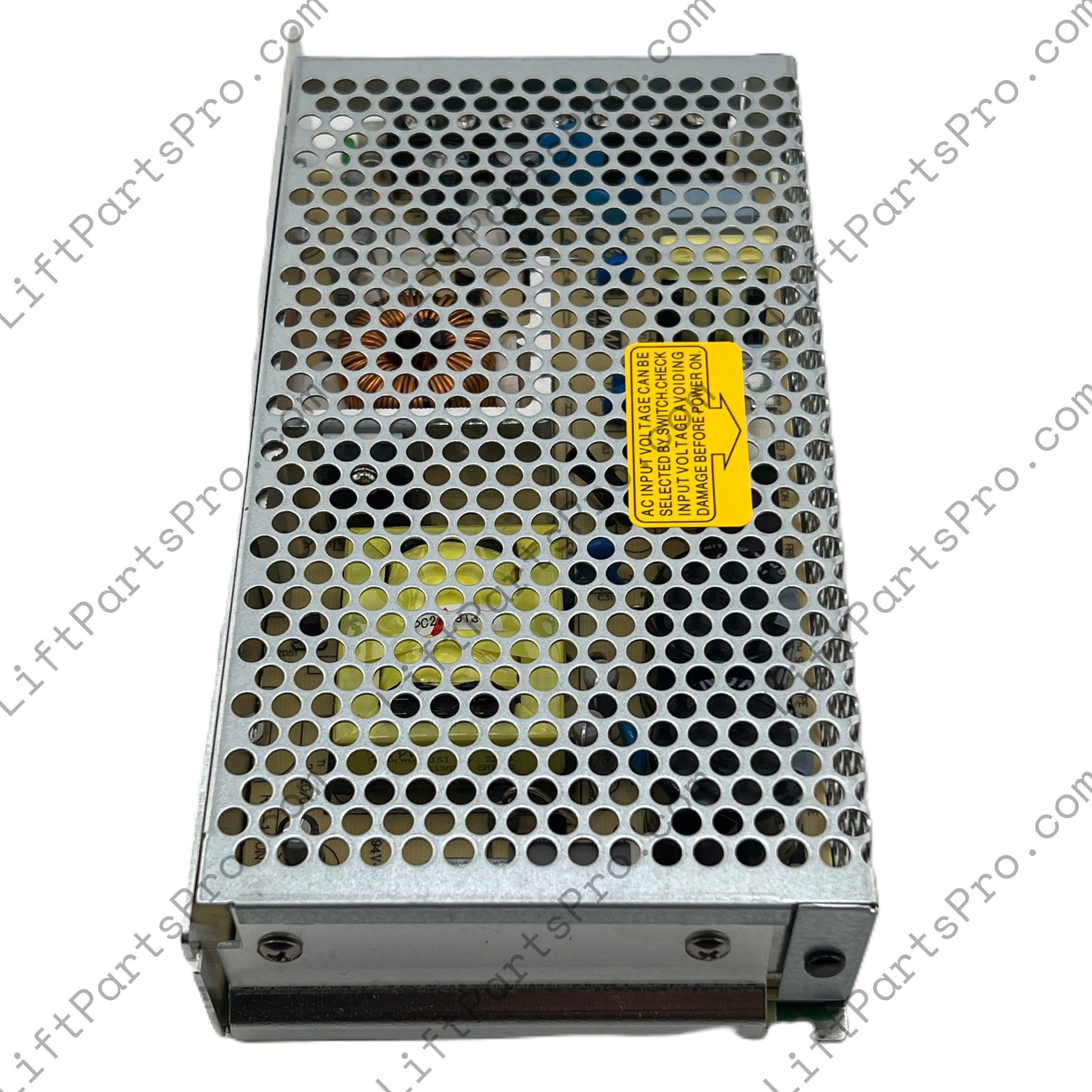

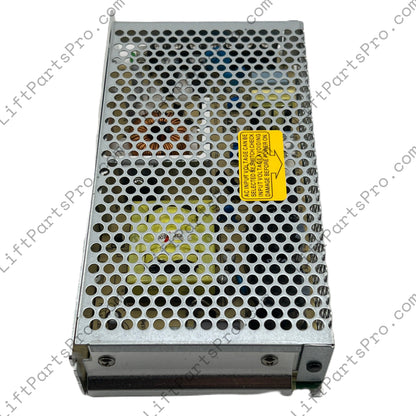

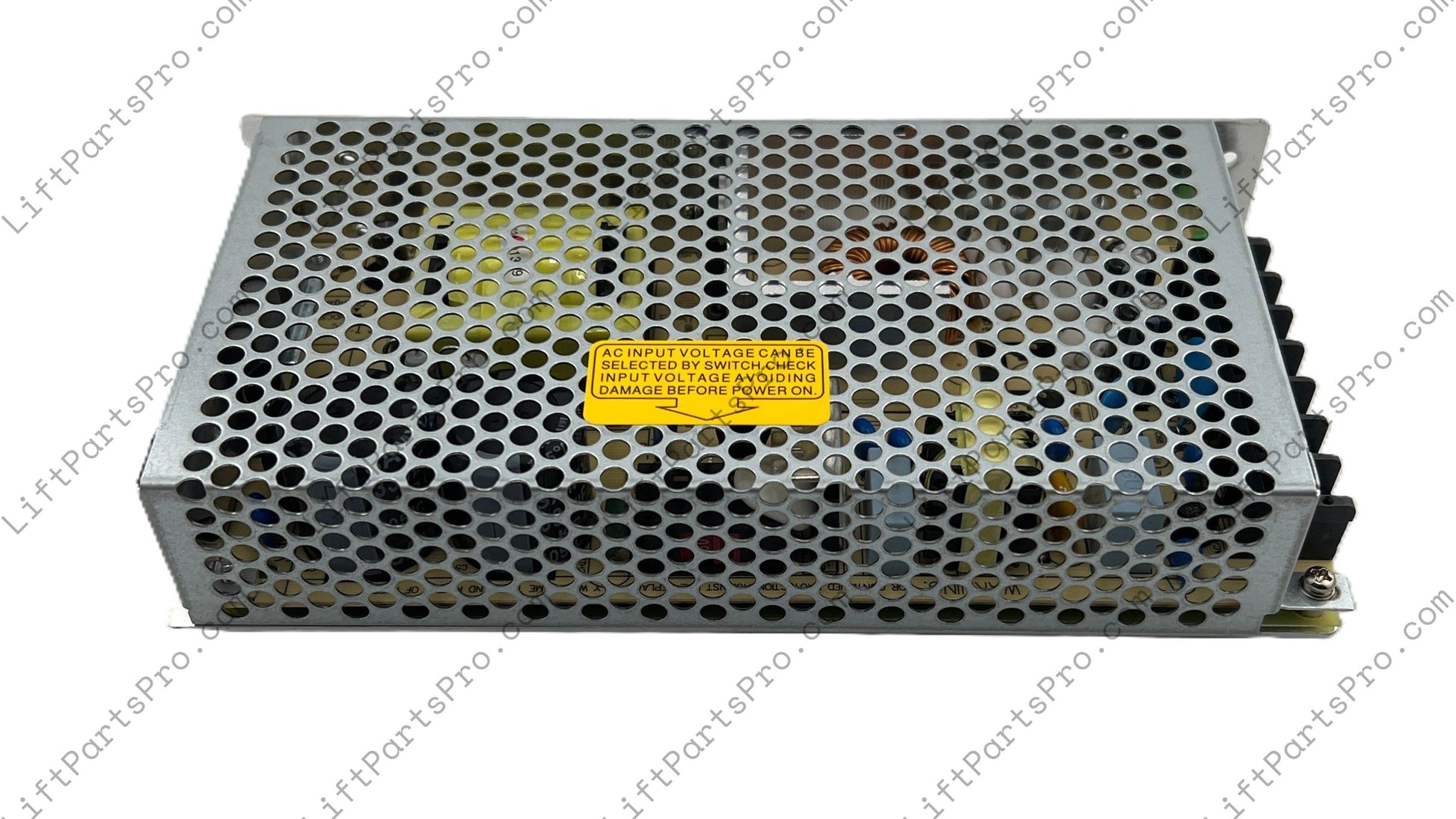

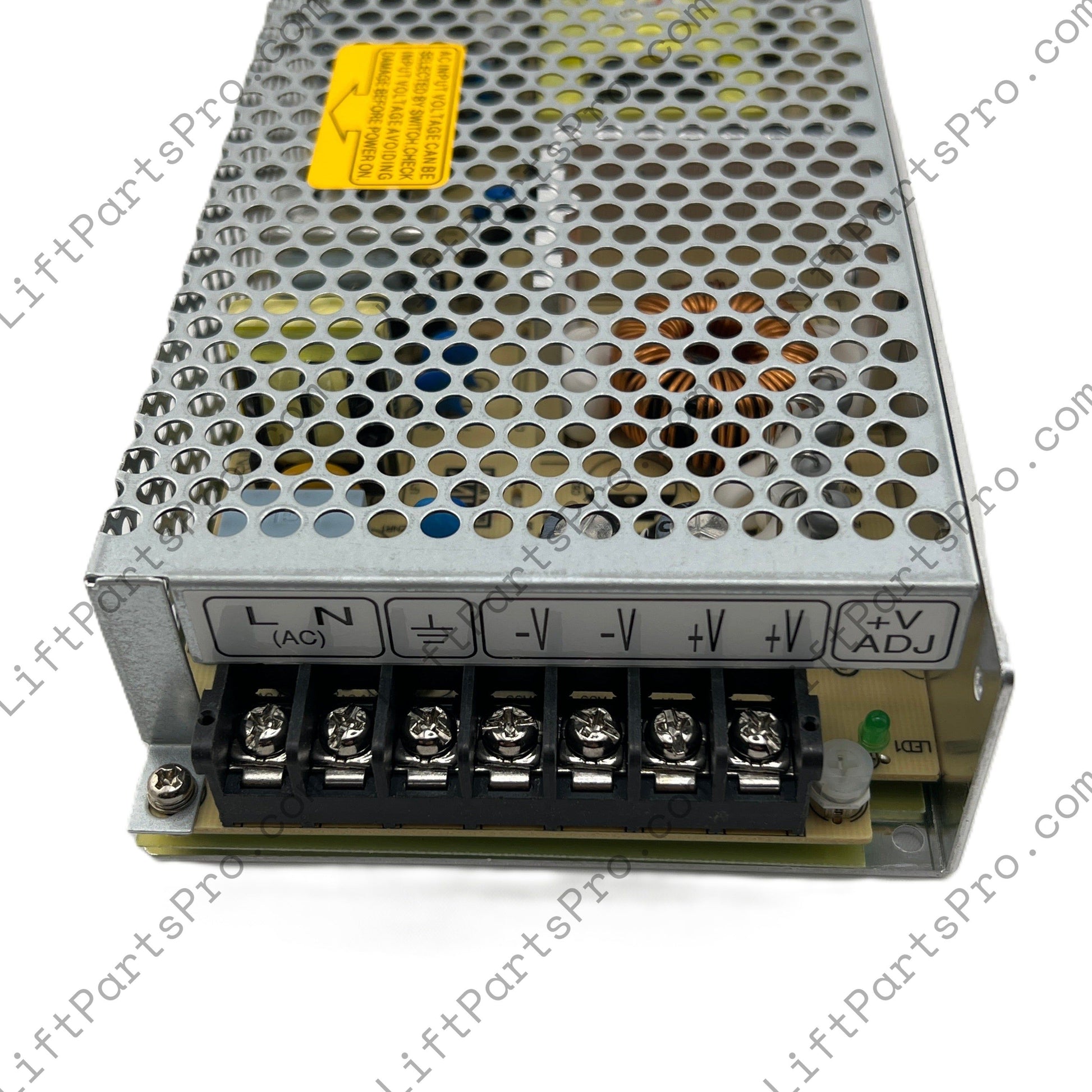

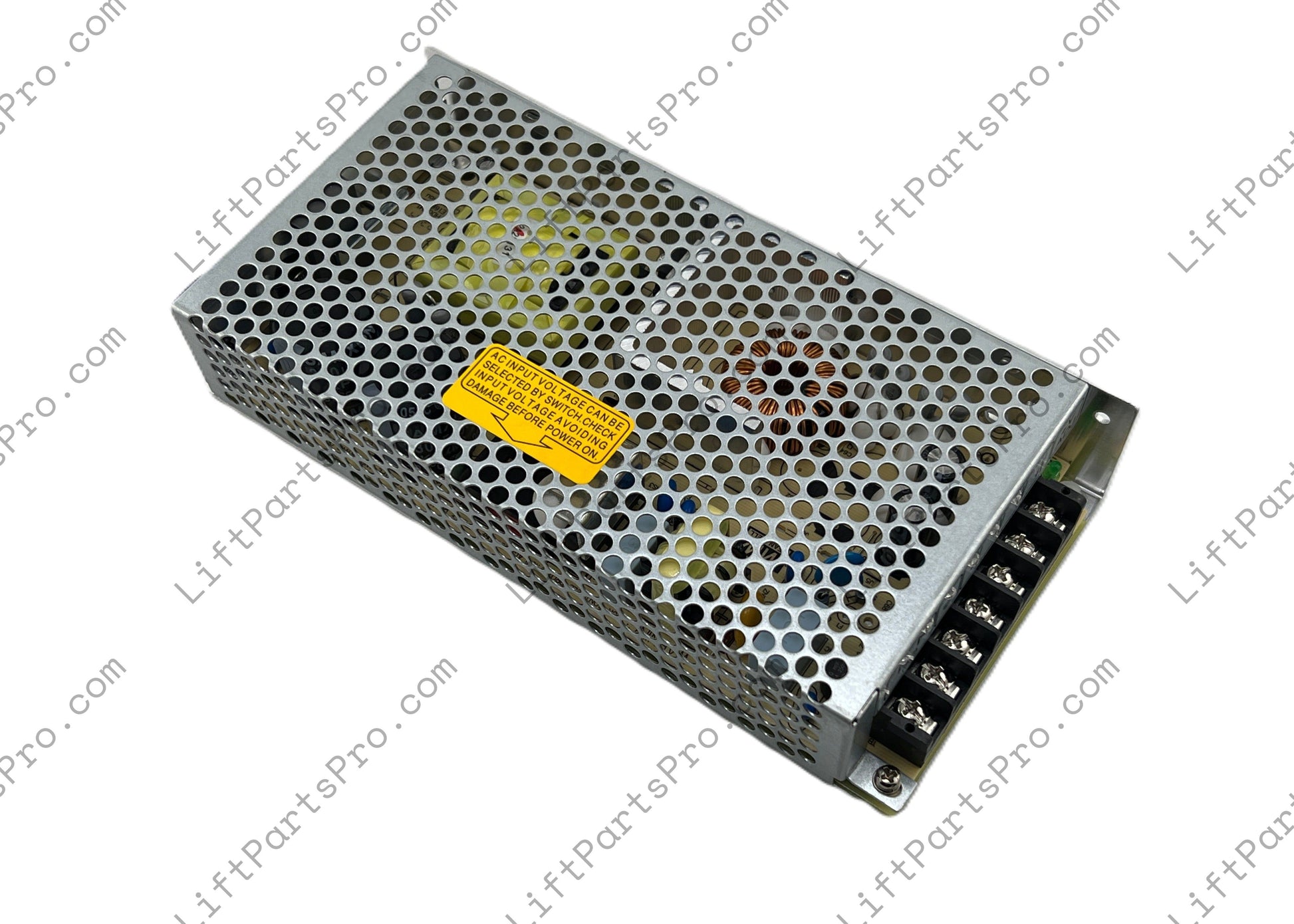

24VDC Enclosed Power Supply Board - Garaventa Genesis

RS-150-24 power converter for select Garaventa Genesis lifts like the GSL-1-3, the Xpress II, and other wheelchair lifts from the HY-US-OP series. Replaces 23313R-A and 13512R.

Product Overview:

This enclosed power supply is designed to provide a stable 24V DC output at up to 6.5A, making it suitable for various lift brands. It is commonly found in Garaventa/Genesis lifts, including a variety of GSL-1-3, HY-US-OP, and Xpress II models. Its robust construction and reliable performance ensure consistent operation in demanding environments.

Key Features:

• High Efficiency: Achieves up to 86% efficiency, reducing energy consumption and heat generation.
• Wide Input Voltage Range: Supports 88-132V AC or 176-264V AC input, selectable via switch, accommodating various power systems.
• Built-in Protections: Includes safeguards against short circuits, overloads, and over-voltages, enhancing safety and reliability.
• Cooling by Free Air Convection: Designed for efficient heat dissipation without the need for additional cooling systems.

Specifications:

• Output Voltage: 24V DC
• Output Current: Up to 6.5A
• Output Power: 150W
• Input Voltage: 88-132V AC / 176-264V AC (switch selectable)
• Operating Temperature: -25°C to +70°C
• Dimensions (L x W x H): 199mm x 98mm x 38mm

This power supply is a dependable choice for applications requiring a stable 24V output, particularly in lift systems where reliability is crucial.
