24VDC Brake Solenoid for Porch-Lift Wheelchair Lifts

Compatible with ThyssenKrupp Access Porch‑Lift units using legacy OEM part number 53161.
This 24 V DC heavy-duty brake solenoid restores proper stopping control, ensuring smooth, reliable lifts.

This replacement solenoid replicates PLS VPL OEM 53161 performance with precise 1″ plunger stroke and rugged stainless‑steel plunger. Rated for intermittent-duty operation (25% duty cycle), it draws 1.27 A at 24 V (32 W) and features quick‑connect terminals for fast installation. The compact frame fits cleanly into existing mounts and UL-recognized insulation ensures dependable, compliant operation.

• 24 V DC coil, 18.9 Ω ±5%, drawing 1.27 A (32 W)
• Intermittent‑duty (25% duty cycle) with 1″ plunger stroke
• Stainless‑steel plunger (0.50″ diameter) in durable housing

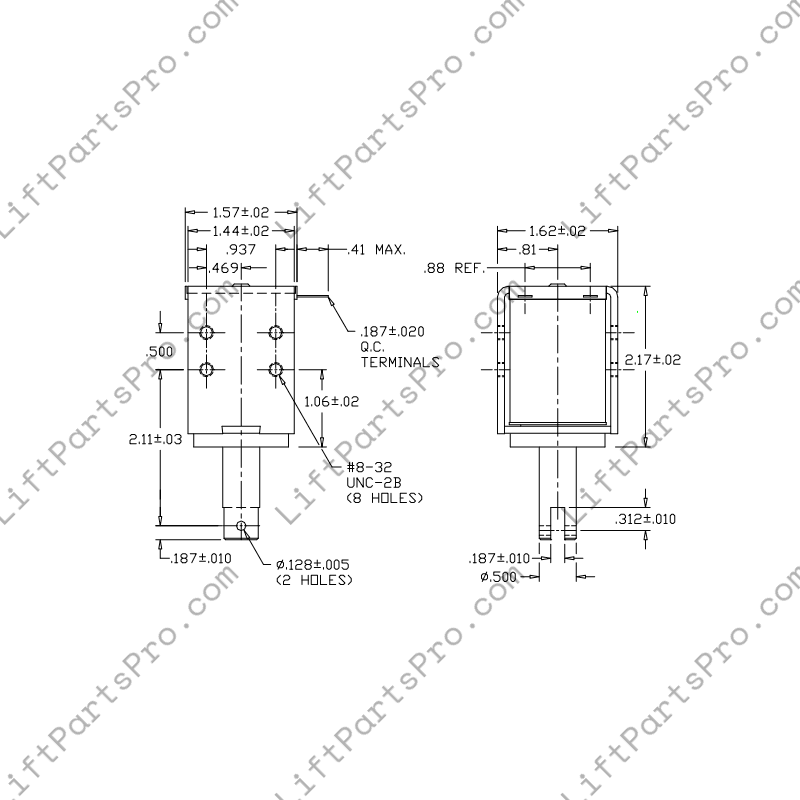

• Frame dimensions: 1.54″ × 1.62″ × 1.57″; mounting via any of eight #8‑32 holes
• Weighs approximately 14.1 oz (plunger 2.4 oz)
• 3/16″ quick‑connect terminals; Class A insulation (105 °C), UL recognized, RoHS compliant

Professional installation recommended. Confirm voltage requirements and ensure lift is powered off before installing.
