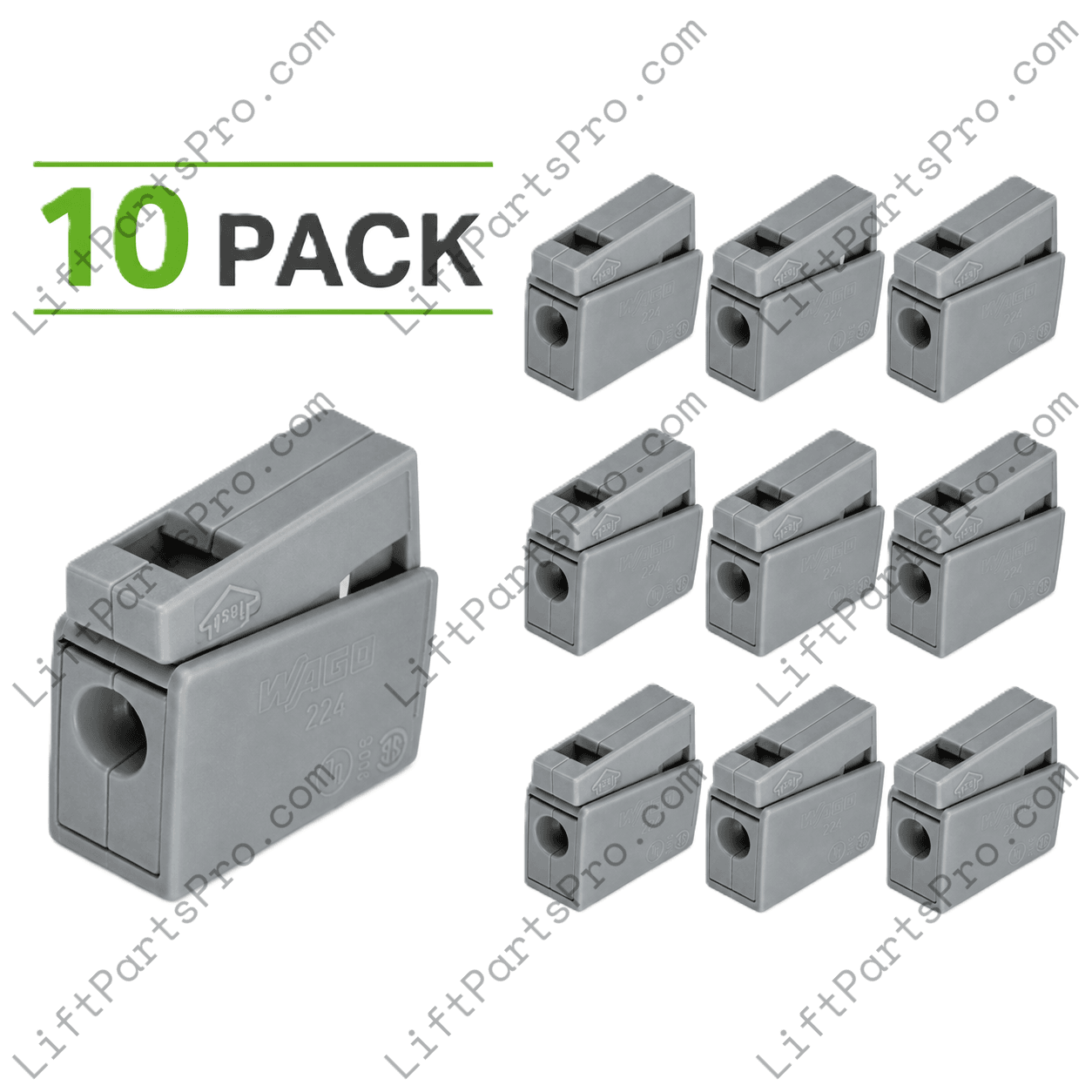

24A Push Button Lighting Connector for 14-20 AWG Wire (10 Pack)

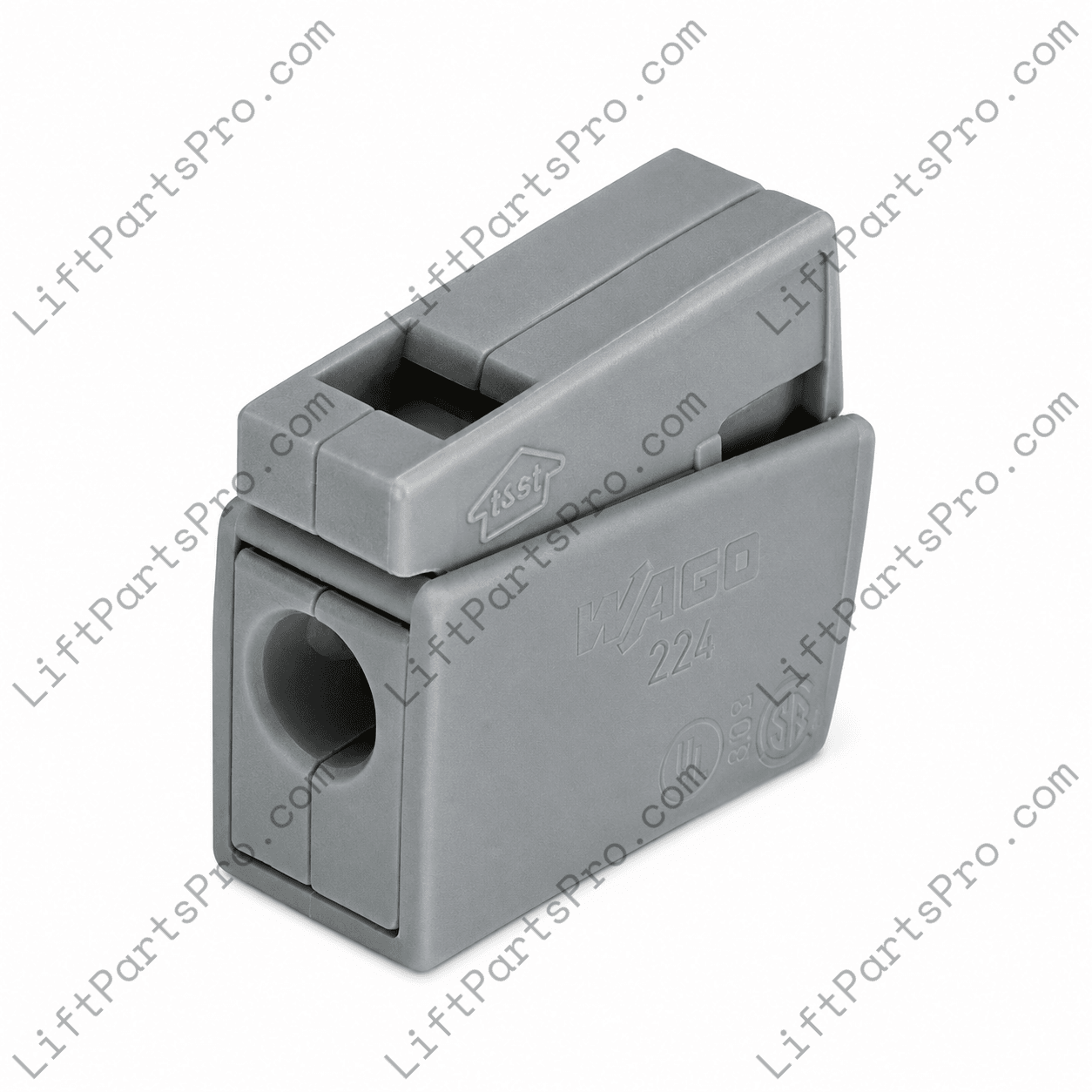

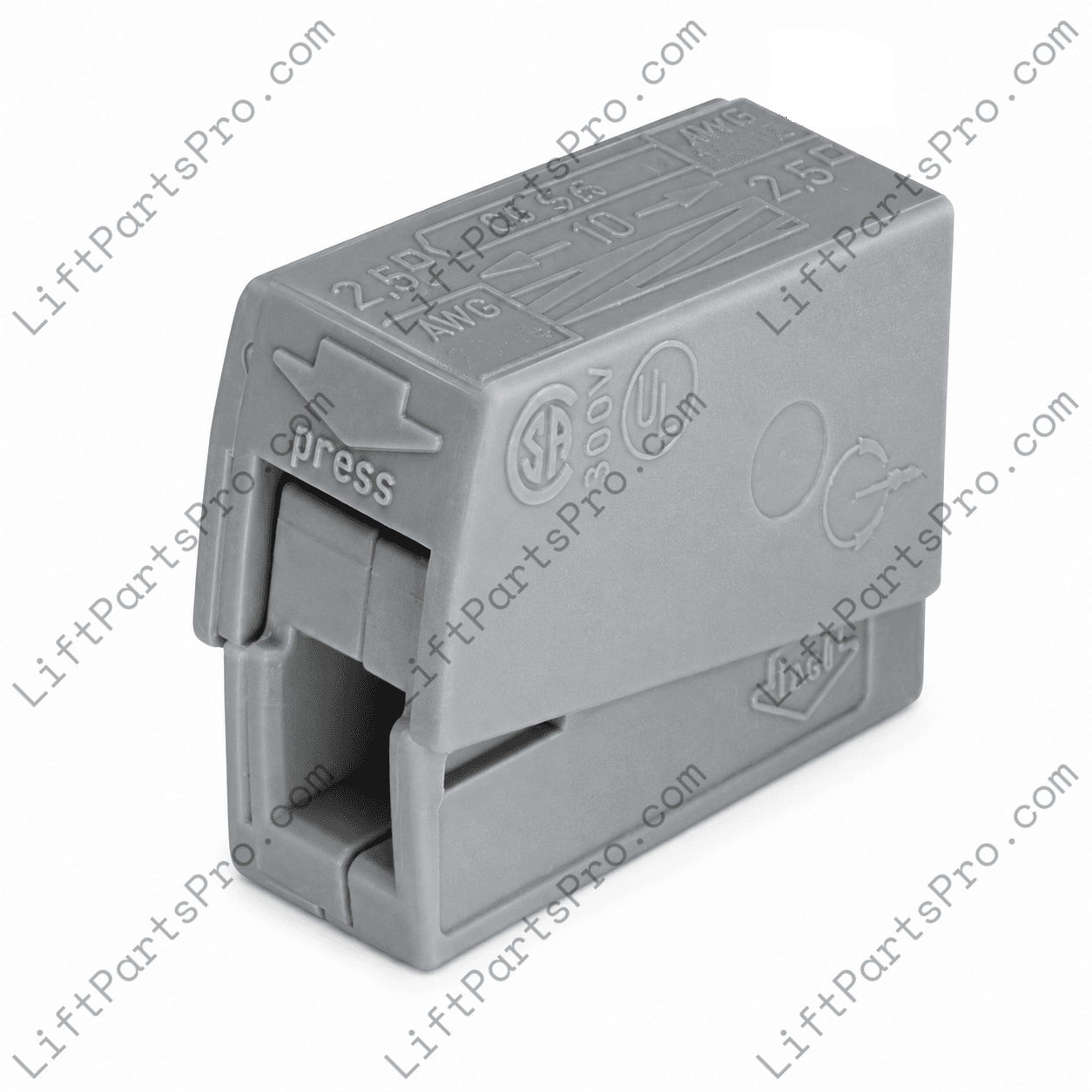

This compact lighting connector block is designed to create a secure connection between solid installation wiring and stranded or fine-stranded conductors. The push-button design allows fast, tool-free termination on the fixture side while maintaining a reliable spring-clamp connection. Commonly used in lighting assemblies, electrical enclosures, control systems, and other applications requiring transitions between solid and flexible wiring.

Its compact footprint makes it well suited for installations where space is limited while providing dependable electrical performance in commercial, industrial, and residential equipment.

• 1-pole lighting/fixture connector
• Color: Gray
• Installation side connection technology: PUSH WIRE®
• Lighting side connection technology: CAGE CLAMP®
• Conductor connection points: 2 (1 installation side, 1 lighting side)
• Installation side accepts solid copper conductors only
• Installation side wire range: 14–12 AWG (1.0–2.5 mm²)
• Lighting side accepts solid or fine-stranded conductors
• Lighting side wire range: 20–16 AWG (0.5–2.5 mm²)
• Wiring direction: Side-entry
• Strip length: 0.35–0.43 in. (9–11 mm)
• Rated current: 24 A
• Rated voltage: 400 V
• Rated impulse voltage: 4 kV
• Maximum continuous operating temperature: 221°F (105°C)

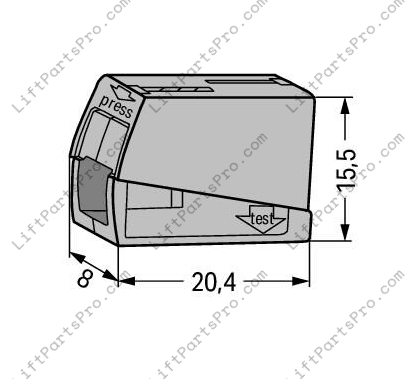

• Dimensions: 0.81 in. L × 0.33 in. W × 0.61 in. H (20.5 mm × 8.5 mm × 15.5 mm)

Proper installation and inspection by qualified personnel help ensure reliable electrical connections and long-term equipment performance. Always verify compatibility with the intended application and applicable electrical requirements before installation.
