120VAC 10A DPDT 8-Pin Ice Cube Relay for NWOV Wheelchair Lifts

This plug-in electromechanical relay is designed for electrical switching applications within wheelchair lift control systems. Featuring a double-pole, double-throw (2PDT) contact configuration, it provides two independent sets of changeover contacts for controlling electrical circuits.

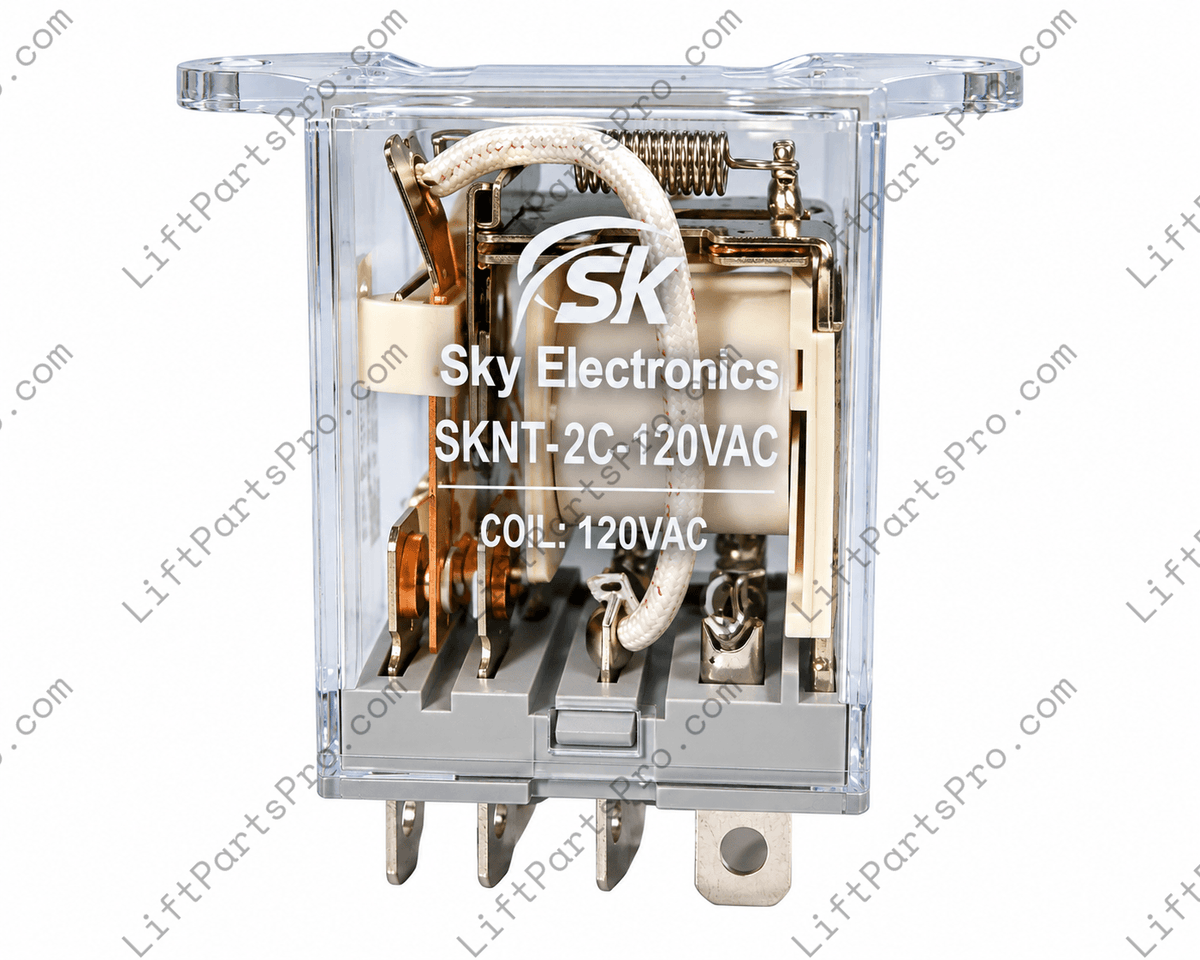

The relay features a transparent protective housing that allows visual inspection of its internal components and mechanical operation. Its 8-pin plug-in configuration provides a removable connection to a compatible relay socket, making it suitable for replacement applications in existing lift control assemblies.

Commonly found in National Wheel-O-Vator (NWOV) vertical platform lifts, including the PCDE72 series, this relay may also be suitable for other NWOV wheelchair lift models requiring the same coil voltage, contact configuration, pin arrangement, and electrical ratings.

Specifications:

• Product Type: Electromechanical Ice Cube Relay
• Relay Configuration: DPDT (Double-Pole, Double-Throw)
• Contact Arrangement: 2 Form C
• Coil Voltage: 120VAC
• Contact Rating: 10 Amps
• Pin Configuration: 8-Pin
• Mounting Style: Plug-In
• Housing: Transparent Protective Enclosure
• Compatible Equipment: National Wheel-O-Vator Vertical Platform Lifts
• Known Application: NWOV PCDE72 Wheelchair Lift
• Additional Applications: Other NWOV VPL Models with Matching Relay Requirements
• Included Components: Relay Only (Socket Not Included)

Proper installation of replacement electrical components is essential for maintaining the intended operation and reliability of accessibility equipment. All relay replacements should be performed by qualified service personnel in accordance with applicable electrical standards and equipment manufacturer requirements.
