12 VDC Tubular Brake Solenoid for Carrier‑Lift IPL

This solenoid brake actuator is a modern replacement for select Carrier Lift Inclined Platform Lifts, ideal replacement for legacy #93082.

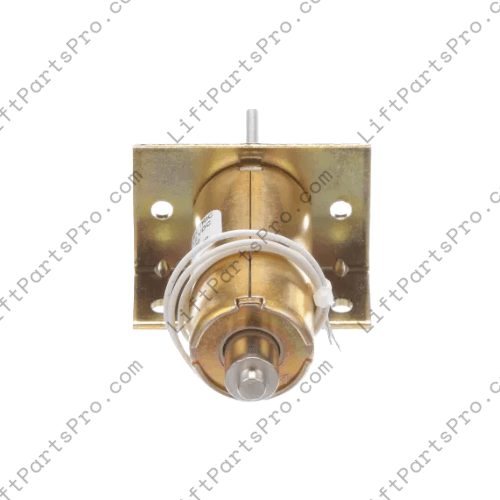

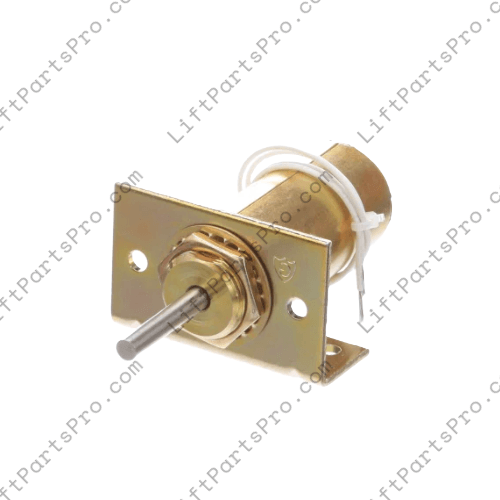

This solenoid from Guardian Electric is designed to serve as the brake‑actuator mechanism in many inclined platform lifts (IPLs) manufactured by Carrier‑Lift.
It replaces the legacy actuator part #93082, offering a modern, direct‑drop replacement.

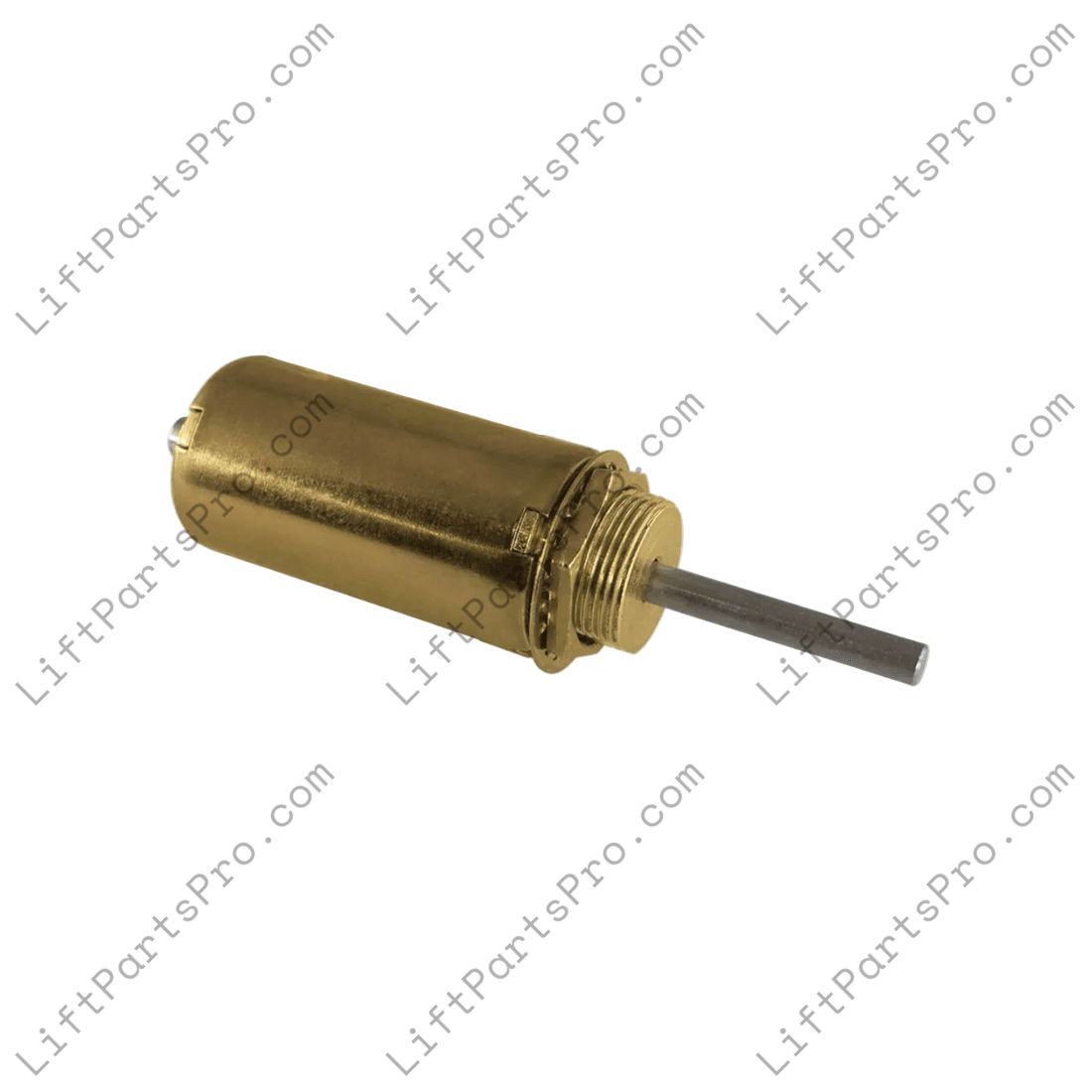

The tubular construction allows for compact installation and reliable mechanical stroke when used to engage or release the braking mechanism of the lift platform. Suitable for maintenance, retrofits, or spares in mobility lift systems where the original brake actuator is worn, failed or obsolete.

Specifications

• Supply Voltage: 12 VDC (continuous duty)
• Coil Resistance: ~5.3 Ω
• Current Draw: ~424 mA when engaged
• Model Series: Tubular‑push type (TP8×16 family)
• Stroke/Plunger: Designed for mechanical brake engagement within height constraints common to IPL brake systems

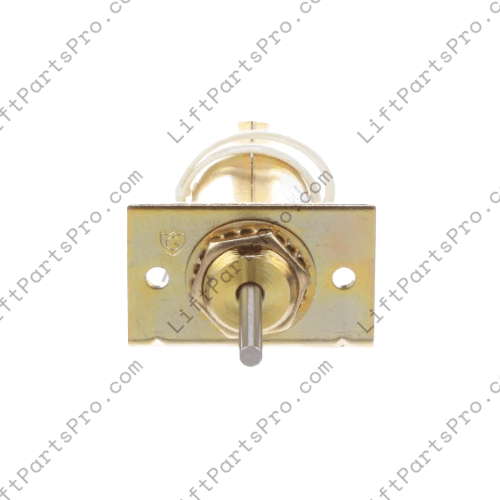

• Mounting: Standard solenoid mounting lug with hex nut and lockwasher
• Compliance: RoHS‑compliant and UL recognized as component
• Replacement Fit: Compatible with carriers using the legacy #93082 actuator (verify mechanical dimensions, stroke, and mounting before installation)

This solenoid actuator is engineered to perform reliably in lift brake applications and is recommended to be installed by qualified personnel familiar with mobility‑lift safety systems. Proper installation and alignment ensure safe and effective operation.
