Symmetry Residential Elevator Power Supply

Compact DIN‑rail mounted DC power supply designed for reliable operation in elevator control systems. Its slim plastic form supports tight installations with consistent performance across color variants.

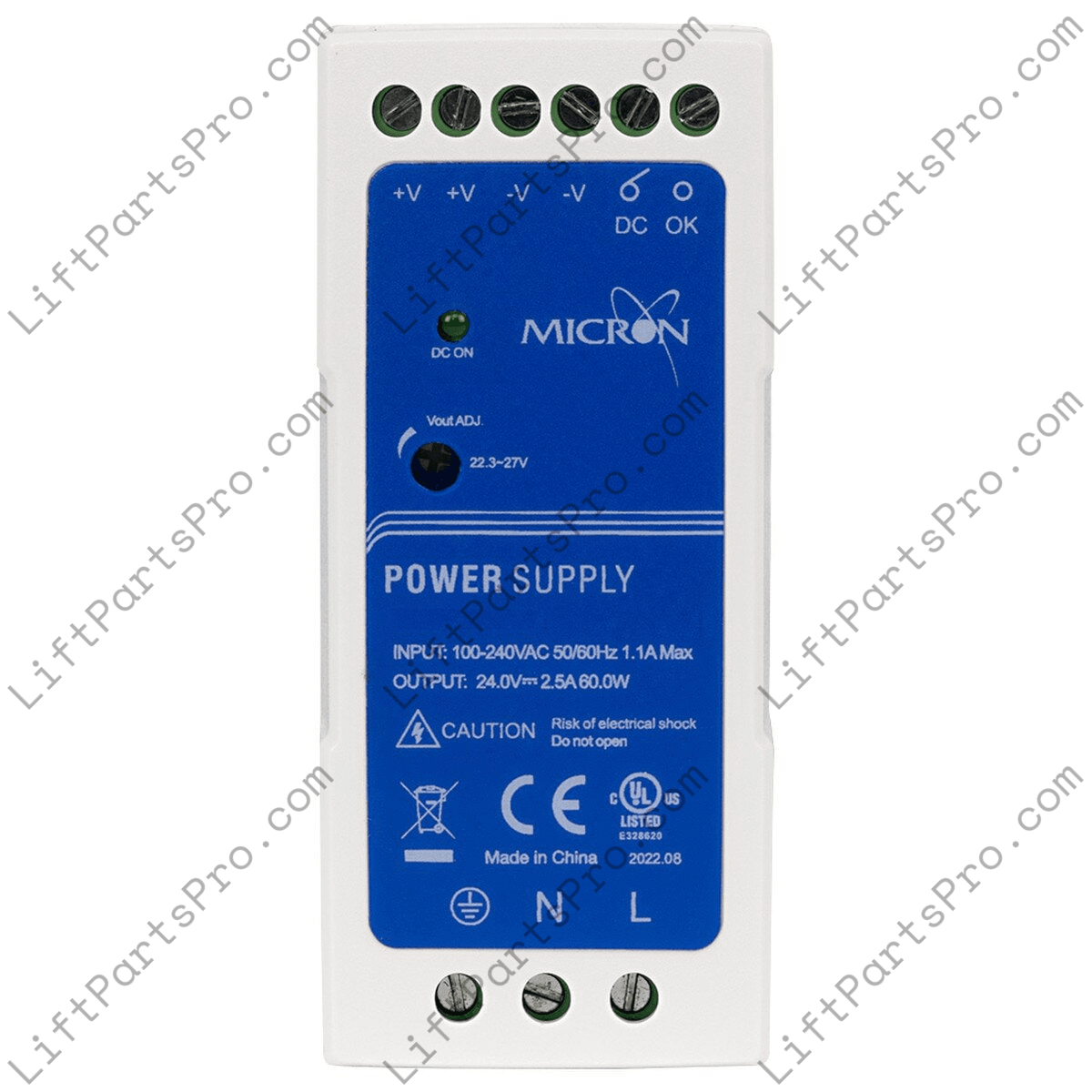

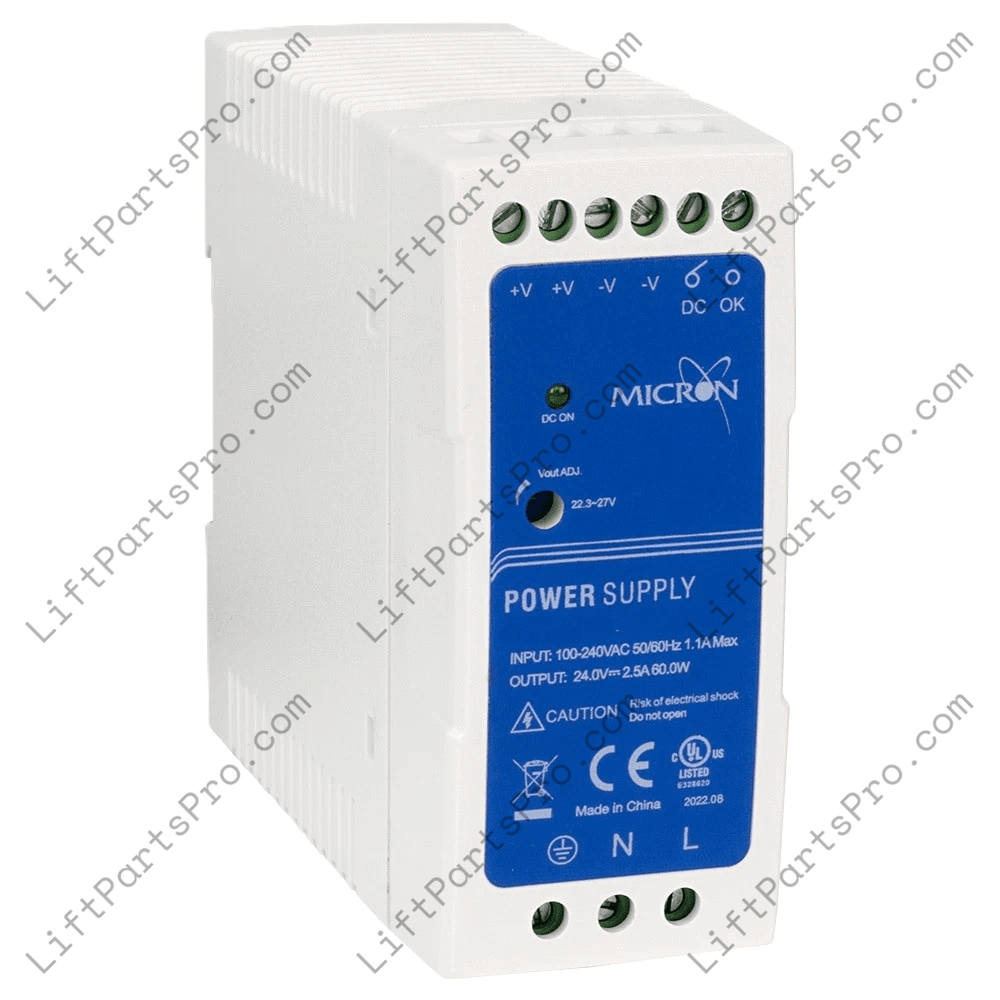

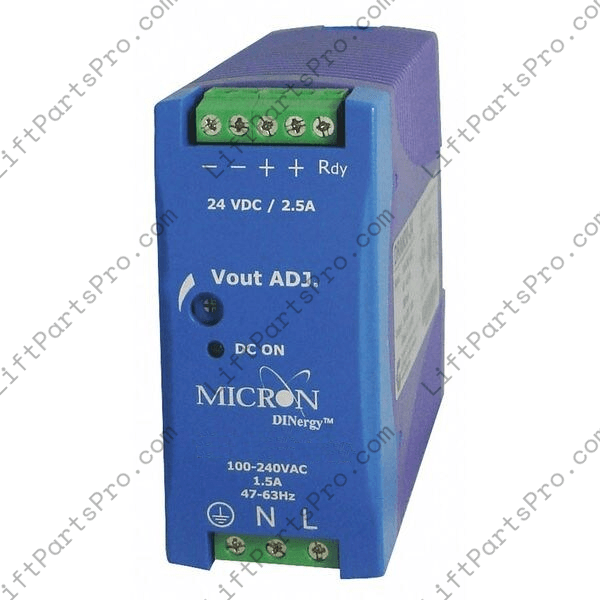

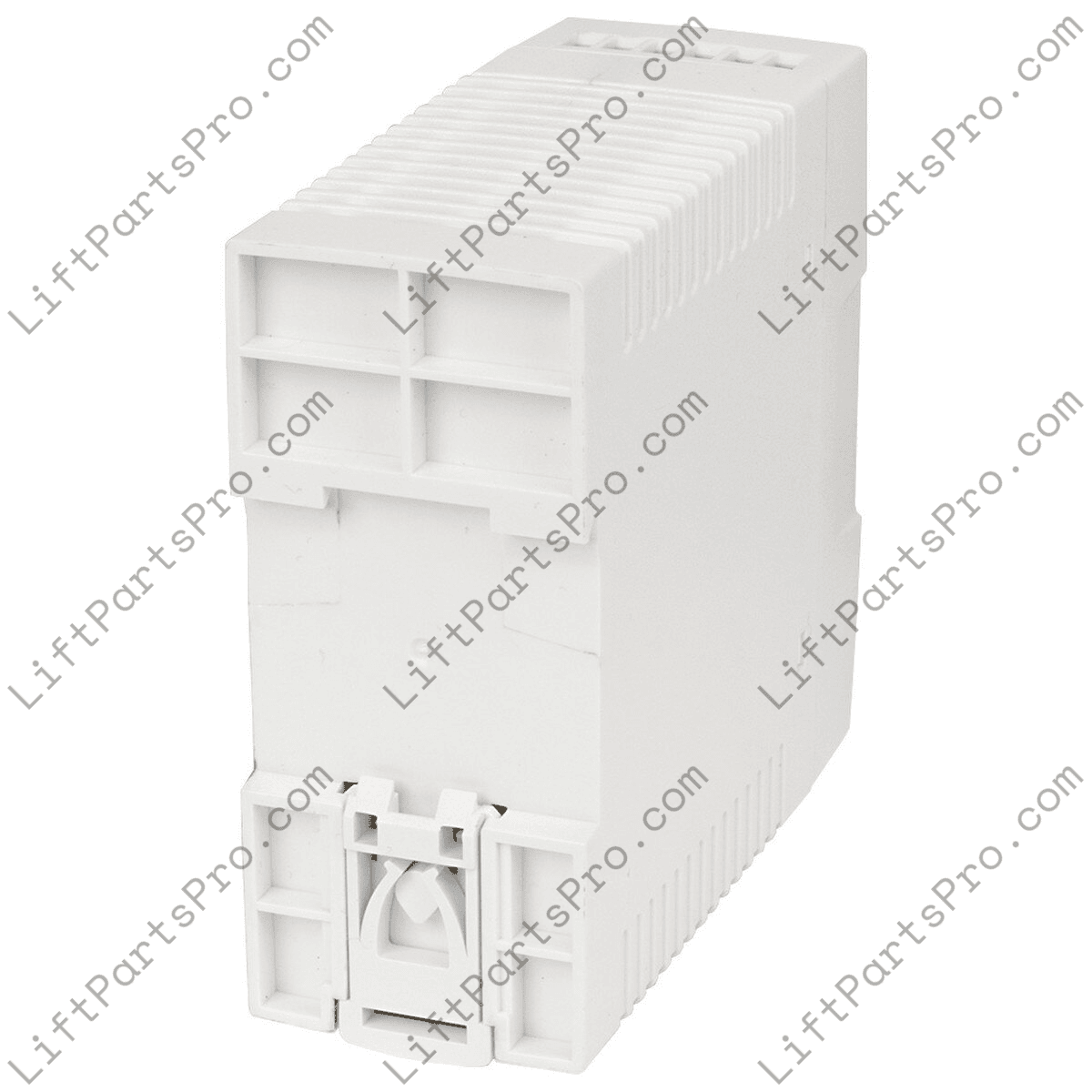

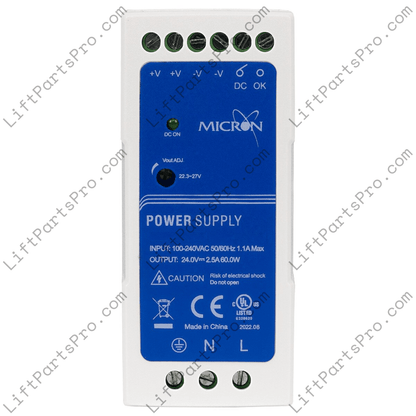

This slim-line, plastic-housed DIN‑rail DC transformer is engineered to deliver a regulated 24 VDC output at up to 2.5 A (60 W)--like those found in Symmetry lifts. Lightweight and narrow (approx. 40.5 mm wide), it's built for efficient integration into elevator controller assemblies. The unit accommodates standard AC input ranges and is suitable for diverse installation environments. Note that housing color may vary—historical units typically appear in purple/blue, while recent iterations feature a white and blue design.

Specifications

• Output: 24 V DC, up to 2.5 A (60 W)
• Input Voltage Range: 85–264 VAC, single-phase (50/60 Hz)
• Mounting: DIN‑rail configuration, slim profile (approx. 40.5 mm width)
• Enclosure: Plastic housing
• Class: Class 2 power supply
• Weight: Approximately 0.80 lbs (≈ 0.36 kg)

This power supply is built to uphold performance and compatibility in residential elevator controls. Proper installation by qualified technicians is essential to ensure safe and reliable operation.
