National Wheel-O-Vator Replacement Gate Opener Arm

Compatible with many legacy FAAC swing gate operators and select National Wheel-O-Vator (NWOV) VPL systems, replacing OEM #V1049.

Hydraulic gate opener designed as a reliable replacement for outdated swing operators.

This National Wheel-O-Vator gate operator delivers powerful hydraulic performance for swing gate and door systems, commonly used in wheelchair lift (VPL) enclosures and similar access control setups. While this unit is a proven replacement for many older FAAC openers, installation may require drilling new mounting holes or repositioning the arm to ensure proper alignment. Ideal for medium-traffic environments, it provides smooth, consistent motion with thermal motor protection and robust thrust output.

• Input voltage: 115 VAC (+10% -6%) or 230 VAC (+6% -10%)
• Power: 220 W
• Current draw: 2A (115V) / 1A (230V)
• Motor type: Asynchronous single-phase
• Rod stroke: 9.8 in (250 mm)
• Opening angle/time: 90° in approx. 12 seconds
• Hydraulic pump flow rate: 1 l/min
• Thrust force: 1124 lbf (500 daN)
• Minimum gate/door leaf width: 7.5 ft (2.3 m)
• Maximum gate/door leaf width: 10 ft (3 m)
• Maximum leaf weight: 900 lb (410 kg)
• Rated usage: 55 cycles per hour
• Operating temperature range: 4°F to 131°F (-20 °C to +55 °C)
• Built-in motor thermal protection: 248 °F (120 °C)
• Protection class: IP55
• Unit weight: 14.3 lb (6.5 kg)
• Dimensions: 37.7 x 3.3 x 2.4 in (959 x 85 x 61 mm)

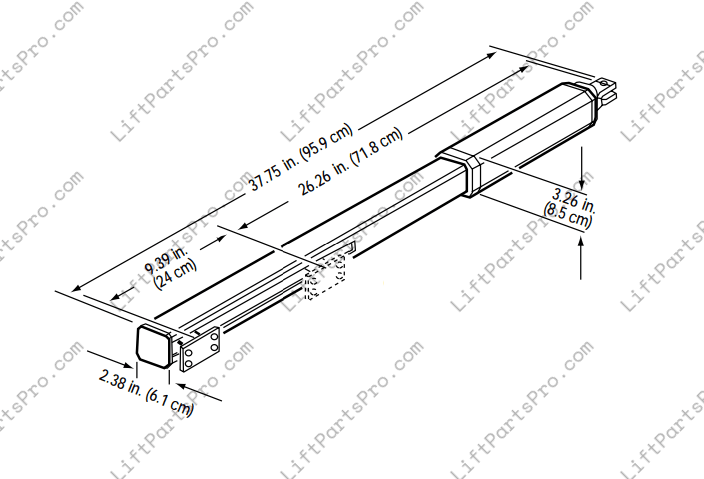

Installation may not be drop-in compatible for all setups; verify mounting compatibility and consider adjustments to arm position and fastener locations. Please take note of mounting dimensions in photos before ordering.
