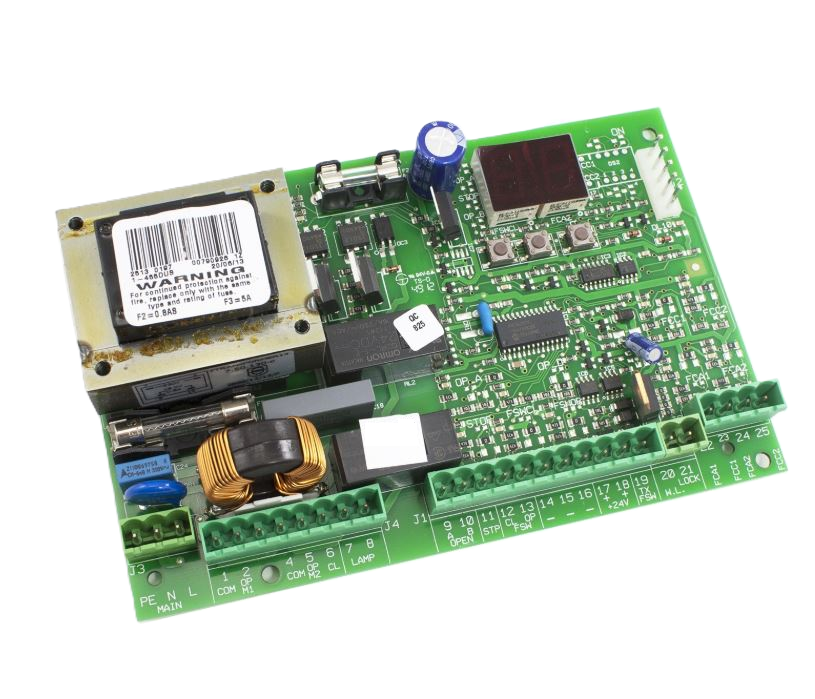

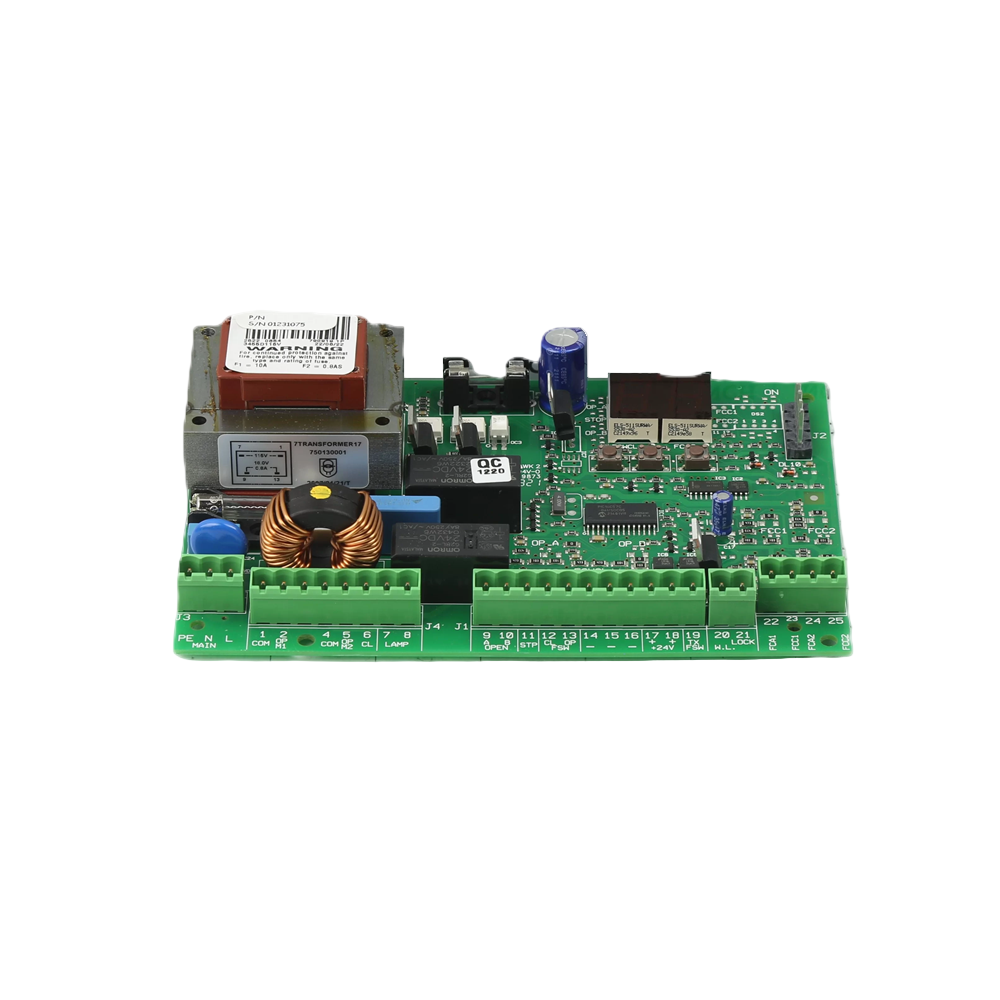

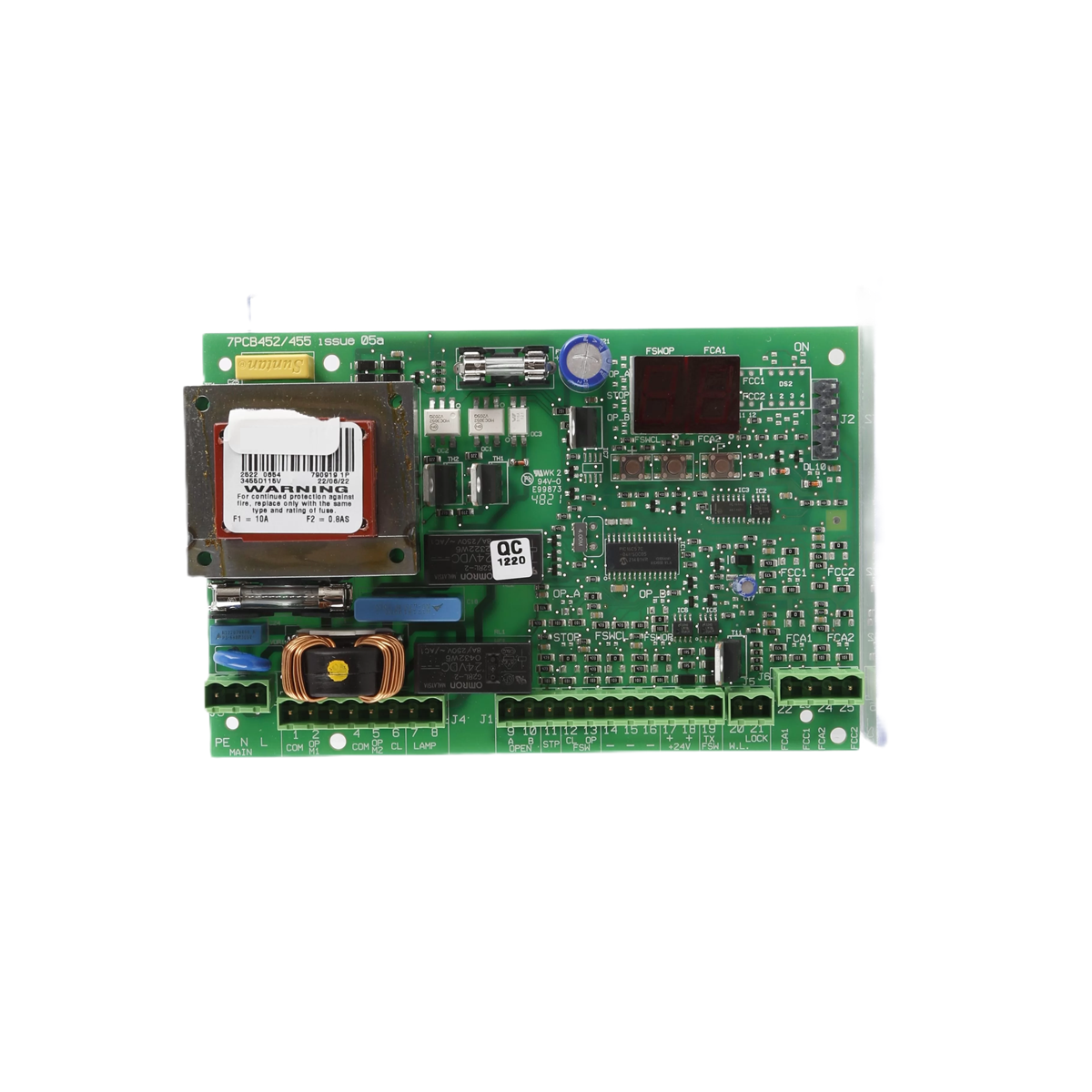

FAAC 455D Control Board for National Wheel-O-Vator Gate Operators

High‑quality FAAC 115V control board, compatible with FAAC gate closers used in NWOV wheelchair platform lifts (VPLs).

This FAAC 115V control board is a direct replacement automation unit designed for National Wheel‑O‑Vator vertical platform lifts (VPLs) which use FAAC gate operators. It delivers reliable, programmable gate control, enabling proper operation of single leaf or bi‑parting gates (or gate panels) integral to many lift platforms. Built with eight function logics, adjustable thrust force, safety device integration, and slow‑down features, it is ideal for repair or upgrade of older systems.

Compatible with FAAC operator models such as 400, 402, 412, 415, 422, 750, 760 (115 VAC / single phase variants). For Wheel‑O‑Vator units using these models, this board restores full automation operability when factory board is worn, fails, or needs updating.

Designed for both residential and commercial lift installations, this unit supports inputs for safety devices (photocells), closing timers, opening/closing slow‑downs, and overlapping gate/panel delays. It is the Pre‑UL version, meaning UL‑compliance depends on installation of monitored safety devices and correct configuration (e.g. fail‑safe settings).

Specifications

• Input Voltage: 115 VAC (+10% / −6%)
• Idle / control board power draw: ~10 W
• Motor Maximum Load: 800 W
• Accessory (low‑voltage auxiliary outputs) Maximum Load: 500 mA
• Electric Lock Output Maximum: 15 VA
• Ambient Operating Temperature: −4 °F to +131 °F (−20 °C to +55 °C)
• Physical Dimensions (L × D × H): 17.5 × 15.5 × 6.2 in (445 × 393 × 157 mm)
• Protection / Enclosure Rating: NEMA Types 3, 3R, 4, 4X, 12, 13
• Number of Function Logics: 8 programmable modes / operating logics
• Overlap / Delay Settings: opening/closing delays for overlapping gates / panels selectable
• Safety Features: photocell fail‑safe, built‑in closing timer, opening & closing slow‑down adjustments

This replacement board is built to the quality standards expected in gate control systems, and when installed correctly it can restore reliable and safe operation to Wheel‑O‑Vator lifts using compatible FAAC automation units. Please ensure installation is carried out by qualified technicians, and that any safety devices are properly configured to maintain all applicable codes and standards.
